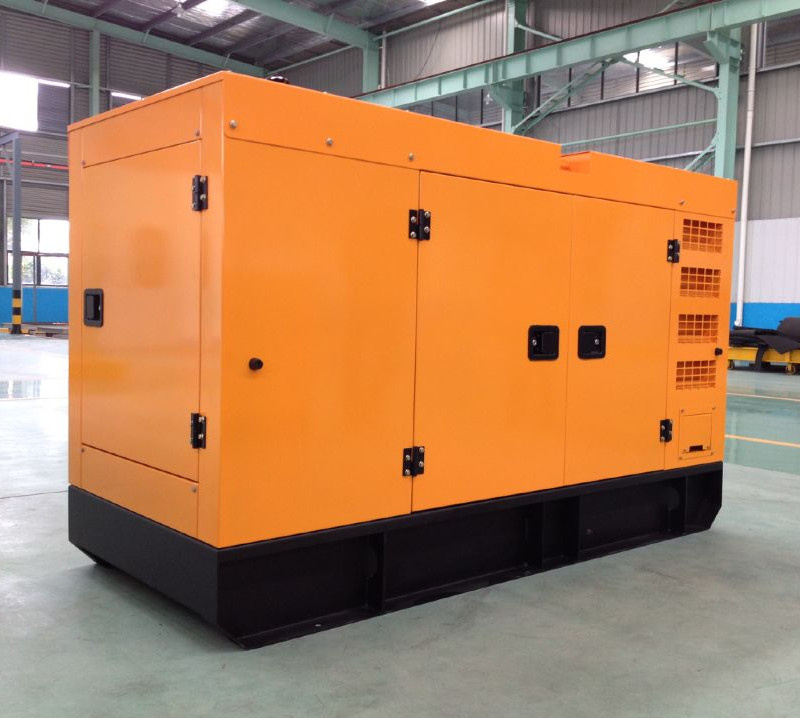

Advanced Quality 40kw/50kVA Silent Lovol Diesel Generator (1003TG) (GDL50*S)
Our Advantages
Safety - Stability - Economy - Sufficient power
Factory direct best price
The product has obtained CE,ISO,TUV certification,quality assurance
Color can be choice,novel appearance
With silencer,low noise
Common base attached to the shock absorber,small vibration
Open type genset will be much easier to maintainance and repair, with more durable performance and longer service life
Genset's Data |
Genset Model | GDL50*S |
Prime Power | 50KVA/40KW |
Standby Power | 55KVA/44KW |
Rated Voltage | 400/230V (Adjustble) |
Frequency | 60Hz |
Radiator | 50°C suitable for tropical weather |
Charge Alternator | 24V |
Dimension(L*W*H) (mm) | 1750*710*1350 mm (Open genset ) |
Dimension(L*W*H) (mm) | 2800*1000*1500 mm (Silent genset) |
Net Weight (kg) | 850KG/1550KG with canopy |
Base Feul Tank Capacity | Enough for Genset 8-10 Hours Continuous Running |
Diesel Engine Data |
Brand | lovol |
Model | LOVOL 1003TG |
Governor Type | Electrical |
Rotating Speed | 1800 rpm |
Engine Cooling Method | Water-cooled |
Cylinder Nos. | 6 |
Fuel consumption | 21.0L/h @75% full load |
Alternator Data |
Brand | Leroy Somer |
Model | LSA46.2M3 |
Power Factor(COS Phi) | 0.8 |
Excite Type | Brushless SHUNT |
Connecting Type | 3 Phase & 4 Wires |
Insulation Degree | H |
Enclosure Degree | IP23 |
AVR voltage regulation rate | ≤±0.5% |
Contact: Ms Vicki Yua
TEL:86 514 80915716
Established in Year 2006, GODLIKE POWER is headquartered in Yangzhou city, Jiangsu Province, only 2.5 hrs far from Shanghai or Nanjing. It has grown into a leading manufacture of diesel generators&alternators in China and ranked amongst the top manufacturers worldwide.
Motivated by our slogan to provide "Excellent Power Solution", Godlike Power focuses on design, manufacture, sales, installation and service of diesel generators&alternators. Our diesel generators range from 8 kVA to 2500 kVA, equipped with Perkins, Cummins, Mitsubishi, Doosan, Deutz, MTU etc and equipped with our alternator, Stamford, Leroy-Somer etc alternators as required. Our Stamford type brushless alternators range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800, voltage 110V-690V, class H, IP23, all easily coupled with Industrial & Marine, Diesel & Gasoline engines.
GODLIKE people treat Quality and Service as enterprise's life, and has competitive advantages.
GODLIKE generators are being exported to Europe, America, Southeast Asia, the Middle East, South Africa, and many other countries and regions, obtaining great corporate reputation and long-terms partner cooperations.
Warmly welcome to GODLIKE.
