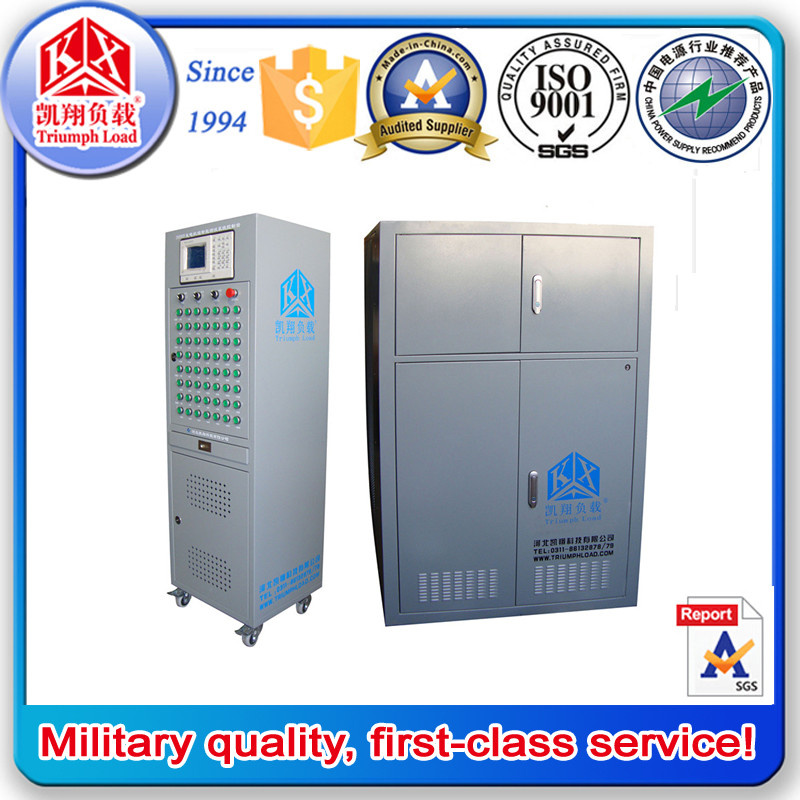

Adjustable AC Load Bank Generator Set Intelligent Testing System
1.Product Introduction
Adjustable AC Load Bank Generator Set Intelligent Testing System
It is designed for AC power maintenance,could be used widely in communication base,power supply,power station etc.
This machine is small,light weight digital table display,easy operation,high intelligence, set the parameters of constant
current discharge process can be done automatically.
2.Adjustable AC Load Bank Generator Set Intelligent Testing System Working Environment
Altitute:≤2500m
Temperature:-10°C~50°C
Humidity:≤95%RH
Working Mode:Continuous work(>6hours continuous long-term work per day)
3.Adjustable AC Load Bank Generator Set Intelligent Testing System Technical Specifications
Technical Parameters |
Rating Voltage/Frequency |
AC three pahse four wire 380V/50Hz |
Compatible voltag/Frequency |
Resistive Load: 500kW*4Sets |
Load Step |
Resistive Load:11 steps:1,2,2,5,10,20,20,50,50,50,50,50,100,100kW |
Power Factor |
1 |
Load Tolerance(each step) |
±5% |
Load Tolerance(overall) |
±3% |
Display Precision |
0.5 class |
Control Power Supply |
AC220V/50Hz single phase |
Wire Connection |
Load power supply input--Copper bar (star coupling)
Control power supply input--Amphenol connector |
Communication Interface |
RS485,RS232 |
Insulation grade |
F class |
Protection Grade |
IP21 |
Working Mode |
Continous working |
Cooling |
Forced air cooling,Horizontal inlet air,Upward cooling |
Transportation |
Hoisting, there are lifting lug in top of casing and casters in bottom of load bank |
Weight |
About 600kg 18000 mm×900mm×1600mm |
Operating Environment Parameter |
Ambient Temperature |
-10ºC~+50ºC |
Relative Humidity |
≤95% |
Altitude |
≤2500 meters |
Atmospheric Pressure |
86~106kPa |
4.Why choosing us
The earliest and most professional manufacturer of AC/DC Load Bank in China, dedicated to this industry for more than 20 years.
The most patent technology and scientific research awards gainer in China.
Advanced detection method and strict inspection procedure build the qualified quality.
Customized production meet the individual requirement.
Prompt delivery & excellent after sales service.
Cooperate with many well-known enterprise, offer OEM and ODM service to world famous brands.
Certified with China Classification Society (CCS) and ISO9001:2008 Quality Certificate.
Triumph Load is the first brand in the emergency power supply test & maintenance industry in China.
