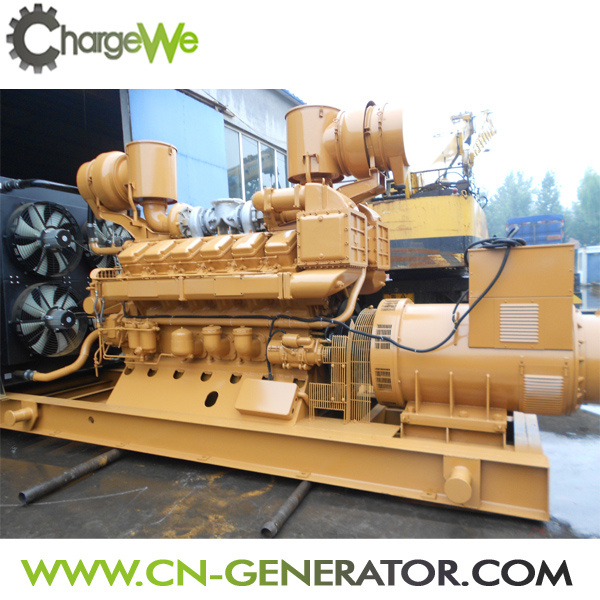

AC Three Phase Output 1MW Diesel Power Generator with Genset Parts
| Price: |
US $ 88550/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Roll |
| Pay Type: |
L/C,T/T,Western Union |
China best supplier 1000kw diesel generator Main configurations for diesel genset1.Strong diesel engine 12V190
2.Controller : Smartgen
3.Alternator : Stanford
4.Starting system : DC 24v electric motorSpecs of 1mw diesel generator| Genset mode | CW-1000GF |
| Engine No. | G12V190ZL1 |
| Rated power | 1000kw |
| Continuous power | 800kw |
| Rated voltage | 400v/230v |
| Phase | 3phase4wire |
| Rated frequency | 50Hz |
| Rated rotation | 1500r/min |
| Rated power factor | 0.8 |
| Rated current | 1800A |
| Cylinder number | 12-V |
| Cylinder diameter | 190mm |
| Stroke | 210mm |
| Compression ratio | 14:1 |
| Oil consumption (Full load) | ≤209.4g |
| Lubricant oil consumption (g/kw.h) | ≤1.6g |
| Starting mode | 24V electric motor |
| Control mode | Long-distance control /manual control |
| Intake mode | Direct injection ,turbine charger |
| Lubricating mode | Pressure and splashing lubricating |
| Discharge temperature (before turbine) | ≤600ºC |
| Temperature of Outlet water | ≤85ºC |
| Oil temperature (in the oil pan) | ≤90ºC |
| Oil pressure of Man oil Gellery | 392-784kpa |
| Displacement | 71.45L |
| Genset size | 6150*1820*2700mm |
| Weight | 12500kg |
Who are we ?Being manufacturer of generators for 20years. mainly produce natural gas generator , biogas generator , biomass generator ,coal gas generator ,syngas generator , coal-bed gas generator ,coke oven gas generator diesel generator etc . all the generators will be tested before delivery ,to ensure customers's genset run well.

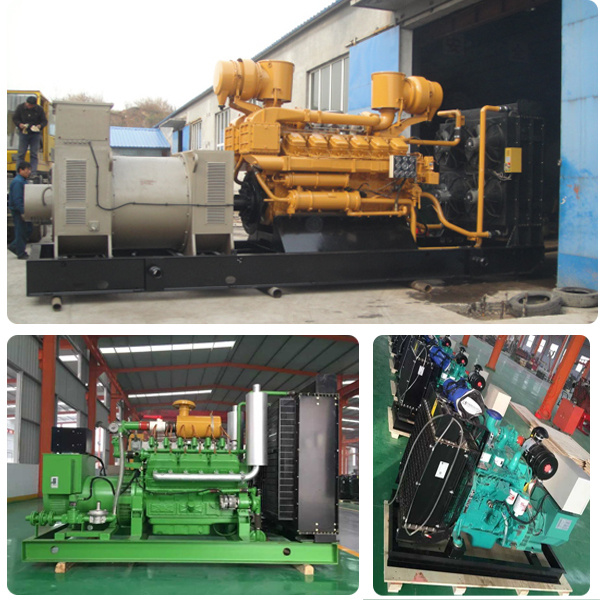

Also we provided the genset parts for Jichai engine ,shengdong engines such as 12V190 , 8V190.6190 etc.How to Choose the right model of genset ?Please let me know the required continuous output power , local volatge and frequency , and fuel (use diesel ,mantual gas ,biogas ,biomass ) For gas power plant , we need to know the gas calorific value and gas mass flow rate. Whats the warranty and maintenance?The warranty is one year , and free service and spare parts will be offer during warranty period , maintenance trainning will be provided when you visite our factory.Our Factory
Clients visited
CE/ISO
Contact us
Tel:+86-18853132968
Website :www.cn-generator.com
| Prod Model: |
CW-1000GF Diesel generator |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diesel Powered Generator: |
1000kw /1250kVA |
| Diesel Engine: |
Jichai 12V190 Diesel Engine |
| Rated Voltage: |
400/230V |
| Type: |
Basic Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
| Excitation Mode: |
Bushless |
Shandong Chaiwei Power Equipment Co., Ltd is a comprehensive high-tech enterprises in China with more than 15 years experiences, focusing on new type of environmental protection generators' development production and sale. We have our own brand "CHARGEWE" generator set, including diesel generator set, biogas generator set, nature gas generator set, biomass generator set, coal gas generator set etc. From 20kw to 1000kw with CE & ISO9001: 2008 certificate, Besides we also offer the diesel engine and spare parts for gas/diesel generator set. Our products have been exported to Middle East, South America, Southeast Asia, Russia, Eastern Europe and have got a high reputation on the domestic and overseas market.
About the products, we have self-developed team to design and improve the generator sets to meet different customers` need. So the OEM and ODM are available. We have completed quality inspection system to make sure each product that customer get is perfect, and the professional after-sale team to guarantee your generator set be correctly installed and running normally. CHARGEWE will bring best products and service with most reasonable price for you. From the foundation of our company, we committed to leading as pioneer of the generator industry and contributing ourselves for China's electricity industry. We believe CHARGEWE will be your best partner in generator area.
