Home Generator Products AC Three Phase 152 Kw Diesel Alternator

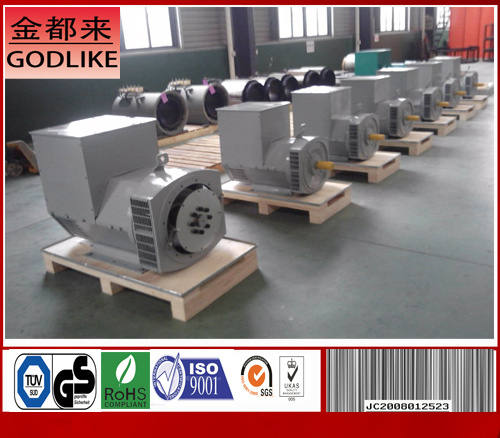

AC Three Phase 152 Kw Diesel Alternator

AC Three Phase 152 Kw Diesel Alternator
Price: Negotiable/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 2/Piece
Pay Type: L/C,T/T
Basic Info.
Model NO.: JDG274G
Output Type: AC Three Phase
Export Markets: Global
Additional Info.
Trademark: GODLIKE
Packing: In Strong Plywood
Standard: IECBS 5000, VDE 0530, IEC 34, NEMA MG1-22, CSA C2
Origin: China
HS Code: 8501620000
Production Capacity: 8000 Units Per Year
Product Description
Specifications
1) Power range: 190kVA
2) Brushless Synchronous A. C. Alternator,
3) Stamford& Leroy somer Type of Electric Generator,
4) Three Phase optional, IP23, Class H,
5) Rated voltage 400V, 110-690V option, and High-Voltage Alternator(4KV&11KV) also available

Features
1) A. V. R. (Automatic Voltage Regulator)controlled
2) 12 wire reconnectable winding;
3) 100% famous brand copper wire;
4) 2/3 pitch windings avoid excessive neutral currents;
5) Dynamically balanced rotor and sealed-for-life bearings;
6) Permanent Magnet Generator(PMG) is available as an option;
7) Reliable supplier with Quality Materials, and strict Quality Controller (by QC Dept. )
8) Easily coupled with power networks or other genetator sets,
9) Balance rotor with single or two sealed ball bearings available,
10) Convenient installation and easy maintenance, easy access to terminal, rotating rectifier and coupling bolts,
11) Wide range of flange adaptor and single bearing coupling disc,

Parameters
1) Rated voltage 400V, 110V-690V for option
2) Three phase, single phase for option
3) 50Hz, 60h for option
4) 1500rpm, 1800rpm for option
5) Drip-leak-proof structure: IP22/23 protection class
6) Insulation class H
7) Adjusting rate of stable voltage≤ 1%
8) Transient state voltage≤ -15% - +20%
9) Wave aberration rate of voltage THD≤ 3%
10) Telephone harmony wave factor of telephone THF≤ 2%

Standards&Certifications
1) GODLIKE generators are comformity to International standards of IECBS 5000, VDE 0530, IEC 34, NEMA MG1-22, CSA C22.2-100 and ASB59.
2) GODLIKE generators are Certified of CCC, CE, TUV, EPA, SGS

Solutions
1) Easily coupled with Industrial&Marine, Diesel&Gasoline engines, world first-class of Cummins, Lovol, Volvo Penta, MTU, Deutz, MAN, Caterpillar, Yanmar, Kubota, Lister Petter, Doosan, etc,
2) Widely used in Industry, Commercial, real estate, hospital, hotel, railway, telecommunications, datacenters and mining etc

Warranty:
2 years, Godlike Power DHL new parts for replacement within 3 days upon customer's complaint.
Description 3 phase brushless synchronous A.C. alternator (under Stamford technology)
Frequency: 50Hz
Rated power: 152kW/180kW
Rotational speed: 1500rpm
Rated voltage: 400
Insulation class: H
Temperature class: H (can meet class F working and standby working)
Bearing: single/double bearing
PF 0.8
Protection class: IP23
Others: AVR controlled;4 poles;
12 wire reconnectable winding;
100% famous brand copper wire;
5/6 pitch windings avoid excessive neutral currents;
dynamically balanced rotor and sealed-for-life bearings;
110% loading can work 1 hour every 12 hours;
More information
Packaging: in strong plywood
Packing Dimension 1560*790*1070MM
Gross Weight 975KG(single bearing)   975KG(double bearing)
Color: standard BAL7030 (according to your request)
Delivery term: by sea
Payment term: 100% TT deposit after ordered .L/C
Load Port: Shanghai port,China.
Lead time: 7days after the advanced payment arrived
Warranty: 24 months
Validity 25.Nove .2014
Prod Model: JDG 274G
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Specialize: 100% Famous Material
Established in Year 2006, GODLIKE POWER is headquartered in Yangzhou city, Jiangsu Province, only 2.5 hrs far from Shanghai or Nanjing. It has grown into a leading manufacture of diesel generators&alternators in China and ranked amongst the top manufacturers worldwide.

Motivated by our slogan to provide "Excellent Power Solution", Godlike Power focuses on design, manufacture, sales, installation and service of diesel generators&alternators. Our diesel generators range from 8 kVA to 2500 kVA, equipped with Perkins, Cummins, Mitsubishi, Doosan, Deutz, MTU etc and equipped with our alternator, Stamford, Leroy-Somer etc alternators as required. Our Stamford type brushless alternators range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800, voltage 110V-690V, class H, IP23, all easily coupled with Industrial & Marine, Diesel & Gasoline engines.

GODLIKE people treat Quality and Service as enterprise's life, and has competitive advantages.

GODLIKE generators are being exported to Europe, America, Southeast Asia, the Middle East, South Africa, and many other countries and regions, obtaining great corporate reputation and long-terms partner cooperations.

Warmly welcome to GODLIKE.
