AC Dummy Load Bank for Generator Sets Testing

1.Product Introduction

AC440-3000KW AC Dummy Load Bank for Generator Sets Testing Load Bank

It is composed of outdoor resistor-inductance AC load bank,data collection system,electric control module,thermal

module,control part etc.It can accurately detect Marine generator output power and load capacity,and assist shipyard in

acceptance of vessel,mooring test,sea trial,load test,static voltage characteristic test, speed characteristic test,overload

protection test,reverse power and reverse current protection test,and parallel operation test etc.

2.AC440-3000KW AC Dummy Load Bank for Generator Sets Testing System Chart

3.AC440-3000KW Resistive and Reactive Generator Sets Testing Load Bank Working Environment

Altitute:≤2500m

Temperature:-10°C~50°C

Humidity:≤95%RH

Working Mode:Continuous work(>6hours continuous long-term work per day)

4. AC440-3000KW AC Dummy Load Bank for Generator Sets Testing Technical Specifications

Technical parameter
AC440-3000KW
Rated voltage /Frequency	Three-phase three-wire 440V,60Hz
Rated Capacity	3000KW
Resistor divider file	3 Groups,each 1000KW,in total 3000KW,Step Value:1KW Load1:1,2,2,5,10,10,20,50,100,200,200,200,200KW Load2: 1,2,2,5,10,10,20,50,100,200,200,200,200KW Load3: 1,2,2,5,10,10,20,50,100,200,200,200,200KW
Power factor	1
Load Tolerance(each step)	±5%
Load Tolerance(overall)	±3%
Display Precision	0.5 class
Control Power Supply	External AC three phase connection 380V/50Hz
Wire Connection	Load power supply input--Copper bar (star coupling) Control power supply input--Connector-bar
Insulation grade	F class
Duty cycle	Continuous
Cooling	Forced air cooling, Horizontal inlet air, Vertical cooling
Transportation	Hoisting, there are lifting lug in top of casing and casters in bottom of load bank
Casing Color	Grey(RAL7035)
Dimension	About 6100mm2438mm2896mm(lengthwidthheight)
Weight	About 9000kg
Operating Environment Parameter
Ambient Temperature	-10ºC~+50ºC
Relative Humidity	≤95%
Altitude	≤2500 meters
Atmospheric Pressure	86~106kPa
Main components brand
Contactor	Schneider
Circuit Breaker	Siemens
Fuse	Delixi
SCM	Infineon
Alloy Resistor	Kaixiang
Data Management Software	Kaixiang

5.AC440-3000KW AC Dummy Load Bank for Generator Sets Testing Product Display

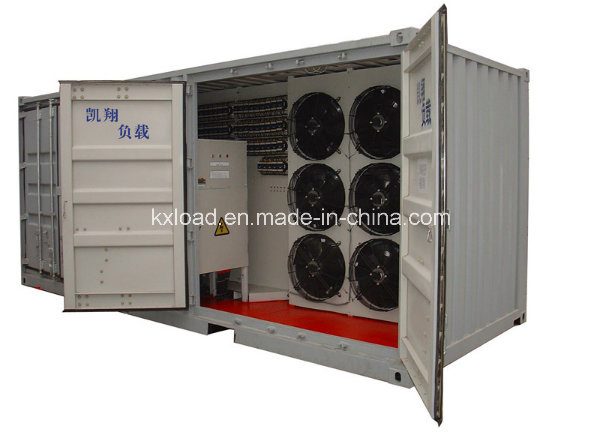

Overall Apperance

6.Why choosing us

The earliest and most professional manufacturer of AC/DC Load Bank in China, dedicated to this industry for more than 20 years.
The most patent technology and scientific research awards gainer in China.
Advanced detection method and strict inspection procedure build the qualified quality.
Customized production meet the individual requirement.
Prompt delivery & excellent after sales service.
Cooperate with many well-known enterprise, offer OEM and ODM service to world famous brands.
Certified with China Classification Society (CCS) and ISO9001:2008 Quality Certificate.
Triumph Load is the first brand in the emergency power supply test & maintenance industry in China.

7.Contact Information
Stella Cao
KAIXIANG ELECTRICAL TECHNOLOGY CO.,LTD
FOREIGN TRADE DEPARTMENT
TEL:+86-0311-86125326
FAX:+86-0311-86128298
Mobile:+86-15081159220
Web:www.load-banks.com
Add:No.68,Jianshe Street,Yuhua District,Shijiazhuang,Hebei,China

Prod Model:	AC440-3000KW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	AC 440V
Frequency:	60Hz
Rated Power:	3000kw
Insulation Grade:	F Class
Cooling:	Forced Air Cooling, Horizontal Inlet Air, Upward C
