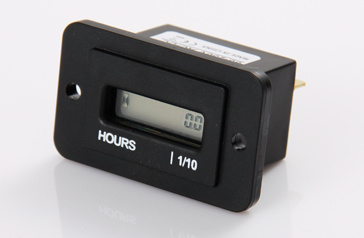

AC/DC Powered Engine Hour Meter for Outboards Marine Yacht
Product Description
· Track the Service Life of Your engine - oil changes, valve, adjustments, spark plugs, etc...
· Non-volatile memory(no battery).
· Data retained up to 25+ years.
· Easy to read 7 mm digits.
· Flashing hour glass icon shows it is working.
· Fits standard panel cut-out.
· Reset optional.
· Works on Any AC/DC powered engine.
· Low power consumption.
· Completely sealed, dust-proof and waterproof.
· Records and Displays to 9, 9999.9 hours.
· Automatic Roll over.
· Warranty one year.
Applications:
Widely used on gasoline engine generator, motorcycle, All-Terrain Vehicle, snowmobile, motorized glider,
Lawn mower, engineering vehicle, chain saw, forklift, excavator, crane, motorcross, scooter, hay baler, hay mower, tractor mower, Jet Ski, Dirt bike, go kart, pit bike Quad Bike Turf Cutter, stump grinders etc
|
Product Model Number |
RL-HM010 |
|
Accumulated Run Time |
Hours |
|
Max disp l ay (HOURS) |
99999 .9 |
|
Hour resolution (HOURS) |
0.1 |
|
Voltage supply |
AC:86V-230V,DC:4.5V-90V |
|
Operating Temperature |
Standard -40 °C to +85 °C |
|
Operating Amperage |
< 10mA |
|
Individual packing |
White box |
|
Gross Weight |
0.0 6 KG /PC |
|
Color |
Black |
|
Parts |
1 meter,6 pieces pin cover,2 screws |
|
PIN + |
Power |
|
PIN - |
Grounded (When connected, each digit winkles once and shows the recorded hours, ready to work.)
|
