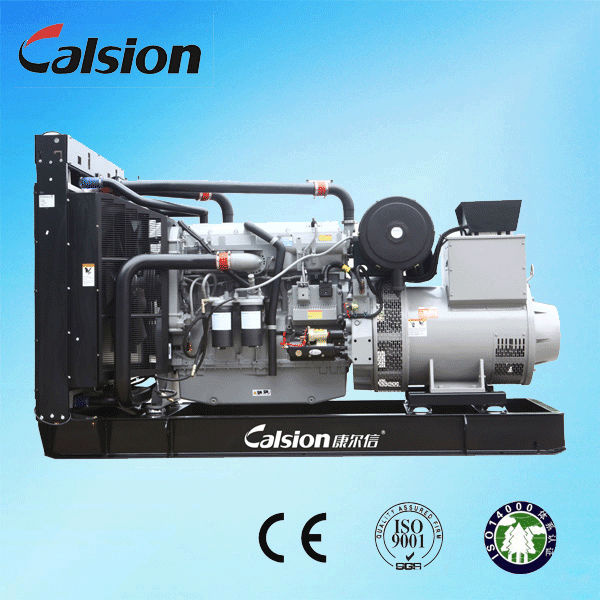

Diesel Generator Set Supply Scope:
1, Various Voltage available but coupled alternator model may be changed. For detailed inquiry, pls contact Calsion sales.
2, Leroy Somer Brushless Alternator, Single Bearing, Flange Connection, IP23, Insulation Class H, AVR Fitted. (Stamford, Engga and Marathon for Option)
3, Perkins generator With 8 Working Hours Base Fuel Tank(for the both of open & silent genset ≤ 650kVA prime, only Base Frame for other models), AVM Suspension System, Set-mounted Exhaust System, Battery, Battery Charger and Lead supplied
4, Perkins generator With Delixi Breaker, ABB Breaker for Option
5, Complete Operation/Maintenance Manuals for generator /Engine/Alternator, Perkins generator testing report
6, Warranty: One year or 1000 Working Hours from the shipment date, whichever comes first.
Optional Diesel Generator Set Accessories:
Engine | Heaters | | |
Alternator | Single phase, three phase | Brushless, carbon brush | High Voltage |
Control System | Key Start/Auto Start Controller | Remote Controller | ATS Controller Synchronization Controller |
Fuel System | Outside Fuel Tank | | |
Generator Type | Weatherproof/Soundproof Type | Container Type | Trailer/Vehicle type |
Spare Parts | Oil filter, air filter, tank pad, Triangle Belt, tools and Engine Parts Drawing List, etc |
Compliance Standards:
To BS4999/5000 pt 99, VDE 0530,UTE5100, NEMA MG1-22, CEMA, IEC 34,
CSAA22.2, AS1359, BSS 5514, ISO 3046 and ISO 8528
Calsion Diesel Generator Set ----CP Series Selection Table
Generator Model | Power Output 50HZ/400V/3P4W | Engine Model | Alternator Model (Leroy Somer) |
KW | KVA | A |
C9P | 7.2 | 9 | 13 | 403D-11G | LSAP40C |
C13P | 10 | 13 | 18 | 403D-15G | LSAP40D |
C20P | 16 | 20 | 28 | 404D-22G | LSAP40G |
C65P | 52 | 65 | 93 | 1104A-44TG1 | LSAP43E |
C80P | 64 | 80 | 115 | 1104A-44TG2 | LSAP43F |
C100P | 80 | 100 | 144 | 1104C-44TAG2 | LSAP44D |
C135P | 108 | 135 | 194 | 1006A-70TAG1 | LSAP44F |
C150P | 120 | 150 | 216 | 1006A-70TAG2 | LSAP44G |
C180P | 144 | 180 | 259 | 1106A-70TAG3 | LSA46.2 M3 |
C200P | 160 | 200 | 288 | 1106A-70TAG4 | LSA46.2M5 |
|
C30P | 24 | 30 | 43 | 1103A-33G | LSAP42D |
C45P | 36 | 45 | 65 | 1103A-33TG1 | LSAP43D |
C60P | 48 | 60 | 87 | 1103A-33TG2 | LSAP43E |
C90P | 72 | 90 | 130 | 1006TG1A | LSAP44C |
C228P | 182 | 228 | 328 | 1306C-E87TAG4 | LSA46.2 L6 |
C250P | 200 | 250 | 361 | 1306C-E87TAG6 | LSA46.2 L6 |
C313P | 250 | 313 | 451 | 2206A-E13TAG2 | LSA46.2 VL12 |
C350P | 280 | 350 | 505 | 2206A-E13TAG2 | LSA47.2 VS1 |
C400P | 320 | 400 | 577 | 2206A-E13TAG3 | LSA47.2 S4 |
C455P | 364 | 455 | 657 | 2506A-E15TAG1 | LSA47.2 S5 |
C500P | 400 | 500 | 722 | 2506A-E15TAG2 | LSA47.2 M7 |
C600P | 480 | 600 | 866 | 2806A-E18TAG1A | LSA47.2 L9 |
C650P | 520 | 650 | 938 | 2806A-E18TAG2 | LSA49.1 S4 |
C750P | 600 | 750 | 1082 | 4006-23TAG2A | LSA49.1 M65 |
C800P | 640 | 800 | 1155 | 4006-23TAG3A | LSA49.1 M75 |
C910P | 728 | 910 | 1313 | 4008TAG1A | LSA49.1 L10 |
C1019P | 815 | 1019 | 1470 | 4008TAG2A | LSA49.1 L11 |
C1250P | 1000 | 1250 | 1804 | 4012-46TWG2A | LSA50.2 M6 |
C1500P | 1200 | 1500 | 2165 | 4012-46TAG2A | LSA50.2 L8 |
C1705P | 1364 | 1705 | 2461 | 4012-46TAG3A | LSA51.2 S55 |
C2000P | 1600 | 2000 | 2886 | 4016TAG2A | LSA51.2 M60 |
C2250P | 1800 | 2250 | 3247 | 4016-61TRG3 | LSA51.2 VL85 |
