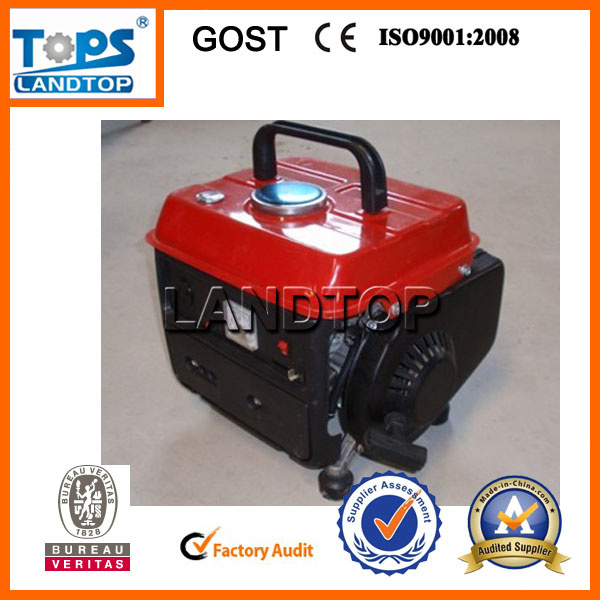

PORTABLE GASOLINE GENERATOR
Gasoline Generator
Engine:
1) Type: 1-cylinder, 2-stroke, air-cooled gasoline engine
2) Work capacity: 63cm³
3) Max. Output: 2.5 horsepower/3, 000rpm
4) Ignition system: CDI
5) Starting system: Recoil
6) Fuel tank capacity: 4L
7) Continuous operating time: 6 hours
8) Gasoline and oil ratio: 25: 1
Generator:
1) A. C. Frequency: 50/60Hz
2) Max. A. C. Output: 700-800VA
3) Rated A. C. Output: 600-700VA
Size and weight:
1) Over dimension(L*W*H): 375*315*320mm/385*315*330mm
2) Net weight: 17/18kg
| Model | LT950s |
| Generator | self-exciting, 2-poles, single phase |
| AC Frequency | 50Hz | 60Hz |
| Engine speed | 3000rpm | 3600rpm |
| AC Rated voltage(v) | 220v/230v/240v | 110v/120v 220v/240v |
| Rated AC Output(w) | 500 |
|
| Max. AC Output(w) | 650 |
|
| DC output | 12V-8.3A |
| Power factor | cosφ =1.0 |
| Voltage Regulator | Capacitance |
| Engine |
| Engine model | 1E45F |
| Type | OHV 2-stroke, air cooled, single-cylinder |
| Bore*stroke | 45mm*40mm |
| Displacement(cc) | 63 |
| Continuous output | 1.1kw/3000rpm |
| Maximum output | 1.3kw/3000rpm |
| Fuel tank capacity | 2.5L |
| Fuel | 50: 1Gasoline and oil mixed |
| Fuel consumption(g/kw/h) | 540 |
| Starting system | recoil |
| Ignition model | TCI |
| Compression ratio | 7.4: 1 |
| Noise level LwA dB(A) | 60/63 |
| Dimension(L*W*H)mm | 345X270X330 |
| Net weight(kg) | 20 |
| Gross weight(kw) | 21 |
| 20FT container QTY(PCS) | 955 |
