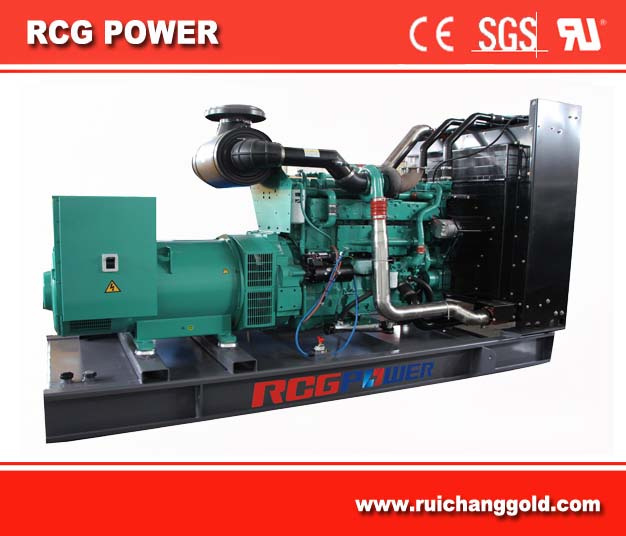

| MODEL |
R-CC900 |
PRIME POWER (KVA/KW) | 900/720 |
| STANDBY POWER(KVA/KW) | 990/792 |
| Rated voltage(V) | 400/230 |
| Rated speed(rpm) | 1500 |
| Rated frequency(Hz) | 50 |
| Power factor | 0.8 |
| Ambient temperature(ºC) | 40 |
| Altitude(m) | 1000 |
| Connection type | 3 phase 4 wires |
| ENGINE MANUFACTURER |
CUMMINS |
Model | KTA38-G2A |
| Rated Power(kW) | 813 |
| No. of cylinders & configuration | In-Line 12 cylinders |
| Method of operation | 4-stroke |
| Speed regulation | Electronic Governor |
| Starting system | DC 24V Electronic start |
| Cooling method | Closed-circuit cooling system |
| Total displacement(L) | 37.8 |
| Compression ratio | 14.5:1 |
| Bore×Stroke(mm) | 159×159 |
| 100% Load fuel consumption(L/h) | 191 |
| ALTERNATOR MANUFACTURER | STAMFORD |
| Number of Phase | 3 |
| Connection Type | 3Phase and 4Wires |
| Number of Bearing | 1 |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Terminal | 12 |
| Winding/ Pitch | 100% Copper 2/3 Pitch |
| Cooling Fan | Cast alloy aluminum |
| Exciter Type | Brushless, Self-Exciting |
| Insulation Class, Temperature Rise | H/H |
| Telephone Influence Factor( TIF) | TIF <50 / THF<2% |
| Total Harmonic TGH/THC | <1.5% at no load / <5% at load |
| Voltage Regulation, Steady State | ≤±1% |
| Sustained Short-Circuit Current | 300%(3 in):10s |
| CONTROL SYSTEM | DSE SERIES |
1). Engine
Cummins Series Marine Generators include the emergency Use and Auxiliary Generators. The Cummins Marine Emergency use generators includes the Cummins marine engine and Stamford alternator with fan, water tank & radiator cooling system; The auxiliary use marine generators with Cummins marine engine and Stamford alternator with heat exchanger and sea water pump for the cooling system. Our marine generators all are applied for the CCS and BV Certificates.
2). Alternator
Original Stamford & Marathon & Siemens Alternator with brushless self-excited, AVR, H Class Insulation, IP23 Protection.
3). Control System
Adopt the top brand Deepsea controller( DSE510, DSE5210, DSE5320, DSE5220 etc) and ComAP Controllers( MRS-10, MRS-16. MRS-15 etc) with manual, automatic & remotely operation for the users.
4). Test & Commissioning
Each generator has been got through 2 hous load test for running 0%, 25%, 50%, 75%, 100% and one hours overload test
5). Standard Accessories:
Standard radiator mounted on skid, common steel frame, circuit breaker, damper, exhaust pipe, battery, shock pad, operation manual, silencer, test report and certificate
6). Warranty
All equipment is warranted for a period of 1000 hours or 12 months fro mthe date of commissioning.
7). Certificate: ISO9001: 2000, BS4999, BS5000, BS5514, CE, EPA, ISO4001: 2004
8). Package: Standard exporting Plywood Case
