90000W Solar off-Grid Inverter and Controller Integrated Machine (INV-S1-50000W)

90000W Solar off-Grid Inverter and Controller Integrated Machine (INV-S1-50000W)
Price: US $ 5000/Piece
Trade Terms: FOB,EXW
Min Order: 1/Piece
Pay Type: T/T
Product Information:

This kind of solar / wind power off-grid inverter is pure sine wave intelligent inverter. Through the inverter power supply, DC 12v /24v /48v battery can be converted into AC 110v /220v, which used to the electronic products, such as water pump, air-condition, refrigerator etc. The solar power system consists of solar panel, solar controller, inverter, battery and other components.

According to used method can be divided into three types:
1. Only the converter;
2. Give priority to the use of solar energy;
3. Give priority to the use of AC.

You can customize the DC 36v inverter; Also can choose converting the AC 100v /AC 120v /AC 240v, which frequency is 50HZ /60HZ.

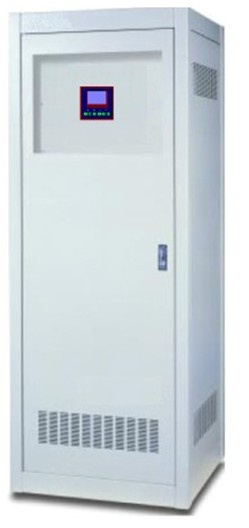

Product Picture:
Also we have another products' apperance ,the picture is in the following: (please kindly tell me what you want)






Product Advantage:

1. CPU intelligent management;
2. Latest American technical inverter;
3. Adopted best electronic components, stable quality, long-life;
4. The high conversion efficiency reach to 90%-99%;
5. Low power consumption, when power is in 1W-6W, under sleep state.

Product Feature:

1. DC batteries is converted into AC pure sine wave output;

2. Built-in transfer switch automatically transfers between inverter power and incoming AC power.

3. CPU management, Intelligent control, module design;

4. LED / LCD display function;

5. The inverters' high conversion efficiency can reach to 90%-99%, and it has lower power consumption.

6. It can match with all kinds of batteries, such as sealed lead acid battery, open lead acid battery, gel battery and kinds of lithium batteries.
Attention please: If you want inverters to match the lithium batteries, you should tell me the lithium batteries specifications.

7. Three-step intelligent charging mode available. It charges all kinds of batteries intelligently, so can be used as a charger. And the maximum charging current is adjustable.

8. It is also called dynamic inverter that has the advantage of strong overload capacity. For example, 1KW model can drive 1P air conditioning, and 2KW can drive 2P air conditioning etc.

9. This kind of inverter adopts latest American low frequency circuit design and new electric materials. The whole system is more stable, low malfunction rate, and long-life. There is no problem to use for more than 5 years under the normally using.

10. 1-year warranty plus life-time service.

11. Protection function:
(1) High voltage protection
(2) Under-voltage protection
(3) Over-temperature shutdown
(4) Automatic overload protection
(5) Short-circuit protection
Type1-15KW1-20KW1-30KW1-30KW1-40KW1-100KW
DC
Input
Nominal VoltageDC96VDC110VDC192VDC220VDC240V(or other voltage can be customized)
 Battery Quantity12V×812V×912V×1612V×1812V×20Can be customized
Battery TypeMaintenance-free lead-acid batteries
AC
Input
 PhaseThree phase
Frequency50Hz ± 5%
Voltage Range380VAC ± 20%
Inverter OutputRated Power1-15KW1-20KW1-30KW1-30KW1-40KW1-100KW
Rated Voltage380VAC
Voltage Accuracy380VAC ± 2%
Frequency50Hz ± 1%
Waveform Distortion Rate≤ 5%(Linear load)
Dynamic Response5%(0%~100% Load)
Peak coefficient(CF)3:1
Power Factor0.8
Inverter Efficiency≥87%
AlarmTouch screen words alarm
Transfer Time≤5ms
Noise≤55db
Dielectric Strength1500 VAC, 1min (Input and Out put)
Cooling Cooling-Variable Speed Fan run under ventilation condition.

Size
1KW-5KW550 width *400 deep*800 height  (mm)
6KW-30KW600 width *600 deep*1660 height  (mm)
31KW-60KW800 width *600 deep*1860 height (mm)
Prod Model: INV-A1-50000W
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Grade: High -Quality/Intelligent Control
Product Type: Pure Sine Wave Inverter
Application: Solar Station, Wind Turbine and Home
Rated Power: 90kw
Export Markets: Global
Delivery Time: 1-3 Working Days
Warranty: 1-Year Warranty and Life-Time Service
Color: Gray
OEM: Yes
Customize: Yes
System: Off-Grid system
Certification: SGS
ORO-power was established in 2009 to provide affordable. Clean. Modern and sustainable renewable energy product. It aims to improve people living standards and to protect the environment. We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit.

We started to do power business since 1990 with specializing in OEM and OEM production. Now we have our own brand and domestic, foreign sale centre. Our team is with advanced idea and good performance. So the product can fit for a kind of standards and national certification requirements for advanced power product. There are many different kinds of product. The product has sold to over 30 provinces in China. It involves in lectric power, fire protection, telecommunications, airports, highways, subways, radio and television, railways, the force, finance, hospitals, tunnels, construction, petrochemical and other industries.

The product has pass the ISO9001: 2000, CE, SGS and modern enterprise management standards. We have set up the specialized pre-sale, sale, after-sale technical support and services. The perfect solution will meet with customer's specific requirements after fully communication with customers. With strong technical force and advanced production management concept, we can timely provide customer with thoughtful services and creat well-known top brand in the industry.
