Professional Manufacture for Vertical Axis Wind Turbine
1. High Quality
2. Competitive Price
3. OEM
4. Fast Delivery Time(We suggest only buy Wind Turbine+Blades)
Such as Inverter, Three-phase permanent magnet generator need to be customized, it needs longer time.
Application:
Suitable for any Application; Urban to Rural, Residential to Commercial, Industrial to Institutional
Advantages of VAWT:
Nearly Quiet
More Safety
Captures Wind From Any Direction
Birds Friendly
Longer Working Life
Less Maintenance
Less Requirements on Foundation
Lower Supporting Tower
Features from Other VAWT:
Pitch Control to Govern Speed
Automatic Mechanical Brake

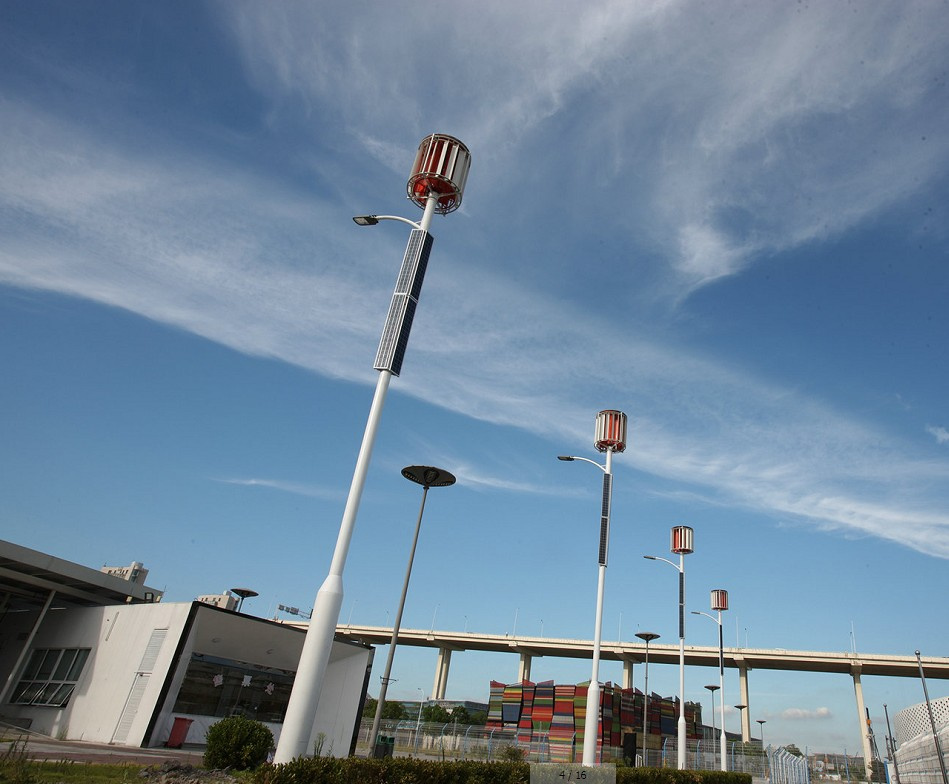

| wind/solar hybrid street lamp |
| Wind turbine | start-up wind speed | 0.4m/sec |
| cut-in wind speed | 1.2m/sec |
| Rated out-put wind speed | 10.0m/sec |
| designed to resist instantaneous wind speed | <45m/sec |
| Safety control method | braking | automatic brake system + electromagnetic brake |
| Blades | Length: 800mm width: 200mm Diameter: 850mm Qty:16+9 pcs |
| Material | 6063Aluminum alloy |
| Generator | Type | Disc-type PM coreless multilevel generator |
| Drive type | Direct |
| Rated number of revolution | 220rpm/min |
| Rated output | 100W/150W/200W |
| Shell material | Die casting silicon aluminum alloy |
| Solar power generating | amorphous silicon | 100W/120W/150W |
| Total weight |
| About 35KGS |
| LED | Load power | 40W/60W/80W |
| Initial luminous flux | 6560LM/9600LM/12800LM |
| Lighting time | All year around the clock |
| Lifespan | 50000 hours |
| Storage battery property | Storage battery | Maintenance-free gel battery |
| No power generated | Lighting for 7days |
| Support pole | Height | 6.0 m/7.0m/8.0m/9.0m/10.0m/12.0m |
| Diameter(bottom) | 219mm |
| Diameter (Top) | 140mm |
| Material | Carbon steel tubing |
| Surface treatment | hot galvanizing +powder coating |
| Energy controller | Wind/solar hybrid type | 600W |
| Battery charging management system | SPWM+MPPT |
| Illumination control | Light control +Time control |
| External output | DC24V |
