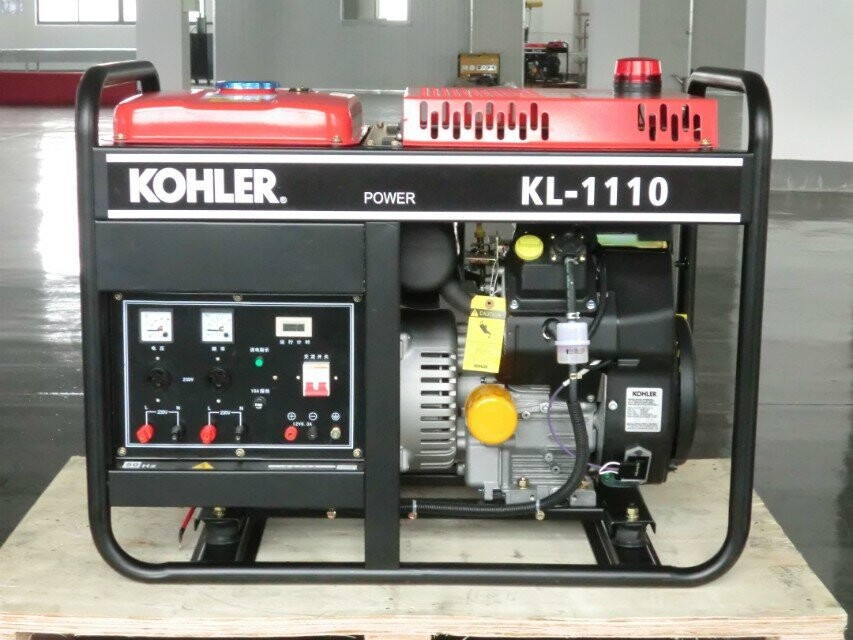

This series of portable Gasoline generator sets are manufactured by Kaiao power.
Brief introduction:
Portable
Small scale, portable design with open-frame suit for many working conditions, such as camping, home, field...
Silent
Equipe with high quality muffler, reduce some noise till 75dB, does not affect normal life and work. The generators cover with soundproof hood to reduce the noise , and also keep the rain, dust and water, rust, fire as well.
Features
This one is the hot sale with Kohler engine of this series, with AVR(Automatic Voltage Regulator)-which ensure steady voltage output and protect the machine against the over load-, low oil pressure alarm system, -which protect the machine from abrading, also it can be installed by electric starting with storage battery.
Ground system is equipped to secure the human safety. ATS system can automatically switch between utility power and backup generator. Also it can be installed remote starter.
The enlarged all-in-one fuel tank lengthens the every run time.
Other
All the end of line connection are arranged orderly in the control panel make maintence more convenient.
Clear panel and customized sockets, is easy for operating.
This series are certificated with CE, ISO9001.
| Model | KGE12E/E3 |
| Frequency(Hz) | 50 60 |
| Voltage(V) | 110, 127, 220, 230, 380, 400 & 416V |
| Current(A) | 43.5 47.8 |
| Output power(kVA) | 8/8.8KVA, 10/11KVA |
| Engine speed(rpm) | 3000 3600 |
| DC output | NO |
| Power factor ( cos ) | 01/0.8 |
| phase | single & 3 PHASE |
| noise level(7m) | 75 |
| Dimension ( L×W×H )( mm ) | 930×570×720 |
| Net weight (kg ) | 150 |
| Structure | open |
| Engine model | KOHLER original CH25 |
| Type | Double cylinder,air cooled four stroke, gasoline engine |
| Displacement ( L ) | 0.725 |
| rate power (kW/rpm ) | 18/3000 18/3600 |
| Bore*Stroke[mm(in)] | 90*78.5 |
| Fuel tank capacity ( L ) | 25 |
| Diesel oil model | SAE10W30 |
| Fuel comsumption rate ( g/kW.h) | Standard |
| Lube oil model | SAE10W30(CC+ level ) |
| Lube oil capacity(L ) | 44 |
| Spark plug | RC12YC |
