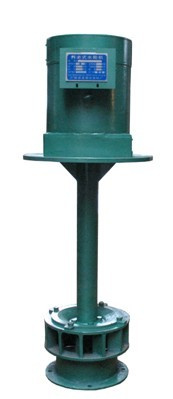

The axial flow water turbine generator is widely used in river and small dam with low water head which is 2.5-7m
|
Power(KW) |
Water head(m) |
Flow rate(cbm/s) |
Rotary speed(rpm) |
Nozzle diameter(mm) |
|
5KW |
2.5-4 |
0.18-0.2 |
500-1500 |
25 |
|
8KW |
2.5-4 |
0..3-0.4 |
500-1500 |
30-40 |
|
10KW |
4-5 |
0.3-0.4 |
500-1500 |
30-40 |
|
15KW |
5-6 |
0.4-0.5 |
500-1500 |
30-40 |
|
20KW |
5-6 |
0.5-.0.6 |
500-1500 |
30-40 |
|
30KW |
3.5-4.5 |
0..67-0.85 |
500-1500 |
30-80 |
|
40KW |
3.5-4.5 |
1.3-1.5 |
500-1500 |
30-80 |
|
50KW |
4-5.5 |
1.5-1.6 |
500-1500 |
30-80 |
|
60KW |
5-6 |
1.6-1.8 |
500-1500 |
30-80 |
|
70KW |
5-6 |
1.7-1.9 |
500-1500 |
30-80 |
|
90KW |
6-7 |
1.95-2.2 |
500-1500 |
30-80 |
|
100KW |
6-7 |
1.95-2.3 |
500-1500 |
30-80 |
Located in Nanning Guangxi, Hecong is specialized in exporting water turbine generator to worldwide.
Our company has many years experience on agricultural machinery,as a professional supplier of agricultural machinery, we can supply rice mill and grinder machine, oil press machine,water turbine generator,mini harvester, package machines, gasoline & diesel generator,water pump,mini cultivator, and so on.
