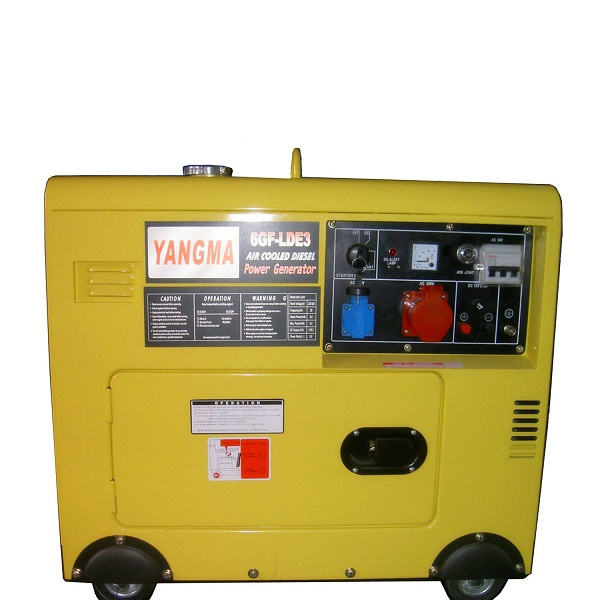

8kw-12kw (8kVA-15kVA) Air Cooled two cyliner v-twin portable small silent diesel generators
SILENT GENERATOR
Silent diesel generator
8KW-12KW(8kVA-15kVA) Air cooled twin cylinder engine powered electric portable super silent diesel generator
Model 8GF-LDE 8GF-LDE3
Rated frequency (Hz) 50 60 50 60
Rated output power (kVA) 9 10 10 11
Max. Power (kVA) 10 11 11 12
Rated voltage (V) 230 240 400/230 416/240
Rated current (A) 39.1 41.7 14.4 15.3
Phase No. Single Three
Power factor 0.9 (lag) 0.8 (lag)
Insulation F
Pole No. 2
Exciting way Brush, exciting-self voltage-constant (with AVR)
Panel type Intelligent
Output socket Single-phase socket, wiring terminal Three-phase socket, single-phase socket
DC12V output 12V, 8.3A
Dimensions: L× W× H mm 1040× 660× 740
Net weight Kg 245
Noise (7m)dB(A) 70
Structure type Fully closed
Engine model 2V82
Type V-twin, two-cylinder, four-stroke, DI
Cylinder No. Bore × Stroke (mm) 2-86× 70
Total displacement (ml) 812
Compressed ratio 0.834028
Cooling way Air-cooled
Lubricating way Pressure & splashing
Starting way Electric
Fuel used 0 # (summer ) -10 # (winter) -35 # (cold winter) light diesel
Oil used SAE10W30 (CD grade above)
Lubricating oil capacity (L) 1.7
Starting motor capacity (V-kW) 12V 1.4kW
Dynamo capacity (V-A) 12V 8.3A
Battery capacity (V-Ah) 12V 45AH
Fuel consumption under full loading L/H 3.0 3.7 3.0 3.7
Fuel tank capacity L 21
Continuous running time H 7.0 5.7 7.0 5.7
6.5GF-LDE 5KVA/50HZ 5.8KVA/60HZ 5KW Electrical start Soundproof type single phase
6.5GF-LDE3 6.3KVA/50HZ 7.2KVA/60HZ 5KW Electrical start Soundproof type three phase
7.5GF-LDE 5.5KVA/50HZ 6.3KVA/60HZ 6KW Electrical start Soundproof type single phase
7.5GF-LDE3 7.0KVA/50HZ 7.5KVA/60HZ 6KW Electrical start Soundproof type single phase
8GF-LDE 9KVA/50HZ 10KVA/60HZ 8KW single phase, E-start, Silent type
8GF-LDE3 10KVA/50HZ 11KVA/60HZ 8KW three phase, E-start, silent type
9GF-LDE 9.5KVA/50HZ 10KVA/60HZ 9KW single phase, E-start, Silent type
9GF-LDE3 11KVA/50HZ 12KVA/60HZ 9KW three phase, E-start, silent type
10GF-LDE 11.2KVA/50HZ 12KVA/60HZ 10KW single phase, E-start, Silent type
10GF-LDE3 12.5KVA/50HZ 13.2KVA/60HZ 10KW three phase, E-start, silent type
12GF-LDE 12.2KVA/50HZ 13.0KVA/60HZ 12KW single phase, E-start, Silent type
12GF-LDE3 14KVA/50HZ 15KVA/60HZ 12KW three phase, E-start, silent type
We would like to introduce ourselves as a leading manufacturer and exporter. Specialized in generator, engine, water pump, gradening machine and other power equipment which passed, CE, EPA and ISO9001 attestation.
We are the manufacture of the below products:
1. Air cooled diesel engine: 4/7/10/11HPS
Air cooled gasoline engine.: 6.5/8/11/13/15 HPS
2. Current diesel, gasoline generator from 0.45kw up to 6kw.
SILENCE DIESEL WATER& AIR COOLED SILENCE GENERATOR FROM 8KW UP TO 500KW
3. (high pressure)diesel, gasoline water pump: 1.5, 2, 3, 4 inch.
4. Pressure washer
5. Tractor with light tower
6. Garden machine
7. Construction machine
We do believe you will find our products are in the great competitive position in this line.
