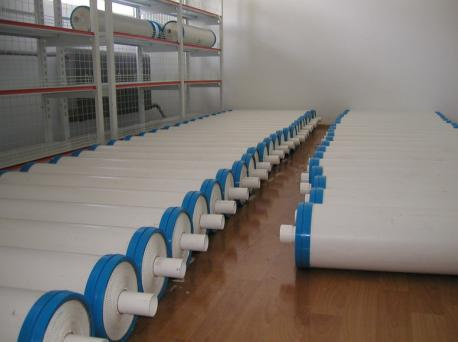

8inch Oxygen Enrichment Membrane Module
| Price: |
US $ 2500/Piece |
| Trade Terms: |
FOB |
| Min Order: |
10/Piece |
| Pay Type: |
T/T |
8" OEA membrane Module
|
8" OEA membrane Module |
|
Performance of 8 inch membrane module |
|
Type |
SW8 |
8inch |
|
OEA flow rate |
Nm3/h |
> 30 |
|
Oxygen concentration |
% |
28& plusmn; 1 |
|
Dimension |
mm |
& Phi; 200& times; 1000 |
|
Weight |
Kg |
14 |
|
Major References of OEA |
|
1\5# Hot Blast Stove, Jinan Ironmaking Plant, 2003 |
|
O2%: 29& plusmn; 1% |
|
Capacity of oxygen enriched air: 8000Nm3/h |
|
Up to now the biggest oxygen-enriched air membrane units in China have been installed and running successfully in hot blast stove for the Ironmaking Plant of Jinan. The flow rate of OEA is about 8000Nm3/h with the oxygen concentration of 30%. Experiments show that when the oxygen content of air can be increased to 24%, the blast temperature is increased by about 40centigrade. Consequently the client can gain higher yield and higher economical profit. |
|
2.1#-3# Spreader-stoker boiler, Crcalcohol coporation, China, 2005 |
|
Coal saving ration: 10.14%. |
|
Investment pay-back period: 6months. |
|
Time |
Heat Output |
Steam output per ton of coal |
Steam output per ton of standard coal |
|
|
1#~3# |
1#~6# |
1#~3# |
1#~6# |
1#~3# |
1#~6# |
|
Without OEA |
18.83 |
19.06 |
4.27 |
4.537 |
4.939 |
5.177 |
|
With OEA |
19.76 |
19.64 |
4.937 |
4.678 |
5.44 |
5.186 |
|
Coal Saving |
|
15.63 |
|
10.14 |
|
|
O2%: 29& plusmn; 1% |
|
Capacity of oxygen enriched air: 1350Nm3/h |
|
No. Of membrane Module: 40 |
|
Installation(Motor) |
Load ratio |
Electricity consumption |
|
167.7KW |
80% |
134.16KWH |
|
3. OEA Unit based on membrane for Steam-injected Boiler of oilfield. 2002 |
|
Oil saving: 8.5% |
|
4. OEA Unit based on membrane for Coal Boiler. 2000 |
|
1) |
4#coal boiler: |
|
Type: SZL4.2-1.0/115/70 |
|
Nominal power: 4.2MW |
|
2) |
OEA unit: |
|
O2%: 29& plusmn; 1% |
|
Capacity of oxygen enriched air: 200Nm3/h |
|
Installation(motor) of vacuum pump: 18.5KW |
|
Installation(motor) of blower: 4.0KW |
|
3)report data |
|
|
Without OEA unit |
With OEA unit |
|
Thermal efficiency |
61.82% |
67.73% |
|
Fuel gas Temperature |
142 centigrade |
137 |
|
The content of carbon in slag |
14.6 |
9.96 |
|
Coal saving rate |
9.56% |
|
5. OEA Unit based on membrane for Spresder-stoker boiler with 35ton. 2000 |
|
|
|
|
|
|
|
|
|
|
Without OEA unit |
With OEA unit |
|
|
|
|
Thermal efficiency |
66.27% |
75.62% |
|
|
|
|
|
The air excess coefficient of Fuel Gas |
5.04 |
1.45 |
|
|
|
|
|
Fuel gas Temperature |
180 centigrade |
126 |
|
|
|
|
|
The content of carbon in slag |
20.05 |
11.85 |
|
|
|
|
|
Energy saving: (75.62-66.27)/66.27=14.1% |
|
|
|
|
|
|
|
|
|
|
|
6. OEA Unit based on membrane for Heating furnace. 1999 |
|
|
|
|
|
|
|
|
|
1) |
Heating furnace: |
|
|
|
|
|
Type: AWO-10 |
|
|
|
|
|
|
Type of Fuel: Oil |
|
|
|
|
|
Rated power: 2500KW |
|
|
|
|
|
Rated efficiency: 90% |
|
|
|
|
|
|
|
|
|
|
|
|
|
2) |
OEA unit: |
|
|
|
|
|
O2%: 29& plusmn; 1% |
|
|
|
|
|
Capacity of oxygen enriched air: 200Nm3/h |
|
|
|
Installation(motor) of vacuum pump: 18.5KW |
|
|
|
Installation(motor) of blower: 4.0KW |
|
|
|
|
|
|
|
|
|
|
|
3) report data |
|
|
|
|
|
|
|
Without OEA unit |
With OEA unit |
|
|
|
|
Thermal efficiency |
70.54% |
78.20% |
|
|
|
|
|
Fuel gas Temperature |
220 centigrade |
213 |
|
|
|
|
|
The air excess coefficient of Fuel Gas |
2.51 |
1.63 |
|
|
|
|
|
Energy savings rate |
10.86% |
|
|
|
|
|
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe |
| Usage: |
Industry |
| Purifying Technology: |
Separate O2 And N2 |
| Type: |
Separate O2 And N2 |
| Structure: |
The Spiral Wound Membrane Modules |
| Size: |
8 Inches |
| Oxygen Vol. %: |
27%~30% |
| Flowrate: |
>30nm3/H |
Puricle products Co., Ltd., a high-tech single-investor enterprise, is registered in dalian high-tech industrial zone. We specialize in designing systems for membrane separation technology, research and development for process flow, manufacture for patent products and services for engineering technology.
Our company possesses a well-trained staff, including a passel of scientists and experts who specialize in research and application for membrane separation, seventy percent of our employees are engineering master, doctor and high/middle-grade technicians.
Puricle has quickened to make our hard-core technology indigenization, one-up in whole world and rivalrous in the membrane gas processing market while indraughting the technology.
Puricle products Co., Ltd. is researching, producting and empoldering market with new working philosophy. Puricle is looking forward to cooperating to empolder the limitless membrane market in China with strategical comrades.
