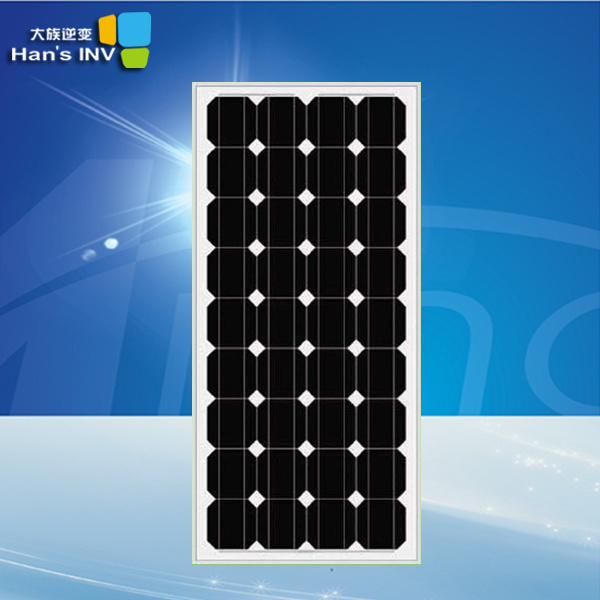

85W/90W/80W monocrystalline silicon energy solar panels
Specifications
1) Monocrystalline solar panels
2) Power tolerance -5%~+5%
3) CE, CQC, ISO Certification
4) Famous and Grade A solar cell Material
5) High efficiency crystalline solar cell
|
energy solar panels |
|
80/85/90 Watt Monocrystalline Solar Panel |
|
Model |
HI 90 M |
HI 85 M |
HI 80 M |
|
Electrical Characteristics |
|
Maximum power (Pm: Wp) |
90 |
85 |
80 |
|
Voltage at max power (Vmp: V) |
17.2 |
17.2 |
17.2 |
|
Current at max power (Imp: A) |
5.23 |
4.94 |
4.65 |
|
Open circuit voltage (Voc: V) |
21.6 |
21.6 |
21.6 |
|
Short circuit current (Isc: A) |
5.79 |
5.47 |
5.14 |
|
Operating Temperature (° C) |
45 |
45 |
45 |
|
Maximum System Voltage (V) |
1000 |
1000 |
1000 |
|
Power Tolerance |
± 5% |
± 5% |
± 5% |
|
Current Temperature Coefficient(%/K) |
0.06± 0.01 |
|
Voltage Temperature Coefficient(MV/K) |
-(78± 10) |
|
Power Temperature Coefficient(%/K) |
-(0.5± 0.05) |
|
Standard Test Condition: Irradiance 1000W/m2. Module temperature 25° C, AM=1.5 |
|
Mechanical Characteristic |
|
Solar cell |
Monocrystalline silicon solar cell 125*125mm |
|
No. of cells and connections |
36pcs(4*9pcs) |
|
Dimension of module |
1200*540*35 |
|
Weight |
8KG |
|
Junction Box |
IP65 Rated |
|
Warranty |
Pm is not less than 90% in 10 years and 80% in 20 years |
|
Resistances |
227gsteel ball down from 1m height and 60m/s wind |
Han's INV, committed to be one of the world-class experts for inverter and grid-connected technology, collects all the excellent experts and technology-based professors in the industry from R&D, design and manufacture to sale and provides all kinds of inverters to our customers, including on-grid inverters and off-grid inverters, covering the power from 1kw~500kw. Moreover, Han's INV can do the tailored design and production of the special function according to the customers' requirements.
Han's INV's excellent qualities and reliabilities based upon: Reliable project design; Top-class laboratory; Complete testing equipments; Well-known R&D experts and skilled workers in the industry; Quality management system through IS09001; Check point setting on every link and parameters testing; The application of famous domestic and international brand electric parts etc.
Regarding to the product ranging from 1kW to 500kW and the related price, Han's INV can provide the optimized individual business solution according to customer's requirements and affordable price.
Han's INV, with an area of 5, 000 square meters in Shenzhen city, Guangdong province, China, is welcoming your visit and business cooperation.
