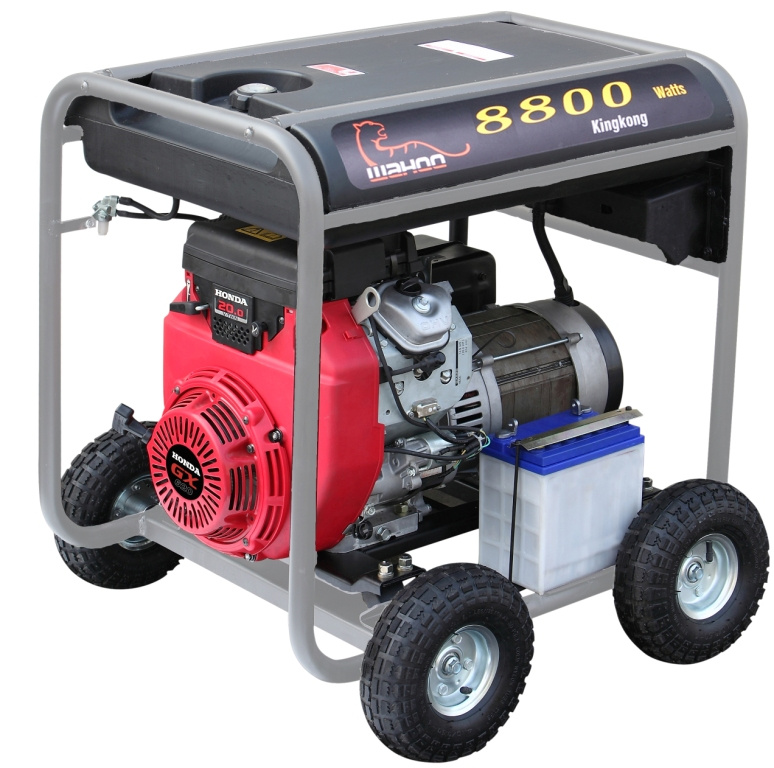

Model No.: WK10000E-3
GENERTOR
Frequency (Hz): 50
Rated Power (KW): 8.5
Max. Power (KW): 10.0
Rated Voltage (A. C) (V): 230/400 or 220/380
Speed(r/min): 3000
Power Factor: 1
Phase: Three
Pole No.: 2
Excitation way: Self-exciting and voltage-constant with AVR
Insulation: F
Noise (4m) dB: 97
Capacity of Fuel Tank (L): 38
Running time at Full Fuel Tank (h): 6
ENGINE
Engine model: GX620 or WH620
Type: 4-stroke, overhead valve, 2 cylinder (90º V-Twin)
Bore x Stroke (mm): 77*66
Total Displacement (mL): 614
Cooling systems: Forced cooling
Ignition System: Transistorized magneto
PTO shaft rotation: Counterclockwise
Engine oil Capacity (L): Without oil filter replacement; Approximately 1.5L
With oil filter replacement: Approximately 1.8L"
Fuel consumption: 313g/KWh
Starting system: Electric start
Fuel: Gasoline
SET
Net Weight (Kg): 148
Gross Weight (Kg): 154
Overall Dimensions (mm): 820*630*785
