Professional generator OEM factory in Guangzhou
SGS SONCAP
CUMMINS
10KVA 60KVA 100KVA 200KVA 250KVA 600KVA ARE AVAILABLE
Quick Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: JIUAN
Model Number: CDC80KW/100KVA
Output Type: AC Three Phase
Speed: 1500RPM
Frequency: 50HZ
Rated Power: 100KVA
Rated Voltage: 380V/220V
Rated Current: 152A
Genset Engine: Cummins USA Brand
Genset Alternator: Stamford Leroy Somer Marathon Faraday
Genset Controller: Smartgen 6110 or Deepsea 7320
Genset Inspiration: Turbocharger
Genset Canopy: Silent or Super silent
Genest noise level: 68dB(A) at 1 meter
Genset Fuel tank: 24 hours continuous running
Genset Cinlinders: 6
Packaging & Delivery
Packaging Details: Standard Export Packing Pollywood or Ironframe
Delivery Detail: STOCK
Specifications

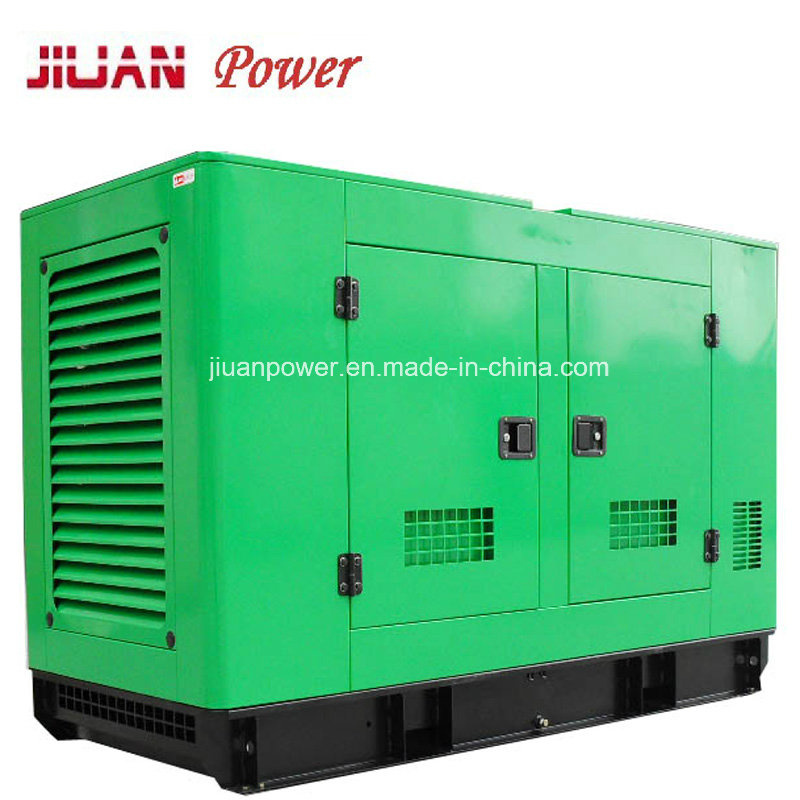

100KVA Genset powered by Cummins engine
1. Strong Power run stable fuel save
2. Auto start stop
3. With 4 protection
4. Factory
MODEL | CD-C80 KW /100KVA |
Powered by Cummins Engine |
Prime Power (50HZ) | 80KW/100KVA |
Standby Power (50HZ) | 85 kw/1 06 KVA |
Power Factor | 0.8 ( Lagging ) |
Phase Wires | 3-phases 4-Wires |
Start Model | Electric |
Protection | Low oil-pressure, High water temperature,
Over-speed, Over-current |
Engine Model | DCEC Cummins 6BT5.9-G 1 4-Cycle |
Cylinders | 6 |
Cylinder Arrangement | L |
Bore x Stroke(mm) | 102X 120 |
Compression Ratio | 17.5:1 |
Speed | 1500rpm |
Cooling Method | Water – cooled |
Starting Method | 24V DC electrical start |
Full Load Diesel Consumption (L/H) | 22 |
Engine Displacement (L) | 5.9 |
Inspiration (L) | Natural |
Lube Volume (L) | 14.3 |
Coolant Volume (L) | 25 |
Noise (Db) | ≤ 80 |
Alternator Model | Newage Stamford UCI274C or Leadtech LTG274C |
Alternator Power | 80KW/100KVA Brushles with AVR |
Voltage | 380/220V,400/230V, 415/240V, 220/127V |
Protection | IP23 |
Voltage Regulation | ±4% |
Insulation Class | H |
Voltage Control | AVR |
Net Weigh (KGS) | 1400 |
Dimensions (L x W x H) mm | 2 6 00*1 1 0 0 *1700 (S)
3300*1100*1800 (Super silent) |
Controller | Smartgen 6110 or Deepsea 7320 |
Standard | Muffler * 2PCS |
| Battery 80A * 2 PCS |
Optional | ATS (auto transfer switch) |
| AMF(auto mains failure) |
| Trailer |
Diesel Generator Set 1 00KVA |
Generator Specifications | Generator Model | CDC100KVA/80KW |
Generator Prime Power | 100KVA/80KW |
Generator Standby Power | 106KVA/85KW |
Generator Engine Model | DCEC Brand New Cummins |
Generator Alternator | Stamford;Marathon;Leroy Somer;Faraday;Stamford copy |
Canopy for Choice | Super silent;Silent;Open frame;Trailer |
Controller | Smartgen or Deepsea |
Dimensions (L*W*H) | 2600*1100*1700(S) 3300*1100*1800(supersilent) |
20FT/40HQFT Container | 2PCS/4PCS |
Generator Warranty | 1800 hours or 1 year subject to the ealier one. |
Generator MOQ | 1PCS |
Certificate | SGS;Cummins Authorized Factory;TUV;Soncap |
Payment | T/T or Cash |
Please give detail needs in your inquiry, so that we can make power solutions for you. |
Guangzhou Jiuan Mechanical & Electrical Co., Ltd. is a professional generator manufacturer and exporter with generator capacity from 2kVA to 2000kVA. Generator can be powered by Cummins, Perkins, ISUZU, KUBOTA and Chinese engine. Welcome to chose our products and don' T hesitate to contact us.
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 1500kVA
2. Perkins (UK) 8kVA-1000kVA
3. Deutz (Germany) 20kVA - 150kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Kubota (Japanese) 7kVA-50kVA
6. Lovol (China) 20kVA - 150kVA
7. Yangdong (China) 8kVA - 40kVA
8. Weichai (China) 8kVA - 150kVA
9. Shanghai Engine
10. Yuchai Engine
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
* Alternator for Choice
1. Stamford
2. Leroy Somer
3. Marathon
* Controller
1. Smartgen
2. Deepsea (UK Brand and imported)
