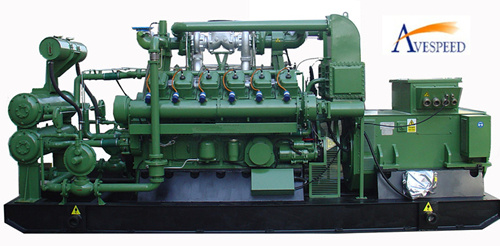

80kw flexible fuel quality biogas generator set
The Reasons For Choosing AVESPEED Gensets:
1. Flexible installation capacity
Customers can install appropriate number of units of generators according to specific load requirement. The unit capacity of AVESPEED generator ranges from 30kw to 600kw. The capacity of the engine can be increased easily to meet the requirement of increasing load thereby reducing shortage of power supply or avoiding excessive installation capacity.
2. Flexible system operation
With the features of quick starting, synchronization and quick on-load, when power supply is needed, customer can start generator according to specific load. No matter how long the generator operates per year, AVESPEED generator will provide power supply with consistent efficiency.
3. Flexible installation site
The installation of generator could be centralized or in distribution. If the location of the system load is frequently changed, containerized generator is an option.
4. Flexible maintenance plan
Flexible maintenance plan can be made for generator in parallel operation. The customer can opt to maintain the generator by rotation, so the power supply of the system will not be interrupted during maintenance. Maintenance of one generator will not affect the normal power supply of other generators.
The core business of AVESPEED was research and manufacturer of gas engines but now the main business has expanded to cover the following industries:
1. Comprehensive utilization of coal mine gas
2. Renewable energy industry
3. Gas power generation industry
4. Land & marine diesel power industry
5. Petroleum equipment and oil pope industry
6. Overhaul & industry
7. Alternator & electrical control industry
|
Biogas Generator Set |
Generator Set |
Type |
50GF-PZ |
60GF-1PZ |
80GF-PZ |
140GF-PZ |
|
ekW |
50 |
60 |
80 |
140 |
|
LxWxH (mm) |
2200x900x1650 |
2650x1100x1650 |
2650x1100x1650 |
3160x1410x1814 |
|
Weight (kg) |
1250 |
2410 |
2530 |
3250 |
Engine |
Type |
Z4135 |
Z6135 |
Z6135A |
T12V135DK |
|
Bore x Stoke (mm) |
135x150 |
135x150 |
135x160 |
135x158 |
|
Displacement (L) |
8.60 |
12.90 |
13.7 |
27.10 |
|
Speed(rpm) |
1500(50Hz) |
|
Speed(rpm) |
1800(60Hz) |
|
Starting Mode |
24VDC Electric starting system |
|
Cooling type |
Closed water cooling |
|
Governing Method |
Electronic governor |
Generator |
Type |
DL2F 56GF |
DL2G 64GF |
DL3C 80GF |
DL3G 144GF |
|
Rated Voltage (V) |
400 |
400 |
400 |
400 |
|
Current (A) |
90 |
108 |
144 |
90 |
|
Power factor |
0.8(Lagging) |
|
Phase and connection |
3 phases 4 wire,Y-connection |
|
Excitation |
Brushless |
|
V-regulator |
Automatic |
Control Panel |
Feature |
Power by 24 volts DC,Degree of protection IP54,Lockable hinged door,start/stop control switch, Voltage adjustment. |
Data Views |
RPM,Operating hours, The total generating capacity,Oil pressure, Coolant temperature,DC voltage,Hz,ekW,Frequency,Voltage, pf,Exhaust temperature, Engine cylinder temperature, Speed. |
Protection Functions |
Low oil pressure; High coolant temperature; High oil temperature, Over speed,Emergency stop,Under/Over voltage,Under/Over frequency, Over current Reverse power, |
|
Spare |
Spare indicator LEDs ,Spare alarm/shutdown inputs |
Beijing Avespeed Commercial & Trading Co., Limited is the leading manufacturer and supplier of diesel engines for marine propulsion, marine Gen-sets, stationery Gen-sets and power plant applications in China. AVESPEED manufactures diesel engines with unit output from 150KW to 4500KW, which can be used as propulsion of merchant vessels and special vessels from 1000 to 30000 tons DWT. AVESPEED manufactures marine auxiliary diesel generators with unit output from 150KW to 4500KW and stationery HFO generators with unit output from 500KW to 8000KW.
AVESPEED designs and builds turn-key power plant with an output up to 100MW as base load power plant, peaking power plant or industrial self-captive power plant in cement, textile, mining or oil and gas industries etc. The power fuel can be diesel oil, bio-diesel, heavy fuel oil (HFO) or bi-fuel. AVESPEED has been set up more than 200 heavy fuel oil (HFO) power plant projects in the world in recent years, especially in Nigeria, we have set up more than 60 HFO power plant projects there.
All of our marine diesel engines have achieved type approvals and work test approvals of, CCS, China Ships Inspection Bureau, and China Fishing Ships Inspection Bureau. Many products are rated as "National Grade New Products" and "Industry Brand Products" and awarded with "National Prize for Progress in Science and Technology", Now AVESPEED diesel engines are widely used for deep sea fishery, inshore fishing ships, ocean shipping, inland water navigation, passenger cargo ship transport, harbor tug, engineering ships, enforcement ships, naval auxiliaries etc.
New energy products developed in recent years including natural gas generator sets, biomass generator sets, tyre oil/vegetable generator sets and dual-fuel generator sets with unit output from 50KW to 1000KW.
AVESPEED also involves in the development and manufacture of the crystal silicon (mono and poly) solar panel/module, photovoltaic system, and other photovoltaic products. We supply solar panels ranging from 45W to 290W. AVESPEED's on-grid and off-grid inverters are the sole in China certified by TUV. The PV inverters range from 1KW to 1000KW.
Our products and manufacturing processes fully comply with product safety requirements, including TUV/IEC61215 & 61730, CSA/UL1703, MCS, CE and UKAS. Additionally, we have implemented best practices to protect the environment and conserve energy.
So far, our customers spread dozens of countries and regions in Europe, Middle East, Africa, South America, Southeast Asia and West Asia. AVESPEED is willing to cooperate with relevant famous enterprises and far-sighted, strong-willed and talented people at home and abroad by supplying our high-quality products and excellent service.
