As a big 19-year OEM factory specialized in manufacturing, sales and leasing Services. We can provide Diesel Generator Set, Moving Tailer Gen-sets, Silent Generators, Electric Generating, Natural Gas Generation under the famous brand of CUMMINS, DEUZT, CATERPILLAR, SHANGCHAI(SEDC), YUCHAI, with power ranging 0.65-3000kVA; AC alternator under the brand of STAMFORD, MARATHON, FARADAY and Siemens. We also offer spare parts for SFH, SEDC and HINO.
80kVA diesel power generators:
Soundproof/Silent box:
-Excellent ventilation
-Fuel tank mounted on baseframe for 12 Hours working
-Highly Corrosion Resistant construction
-Excellent Access for Maintenance
-Security and Safety
-1m<80DBA / 7m<70DBA
Control panel:
-Automatic control panel(AMF), LED display.
-Four protection systems
-Emergency stop
-DSE/COMAP/SMARTGEN/HARSON
Optional:
- Trailer type
- Soundproof / water proof
- ATS(automatic transfer switch)
- water Heater
- Parallel system
- Remote system
|

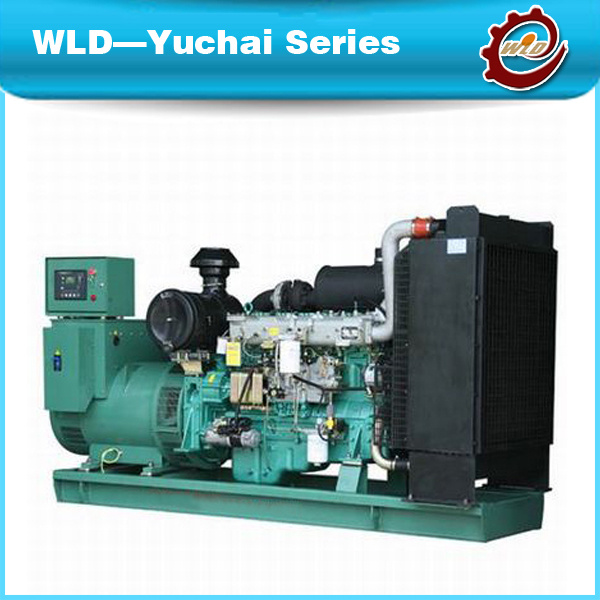

64kw/80kva Yuchai diesel power generators parameter |
|
Genset Specification : |
|
Genset Modle |
DY64 |
|
Dimension(mm) |
2160*780*1350 |
|
Weight(kg) |
1300 |
|
Prime Power(KW) |
64 |
|
Rated current (A) |
115 |
|
Engine Features: |
|
Enginemodel |
YC6B100-D20 |
|
Type of Governor |
mechanical governor |
|
Type |
6 cyclinder |
|
Bore*Stroke(mm) |
105*125 |
|
Compression ratio" |
16.5 |
|
Voltageregulation |
±0.5% |
|
fuel consumption rate(g/kw.h) |
≤209g/kw.h |
|
Alternator Features: |
|
brand |
Stamford, Simens, Marathon, Faradyat option |
|
AVR model |
R448 V50 |
|
Numberofphase |
3 |
|
Overspeed |
2250RPM |
|
Excitertype |
AREP |
|
Sustainedshortcircuitcurrent |
300% (3 IN) : 10s |
|
Insulation class |
H |
|
protection class |
IP22 |
|
Totalharmonics (TGH/THC) |
< 3.5 % |
|
Waveform NEMA = TIF |
<50 |
|
Waveform I.E.C. = THF |
<2% |
|
Bearing |
single |
|
Coupling |
Direct |
