| Price: | US $ 550/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
MAX series wind turbine advantages
1.SKF Sweden original import bearing, low temperature resistant of -40 degrees , adapt to the alpine areas (Tibet, Xinjiang, Inner Mongolia, Northeast China, Russia, Europe, Canada), longer service life.
2.Do not use recycled aluminum, the use of Guangxi Pingguo primary aluminum, free of impurities, higher hardness.
3.The machine adopts the Taiwan Dongming 304 stainless steel screws, brand, quality assurance, no rust and fracture, enhance its durability and life expectancy
4.blade and hub unique patented design, first inserted connection, also can let them closely connected without using screws, leaves will not fly off, effectively ensure the safety
5.Nylon / glass fiber composite high strength blade, resistant to -40 degrees is not broken, anti UV UV aging, longer life. High fracture strength , not harmful to personal safety. Enhancement and thickness design of blade, high density and intensity pressure injection, better ablility of wind resistance ,and reduces the noise.
6.Get rid of the circular motor design, innovative unique square design, be in line with the idea of modern industry design standards. No exposed screws position affecting the appearance, to abandon the traditional single screw connecting stress, innovation patent design, motor and the host machine body adopts embedded connection, so that the overall motor and blade stress is uniformly distributed on the circular mosaic surface, enhancing the safety and beauty.
7.Body rotation yaw sleeve, the first use of built-in type design, more beautiful. Yaw shaft built-in way, make the yaw and the host machine body increased upper and lower connecting area, uniform stress distribution, safe and beautiful
8.Longer tail rudder design, enhance the ability of matching wind, giving higher generation efficiency. The use of novel high-quality aerospace industry level color galvanizing technology, longer oxidation time , more suitable for highway confronting sulfur, nitrogen, carbon,also for mountain with heavy water ,heavy sea salt mist, heavy fog area.
9.Shaft end inserts bolt, double insurance, prevent the wheels fly off, hurting others safety

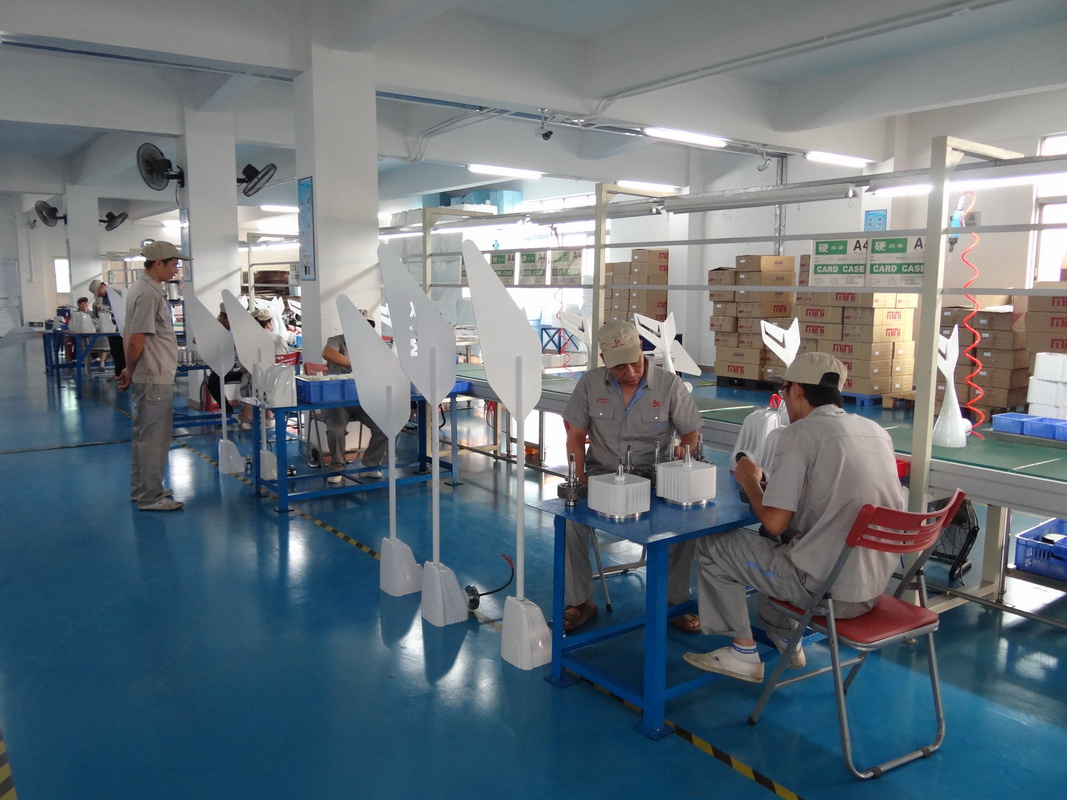

Our factory

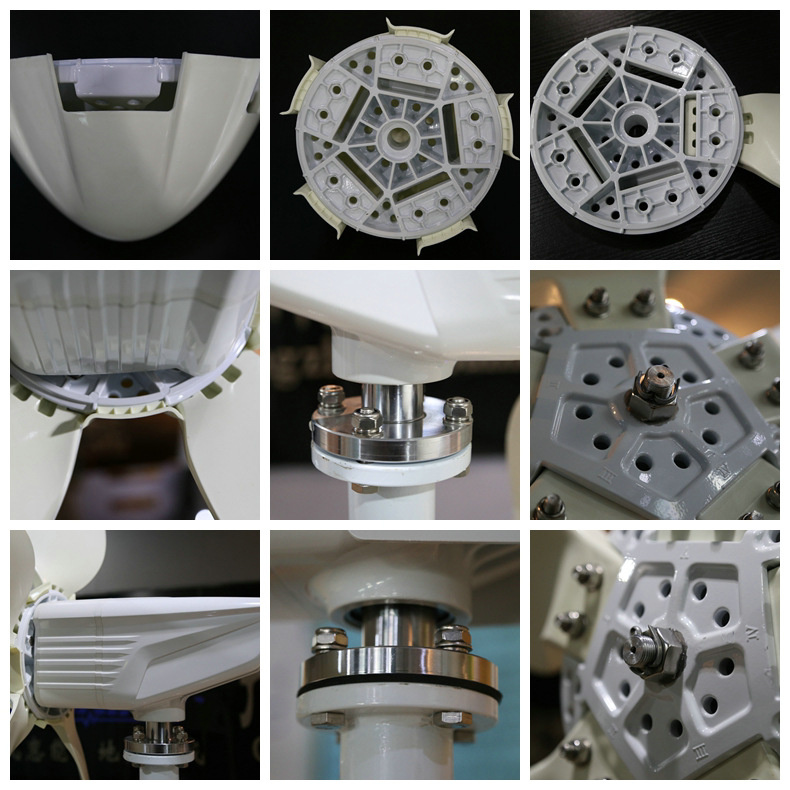

Detail picture:
| MAX 800W Wind Turbine Technical Specifications | |
| Rated output power | 800W |
| Maximum outpower | 900W |
| Start-up wind speed | 1.5M/S |
| Cut-in wind speed | 2.0M/S |
| Rated voltage | 48V |
| Rated RPM | 650 |
| Rated wind speed | 12M/S |
| Rated current | 16.7A |
| Rotor diameter | 1.8M |
| Body | Cast aluminum |
| Blades | 5 PC Nylon Fiber |
| Overspeed Protection | The controller of Electromagnetic braking magnetic damping and blades stall |
| Working temperature | -40°c~120°c |
| Survival Wind Speed | 35 m/s |
| Type of generator | Brushless three phase permanent magnet generator |
| Connection | Flange connection |
| Controller | PWM/MPPT controller |
| Certificate | ISO9001:2008 CE RoHs |
| Warranty | 3 year limited warranty |
| Prod Model: | MAX800W-48V |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Output Power: | 800W |
| Maximum Outpower: | 900W |
| Rated Voltagerated Voltage: | 48V |
| Start-up Wind Speed: | 1.5m/S |
| Cut-in Wind Speed: | 2.0m/S |
| Rated Rpm: | 650 |
| Rated Wind Speed: | 12m/S |
| Rotor Diameter: | 1.8m |
| Blades: | 5 |
| Rated Current: | 16.7A |
| Rotating Shaft: | Horizontal |
| Number Of Blade: | Multiple-Blade |
| Stress Way Of Blade: | Resistance |
