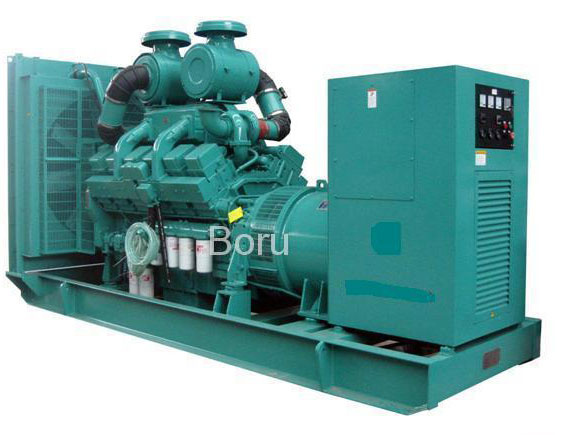

GEN-SET MODEL RY-C800GF
Standby Power 880KW
Prime Power 800KW
Rated Frequency 60Hz
Rated Voltage 400V/230V
Engine Generator
Brand CUMMINS Brand STAMFORD
Engine Model KTA38-G5
Generator Model LV634E
Output Power(kw) 970
Power(kw) 800kw
Cylinders/stroke 12 cylinders/4 stroke Phase 3 phase, 4 wire
Cylinder type V type
Rated Voltage 400/230V
Bore*Stroke(mm) 159*159
Rated Frequency 60Hz
Compression ratio 13.9: 1
Power factor 0.8(lag)
Displacement(L) 38
Excitation Method Brushless
Starting system DC start
Voltage Regulator automatic voltage regulator AVR2000E
Battery A/Hh 200*2
Insulation Class H/H
Battery Voltage(V) DC 24
Protect Class IP22
Frequency Regulation Cummins EFC system
Relative voltage adjust scope ≤0-5%
Frequency fluctuating range 0-5%
Steady state voltage deviation 1%
Steady state frequency range 0.5%
Voltage wave frequency ≤1%
Lowest Start Temperature 7C
Transient voltage fluctuating ≤+20%/-15%
Lubricating oil tank capacity(L) 135
Transient voltage settling time ≤3sec
Exhaust temperature(backup loading) 555C
Fan loading(KW) 24.6
100%loading fuel consumption(L/H) 203
Refrigerant capacity(Engine and dissipator)(L) 197
Cooling system Fan closed cycle cooling
Dimension (mm) 4610(L)*1980(W)*2350(H)
Weight(KG) 8373
