Ratings

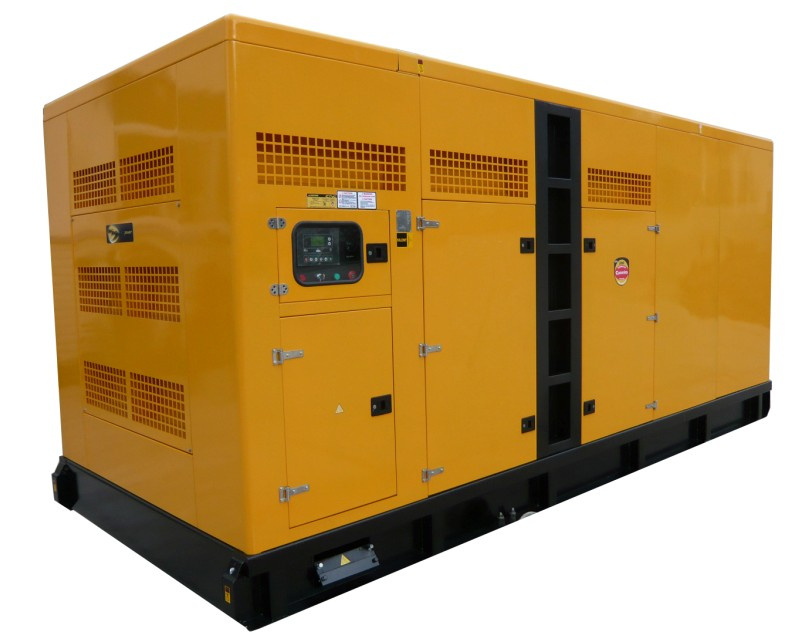

Prime Power 1000kVA / 800kW
Standby Power 1100kVA / 880kW
Ratings at 0.8 power factor
Ambient reference conditions: 1, 000 mbar, 27, 30% relative humidity;
Standby Power Standby duty, operation under variable load, without over load;
Prime Power-Continuous duty operation, under variable load 24/24h-10% over load permissible 1 hour/12 hours;
Performance Data
Engine Brand & Model Cummins & QST30-G4
Alternator Brand & Model Stamford & LVI634E
Control System DSE7220
Engine Brand / Model: Cummins / QST30-G4
No. Of Cylinders / Alignment 12 / V
Prime 880 Gross Engine Power
Cycle 4 Stroke
Standby 970
Bore / Stroke 140 mm / 165 mm
Compression Ratio 14: 1
Aspiration TA
Displacement (L) 30.48
Cooling Method Water
Governing Type Electronic
Lubricant Oil 15W40-CF4 Upgrade
Net weight (kg) 6640
Alternator Brand / Model: Stamford / LVI634E
Rated Output 1000 kVA
Rated Current 1443.4 A
Exciter Brushless
THF(BS EN60034 -1) <2%
Bearing Number Single
Windings 100% Copper
Silicon Steel Core Processing One Piece Punching
Insulation Class H
Winding Pitch 2 / 3
Amortisseur Winding Full
A. V. R. Model AS480
Voltage Regulation (no load- full load) ± 1.0%
Underspeed Protection Standard
Protection IP23
Phase Sequence A(U), B(V), C(W)
TIF(NEMA MG 1-22) <50
Excitation System Self-excited, SHUNT
Ambient Temp 50
Stator Rated Temp 125
