Type | Rated Output(kw) | Rated Capacity(kva) | Net weight(kg) | Gross weight(kg) | dimension |
Single phase 230V 50Hz / Three-phases 400V 50Hz |
EM164A | 6.5 | 8.1 | 85 | 95 | 56*46*64 |
EM164B | 8.8 | 11 | 90 | 102 | 56*46*64 |
EM164C | 10.8 | 13.5 | 96 | 110 | 56*46*64 |
EM164D | 12.8 | 16 | 99 | 116 | 56*46*64 |
EM184E | 18 | 22.5 | 120 | 133 | 84*59*75 |
EM184F | 22 | 27 | 150 | 156 | 84*59*75 |
EM184G | 25 | 31.3 | 156 | 172 | 84*59*75 |
EM184H | 30 | 37.5 | 216 | 226 | 85*55*85 |
EM184J | 32 | 40 | 226 | 236 | 85*55*85 |
EM224C | 34 | 42.5 | 235 | 255 | 108*66*94 |
EM224D | 40 | 50 | 250 | 270 | 108*66*94 |
EM224E | 48 | 60 | 270 | 290 | 108*66*94 |
EM224F | 58 | 72.5 | 310 | 330 | 108*66*94 |
EM224G | 68 | 85 | 350 | 370 | 108*66*94 |
EM274C | 80 | 100 | 385 | 415 | 125*76*102 |
EM274D | 91 | 114 | 405 | 435 | 125*76*102 |
EM274E | 112 | 140 | 455 | 485 | 125*76*102 |
EM274F | 128 | 160 | 500 | 530 | 125*76*102 |
EM274G | 140 | 175 | 550 | 580 | 125*76*102 |
EM274H | 160 | 200 | 600 | 630 | 125*76*102 |

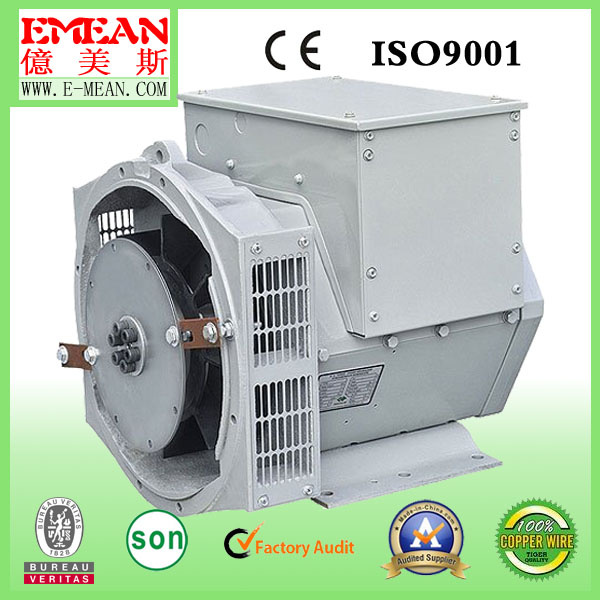

TWG series, three-phase brushless synchronous generator is our newly developed one, by introducing
Foreign advanced technology of well-known generator. Its body is constructed by steel shell and
Its rotor is made as whole salient pole type with full damping, it utilize brushless self exciting
Method and automatically controlled by AVR. It features small-size, light-weight, delicate
Appearance and perfect performance.
The technical performance and mounting dimension of TWG series generator is coincident with
International IEC norm and relevant national standard to fulfil, the quality of which can reach
Up-to-day international level. Main performance index:
1. Four-pole brushless controllable self-exciting, drip-leak-Proof; ( IP21 protect class), class F
Insulation. 2. Full-damping whole salient construction guarantee generator to operate stably in
Any condition, and enable it to overspeed running under 150% rated r/p/m.
3. Adjusting rate of stable voltage<± 1%, adjusting rate of instant voltage: -15% ~+20%
4. Wave aberration rate of voltage, harmony wave factor of telephone THF<2.5%, effective factor of
Telephone TIF<50
Applications This series generator has been extensively utilized as a standby power supply on post
And telecommunication institutes, banks, stock exchange centers, airports, hospitals, hotels,
Commercial building and factories. It can also be applied as a prime power supply for ships,
Mines, and armies as well as highway construction and other rugged environment
Same as TFW2 series, GXG series alternators/generators also are three-phase brushless a. C. Synchronous alternators/ generators and have the same characteristic. GXG series brushless three phase a. C. Synchronous alternators/ generators are the newest products. GXG series alternators construction and shape are different from TFW2 series alternators, these are the most different between GXG and TFW2. GXG series alternators/generators are designed to meet market`s requirement.
MECHANICAL SPECIFICATION
1. Any permanent magnetic generators, providing invariable excitation on all occasions.
2. Easy to be connected with power network or other generators. Standard 2/3 pitch windings Check excessive midline current.
3. Balanced rotor with single or two sealed ball bearings. 4. Convenient installation and maintenance
4. With easy access to terminals, rotating diodes and coupling bolts.
5. Wide range of Flange adaptor and single bearing coupling disc.
6. Meet leading standards.
