7kVA to 36kVA Renewable Energy Vegetable Oil Generator
| Price: |
US $ 3540-326300set/sets |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set/sets |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
7kva to 36kva renewable energy vegetable oil generator
Product description:
Kubota diesel generator widely used in the area of industry, railway and construction. The engine is imported from Japan. The global service net of Superwatt and Kubota can provide our customers with reliable and guaranteed service.
Gense Features:
1.Composed of of Kubota diesel engine and Stamford or Leroy Somer alternator
2.12V DC start motor and storage battery
3.Brushless, Self-excited, IP23, insulation class H alternator
4.40°C radiator as standard, 50°C is optional
5.Key start panel control system as standard, digital auto-start panel is optional
6.8-hour operation base tank
7.All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load, 110% load and all protection function
Engine Features:
1. World most famous brand diesel engine: Kubota
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily
Alternator Features:
1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate:≤±1%
Control system:
1. Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current.
2. Operation display:
a) Unit voltage, tri-phase load current and frequency display
b) Water temperature, oil pressure display
c) Fuel level, fuel temperature display
d) Audible and visual alarm lamps and buzzers
Accessories:
1) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document.
2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.
You must also like these generator sets:
Product packages:

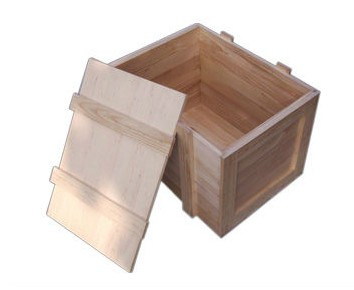

Export wooden case (standard) or Plywood case (Optional)
|
Genset Model |
Prime Power (kva) |
Engine Model |
Cynlinder No. |
Bore x Stroke |
Displace -ment |
Compression Ratio |
Packing (mm) (L x W x H) |
|
GNR-K10 |
10 |
V1505-E2BG-CHN-1 |
4 |
78 x 78.4 |
1.498 |
24:1 |
2000 x 960 x 1100 |
|
GNR-K13 |
12.5 |
D1703-E2BG-CHN-1 |
3 |
87 x 92.4 |
1.647 |
23:1 |
2000 x 960 x 1100 |
|
GNR-K18 |
17.5 |
V2203-E2BG-CHN-1 |
4 |
87 x 92.4 |
2.197 |
23:1 |
2000 x 960 x 1100 |
|
GNR-K20 |
20 |
V2003-T-E2BG-CHN-1 |
4 |
83 x 92.4 |
1.999 |
23:1 |
2000 x 960 x 1100 |
|
GNR-K28 |
27.5 |
V3300-E2BG2-CHN-1 |
4 |
98 x 110 |
3.318 |
22.6:1 |
2300 x 1100 x1300 |
|
GNR-K35 |
35 |
V3300-T-E2BG2-CHN-1 |
4 |
98 x 110 |
3.318 |
21.8:1 |
2300 x 1100 x1300 |
| Prod Model: |
GNR-K35 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Key Word: |
Vegetable Oil Generator |
| Genset Model: |
Gnr-K35 |
| Engine Model: |
V3300-T-E2bg2-Chn-1 |
| Cynlinder No.: |
4 |
| Bore X Stroke(Mm): |
98 X 110 |
| Displacement: |
3.318 |
| Compression Ratio: |
21.8:1 |
| Packing (Mm) (L X W X H): |
2300 X 1100 X1300 |
Beijing Avespeed Commercial & Trading Co., Limited is the leading manufacturer and supplier of diesel engines for marine propulsion, marine Gen-sets, stationery Gen-sets and power plant applications in China. AVESPEED manufactures diesel engines with unit output from 150KW to 4500KW, which can be used as propulsion of merchant vessels and special vessels from 1000 to 30000 tons DWT. AVESPEED manufactures marine auxiliary diesel generators with unit output from 150KW to 4500KW and stationery HFO generators with unit output from 500KW to 8000KW.
AVESPEED designs and builds turn-key power plant with an output up to 100MW as base load power plant, peaking power plant or industrial self-captive power plant in cement, textile, mining or oil and gas industries etc. The power fuel can be diesel oil, bio-diesel, heavy fuel oil (HFO) or bi-fuel. AVESPEED has been set up more than 200 heavy fuel oil (HFO) power plant projects in the world in recent years, especially in Nigeria, we have set up more than 60 HFO power plant projects there.
All of our marine diesel engines have achieved type approvals and work test approvals of, CCS, China Ships Inspection Bureau, and China Fishing Ships Inspection Bureau. Many products are rated as "National Grade New Products" and "Industry Brand Products" and awarded with "National Prize for Progress in Science and Technology", Now AVESPEED diesel engines are widely used for deep sea fishery, inshore fishing ships, ocean shipping, inland water navigation, passenger cargo ship transport, harbor tug, engineering ships, enforcement ships, naval auxiliaries etc.
New energy products developed in recent years including natural gas generator sets, biomass generator sets, tyre oil/vegetable generator sets and dual-fuel generator sets with unit output from 50KW to 1000KW.
AVESPEED also involves in the development and manufacture of the crystal silicon (mono and poly) solar panel/module, photovoltaic system, and other photovoltaic products. We supply solar panels ranging from 45W to 290W. AVESPEED's on-grid and off-grid inverters are the sole in China certified by TUV. The PV inverters range from 1KW to 1000KW.
Our products and manufacturing processes fully comply with product safety requirements, including TUV/IEC61215 & 61730, CSA/UL1703, MCS, CE and UKAS. Additionally, we have implemented best practices to protect the environment and conserve energy.
So far, our customers spread dozens of countries and regions in Europe, Middle East, Africa, South America, Southeast Asia and West Asia. AVESPEED is willing to cooperate with relevant famous enterprises and far-sighted, strong-willed and talented people at home and abroad by supplying our high-quality products and excellent service.
