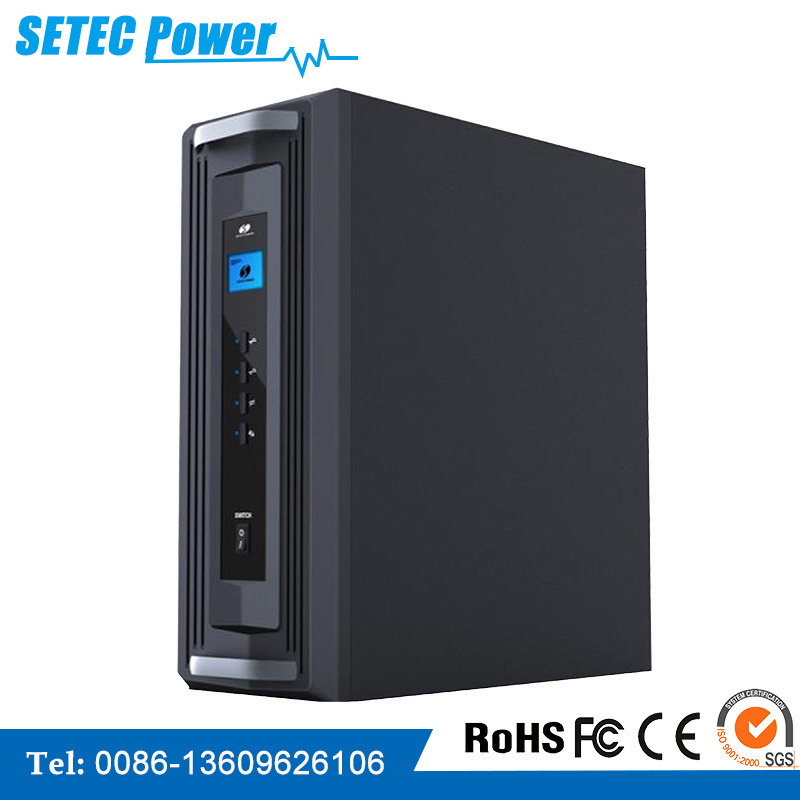

Quick Details
1. High efficiency >85%
2. LCD display
3. Rated capacity: 5KVA-7KVA
4. Used for telecom, utility and home use.
5. Input: 48VDC
6. Output: 220VAC
7. High frequency
8. Power factor: 0.7
9. Off-grid type
10. Two work mode: DC as mains and AC as mains
11. Standalone type and 19inch rack mount type
Main Characteristics
Software protection and hardware protection, high reliability
Perfect protection: Input polarity reverse, input over/under voltage, over current, short circuit, over heat. Also the soft start function
3 Layers composite filter and magnetism shielded which and reduce the reflect noise voltage to the input port, perfect electromagnetism compatibility.
Intelligent Fan
Can connect with pure sensibility load (Should reduce voltage)
Specifications
|
Rated Capacity(VA) |
1000 |
2000 |
3000 |
4000 |
5000 |
6000 |
7000 |
8000 |
9000 |
10000 |
|
Work mode |
DC as mains or AC as mains |
|
Wave shape |
Pure Sine Wave |
|
DC Input |
|
Rated input voltage |
24V/48V |
48V |
|
Rated input current(A) |
50/24 |
100/48 |
150/72 |
200/96 |
119 |
125 |
143 |
167 |
214 |
238 |
|
Turn-off voltage range |
24Vdc (20V-30V) 48Vdc(42V-59V) |
|
Turn-on voltage range |
24Vdc (22V-28V) 48Vdc(45V-57V) |
|
Anti-noise current irrigation |
≤10% |
|
|
AC Input |
|
Allow bypass voltage |
265V-185V(±10V) |
|
Rated input current(A) |
5.4 |
10.8 |
16.2 |
21.6 |
22.7 |
27 |
37.8 |
36.4 |
43.2 |
54 |
|
Bypass transfer time(ms) |
≤5ms |
|
Power factor |
0.8 |
0.7 |
|
Rated capacity(VA) |
1K |
2K |
3K |
4K |
5K |
6K |
7K |
8K |
9K |
10K |
|
Rated output power |
800W |
1600W |
2400W |
3200W |
3500W |
4200W |
4900W |
5600W |
6300W |
7000W |
|
Rated output current |
3.6A |
7.2A |
10.9A |
14.5A |
16A |
19.1A |
22.3A |
25.5 A |
28.6 A |
31.8 A |
|
Output voltage accuracy |
220 V±1.5% |
|
Output frequency accuracy |
50Hz±0.1% |
|
Waveform distortion |
≤3% |
|
Dynamic Response Time |
0.05 |
|
Overload |
120%,30s |
Inverter efficiency
(80% Resistive load) |
≥85% |
|
Work Condition |
|
Dielectric Strength |
input & output 1500Vac,1min |
|
Noise(1m) |
≤40dB |
|
Ambient temperature |
-25 to 50 degree |
|
Humidity |
0~95%,Non-condensing |
|
Altitude(m) |
≤1500 |
|
Cooling |
Fan cooling |
|
Interface |
|
HMI |
LCD+LED display |
|
Communication interface |
RS232/RS485/RJ45(Choose one) |
|
Dry contact load output |
2ch /3 ch output ( Choose one) |
|
Optional |
TCP/IP network interface |
|
Full protection |
Input under/over voltage; output overload, short circuit protection; AC input high and low voltage
|
