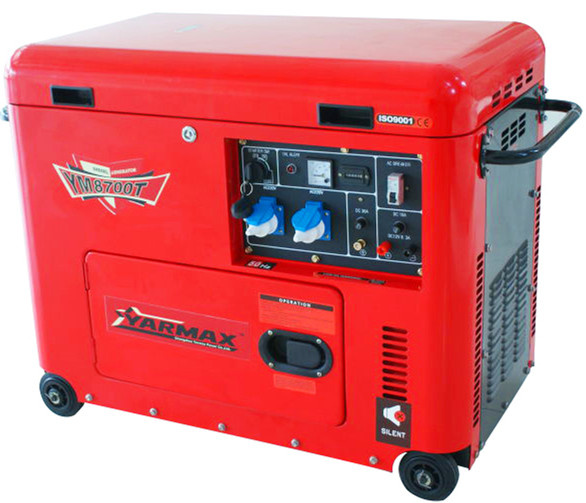

7kVA Air Cooled Silent Type Diesel Generator
Price: |
US $ 460-568pc |
Trade Terms: |
FOB |
Min Order: |
3PCS |
Pay Type: |
L/C,T/T,D/P |
Products Range:
Air Cooled Diesel Generator: Range from 2KVA t0 7KVA;
Water Cooled Diesel Generator: Single set, range from 8KVA to 5000KVA;
Air Cooled Diesel Water Pump: Range from 1.5 inches to 6 inches
Welding Generator: Welding Current range from 60A to 250A
Details for Air Cooled Diesel Generators:
The open skid mounted generator can have optional wheels and hand kits, Electric start or manual starting.Small-sized diesel generator sets includes open type and silent type.Our small-sized diesel generator sets adopt different diesel engines and brushless generators.Generally adopt 1-cylinder&4-stroke&air-cooled engine, low fuel consumption, high reliability;It is easy to maintain as adopting brushless A.C.Generator and CDI ignition system.The types of generator sets are quick-starting, stable-running, little vibration, low noise, light weight, small volume, compact structure, suitable for areas on mining, factory, working on field, engaging in construction and army as movable power or electric power in ship, also suitable for areas on animal husbandry, fishery, forest, orchard, guesthouse and business as standby power.
Characteristics:
1.100% Output and 100% copper wire.
2.Electromagneic type breaker to protect the generator being damaged.
3.Big enough free maintenance battery, world famous brand.
4.Packing with Strong and thick enough carton box to protect the gensets during long transporation.
5.Customerised logo is available.
6.Every spare parts suppliers are choosed extremely stricted, to control the quality well.
7.From engine to whole genset, we test every link of every product, and we also have test machinery and test center.
8.Many spare parts are produced by ourselves, could save cost for customers greatly.
9.We welcome every customer visiting our factory and test our products.

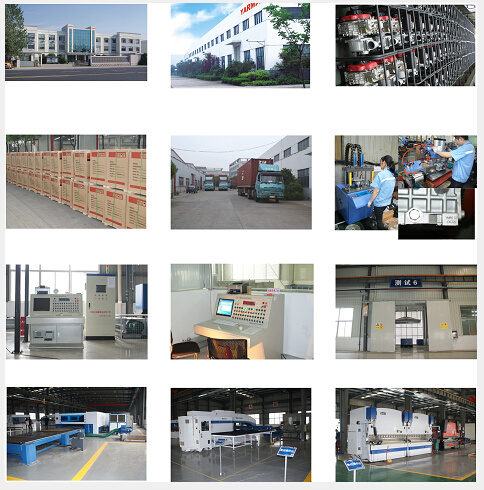

Factory Show:
Specifications:Model | YM9800TN |
Rated frequency | 50 60 |
Rated output(kVA) | 6.5 6.7 |
Max. output(kVA) | 6.7 7.0 |
Rated Voltage(V) | 230 or as requested |
Rated current (A) | 26 |
Rated rotation speed(r/min) | 3000 3600 |
Phase NO. | Single phase or three phase |
Power factor(Cos Φ) | 1 |
Insulation Grade | B |
Pole number | 2 |
Excitation mode | Self-excitation & constant voltage (AVR) |
Panel Type | General Panel |
Voltage(V) | 230 or as requested |
Receptacle | Two receptacles |
Connection pole | Without |
DC12V output | Connection pole output |
Overall dimension(L×W×H)mm | 930×530×740 |
Dry weight(kg) | 172 |
Working assorting weight | 187 |
Noise level(7m)dB(A) | 68 |
Structure type | Silent type |
Engine Model | New YM192FG |
Engine Type | Single cylinder, vertical, four-stroke, direct injection |
Cylinder NO.-bore×stroke(mm) | 1-92×75 |
Displacement(ml) | 548 |
Rated power[KW/(r/min)] | 8.0/3000 |
Compression ratio | 19:01 |
Rated rotation speed(r/min) | 3000 |
Cooling system | Air cooled |
Combustion system | Direct injection |
Starting system | Electric starter |
Fuel type | 0#(summer)-10#(winter)-35#(chillness)diesel |
Lube oil brand | CD grade or SAE10W-30,15W-40 |
Lube capacity(L) | 1.65 |
Starting motor capacity( V-kW) | 12V 0.8kW |
Charging generator capacity ( V-A) | 12V 3A |
Battery capacity(v-Ah) | 12V 30-36Ah |
Fuel consumption(g/kw.h) | ≤360 |
Fuel tank capacity(L) | 15 |
Continuous running time(hr) | 6 |
Prod Model: |
YM9800TN |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Noise Level: |
68dB |
Phase No.: |
Single or Three Phases as Requested |
Voltage: |
220V or as Requested |
Frequency: |
50Hz or 60Hz as Requested |
Color: |
Red/Yellow or Others as Requestd |
Trade Mark: |
Yarmax or OEM |
Original: |
Changzhou Jiangsu Province |
Approved: |
CE, ISO9001 |
Fuel Type: |
Diesel |
Fuel Tank Capacity: |
8 Hours Continue Running |
Type: |
Self-Starting Diesel Generator |
Installation Method: |
Portable |
Stroke: |
Four Stroke |
Cooling Method: |
Air Cooled |
Output Type: |
AC Single Phase |
Speed: |
3000/3600rpm |
Excitation Mode: |
Self-Starting |
Yarmax Power (Changzhou) Co., Ltd. is one of the leading worldwide suppliers of Air-cooled diesel engines, Gasoline engines, Diesel generators, Gasoline generators, water pumps, Air compressors, High Pressure washers and engine powered construction machines. Our factory is located in Changzhou City, Jiangsu Province, which is easily accessible with a two-hour drive from Shanghai.
As a professional genset manufacturer and facilitator, Yarmax Power keeps improving the quality of products in controlling noise, improving fuel efficiency and lowering emissions for environmental protection. Our company is in compliance with ISO9001: 2000 standards and our products have gained CE approval issued by European Community. We have got the EPA approval from the United States.
To better serve our customers, we provide complete technical support and any other information on our engine and gensets. Additionally, we offer a 12 month or 1000 working-hour warranty. This warranty covers any product deficiency caused by raw materials or any quality problem. The warranty does not cover wearing part problems or damage caused by improper operation or maintenance.
Yarmax Power is also an OEM service provider. If you have any need for engines or generator sets, please don't hesitate to contact us. We would like to establish long-term business relationships with you.
Yarmax Power - your ideal choice
