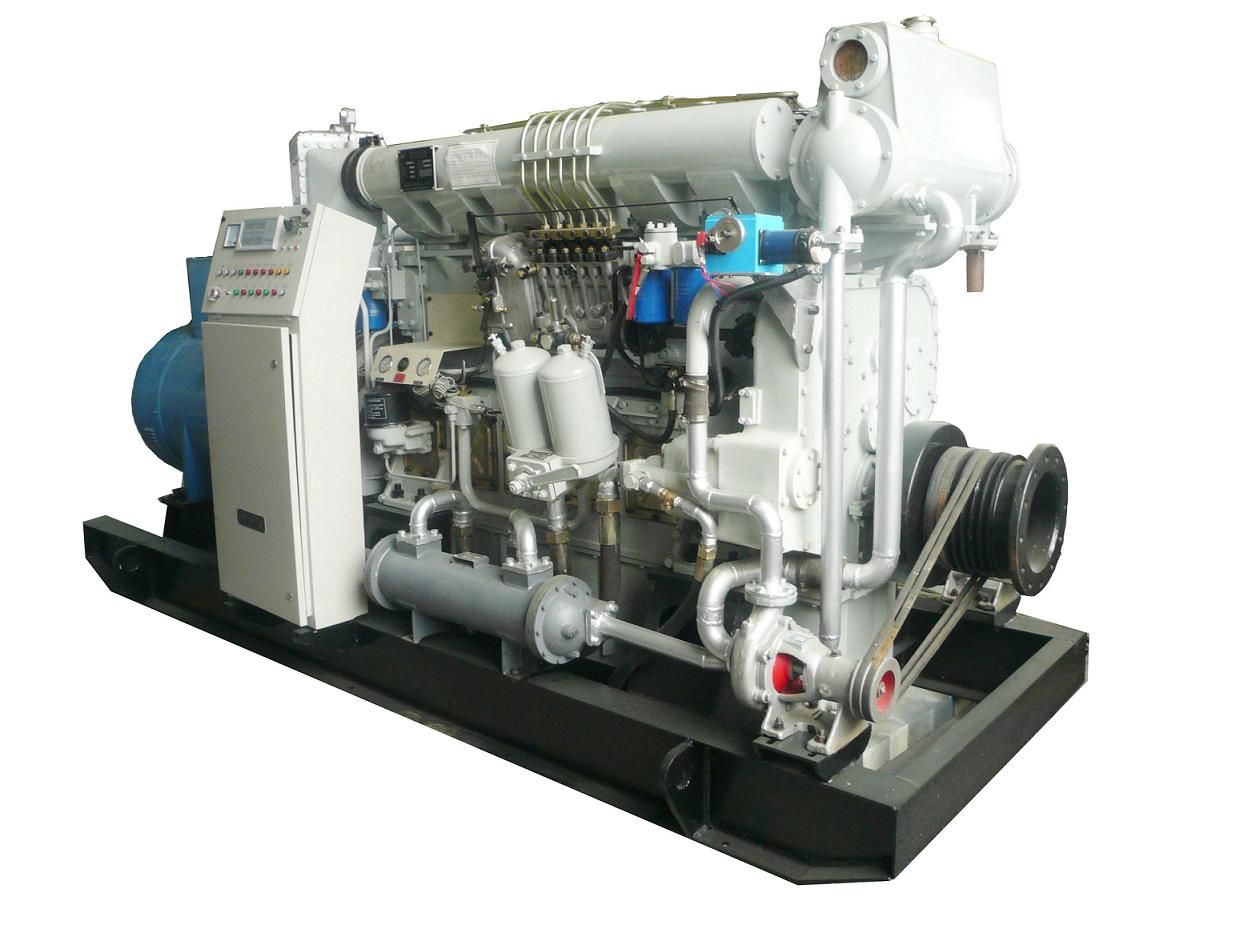

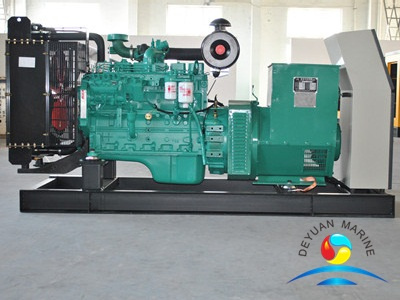

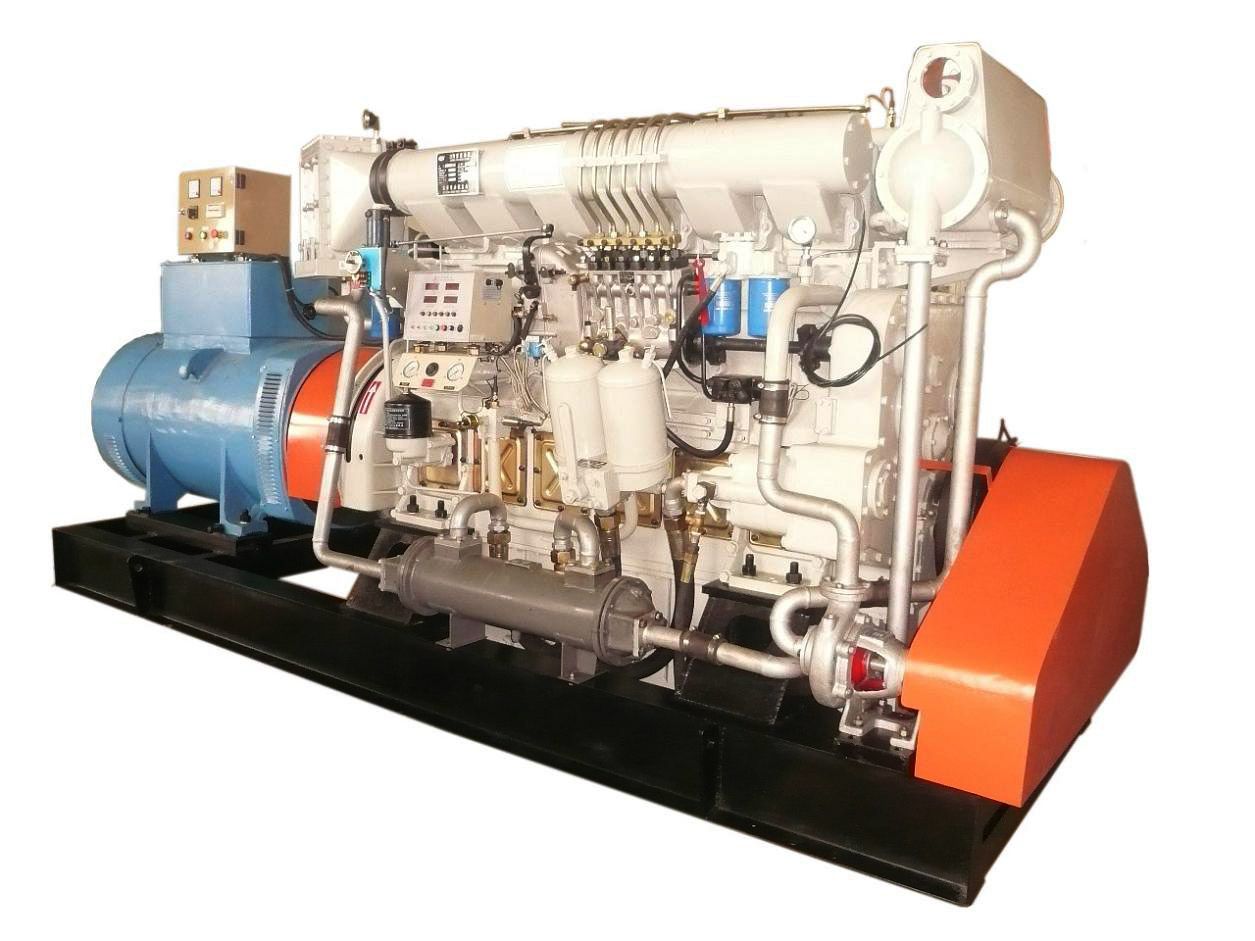

ZICHAI marine generator series is one of the famous brand of Chinese marine engine,Marine generator set/Marine Generating Set are suitable for sea areas as draining water ship, tugboat
ZICHAI diesel engine is one of the famous brand of Chinese marine engine,This company was established in 2009.Generator power from 200kw to 500kw.
Marine generator set/Marine Generating Set are suitable for sea areas as draining water ship, tugboat, fishnet ship, freighter and digging-ship etc as electric power supply and can be used as Marine Main Generator set, Marine emergency Generator set or Harbor Generator set.
As to the certificates of marine generating set,will supply CCS as standard. And we also can supply ABS, BV, DNV,LRS Certificates for clients' option according to their special requirements, which can provide a reliable guarantee for your ship and equipments, FoundPower's marine power generator is one of your best choices in selecting auxiliary equipment for all kinds of ships.
EIAPP, Meet requirements of IMO for NOx Standard.
<| Genset Specification | Engine Specification | Alternator Specification | Unit Appearance |
|
| Model | Rated Output | Speed/
Frequency rpm/Hz |
Voltage
V | Model | Bore/Stroke
/ | Cyl | Consumption
(g.kw.h) | Model | Protection
Class | Dimension
L*W*H(mm) | Weight
(kgs) |
|
| KW | KVA |
| CCFJ200JW | 200 | 250 | 1000/50 | 400 | Z6150ZLD-5 | 150*190 | 6 | 200 | MP-H-200-4 | IP23 | 3050*1300*1900 | 4600 |
| CCFJ250JW | 250 | 312.5 | 1500/50 | 400 | Z6150ZLD-13 | 150*190 | 6 | 200 | MP-H-250-4 | IP23 | 3150*1300*1900 | 4800 |
| CCFJ300JW | 300 | 375 | 1500/50 | 400 | Z6150ZLD-15 | 150*190 | 6 | 200 | MP-H-300-4 | IP23 | 3250*1300*1900 | 5000 |
| CCFJ200JW | 200 | 250 | 1000/50 | 400 | Z6170ZLD-2 | 170*200 | 6 | 200 | MP-H-200-4 | IP23 | 3580*1400*2000 | 5200 |
| CCFJ250JW | 250 | 321.5 | 1000/50 | 400 | Z6170ZLD | 170*200 | 6 | 200 | MP-H-250-4 | IP23 | 3650*1400*200 | 5400 |
| CCFJ300JW | 300 | 375 | 1200/60 | 440 | Z6170ZLD-3 | 170*200 | 6 | 200 | MP-H-300-4 | IP23 | 3650*1400*2000 | 5500 |
| CCFJ350JW | 350 | 437.5 | 1000/50 | 400 | Z8170ZLD | 170*200 | 8 | 200 | MP-H-350-4 | IP23 | 4100*1400*2200 | 6000 |
| CCFJ400JW | 400 | 500 | 1200/60 | 440 | Z8170ZLD-3 | 170*200 | 8 | 200 | MP-H-400-4 | IP23 | 4100*1400*2200 | 6300 |
| CCFJ480JW | 480 | 600 | 1500/50 | 400 | Z8170ZLD-8 | 170*200 | 8 | 200 | MP-H-480-4 | IP23 | 4100*1400*2200 | 6500 |
| CCFJ500JW | 500 | 625 | 1500/50 | 400 | Z8170ZLD-8 | 170*200 | 8 | 200 | MP-H-500-4 | IP23 | 4100*1400*2200 | 6800 |
Zhuhai City Deyuan Import&Export Co., Ltd is a subsidiary company of China deyuan marine fitting Co., Ltd, .
We are the leading and trusted supplier of marine equipment and offshore equipment in the marine market of China.
We do export business globally in the market for many years and export lots of marine equipment to different countries. Our target is to be the best alternative for the customer's bottom line in the long perspective and always put good quality, good service in the first place. Because of that, we win high appreciation from our customers and have high reputation in this field
Our products include:
Marine life saving equipment: (immersion suit, life boat, inflatable boat, life raft, life jacket, life jacket light etc)
Marine fire fighting equipment: (FIFI system, SCBA, EEBD, fire suit, heat insulation suit, fire extinguisher etc)
Environment Protection Equipment: (Oily water separator, sewage treatment plant, fresh water generator, UV-sterilizer etc)
Marine Mooring Equipment: (marine anchor, anchor chain etc)
Marine Power&Propulsion Equipment: (Tunnel thruster, marine propeller, marine shaft etc)
Marine Deck Equipment: (Marine Windlass, Marine Winch, Marine Davit)
Marine Diesel engine: (CUMMINS Diesel engine, Weichai diesel engine, Deutz diesel engine)
These products are SOLAS compliant, approved by different Classification Society, such as ABS, BV, KRNK, GL, LR, RINA, CCS, DNV, IRS. Pls contact us for more information or just send yr inquiry to us.
We are very confident that our ethusiasam and profession, integrerity will earn your trust.
