75kw Auxiliary Marine Diesel Generator Set
Price: |
Negotiableset/sets |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1set/sets |
Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |

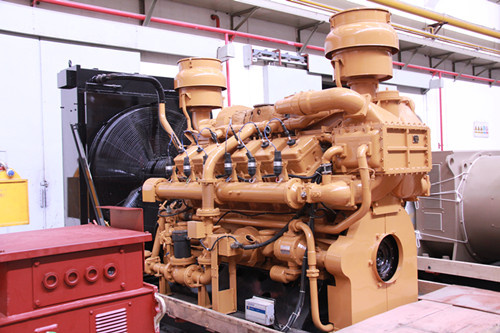

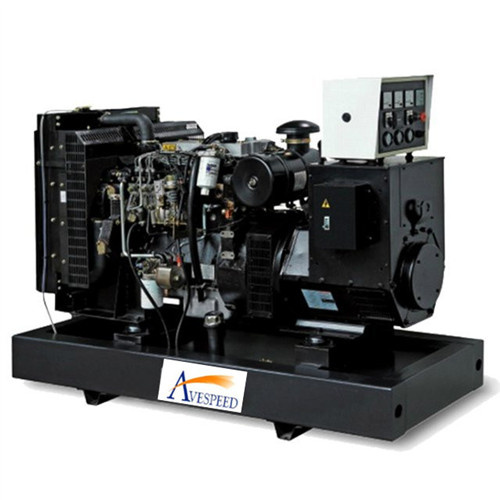

75KW auxiliary marine diesel generator set
Product introduce:
1. All diesel generating sets include diesel engine, alternator and control box.
2. Starting method of gensets
1.Key start.
2.Automatic starting wholly when electric supply has been stopped. The gensets can start automatically in 3-28 seconds (time can be adjustable)between electric supply and gensets need 6-8 seconds. It will spend 12 seconds to accept load when electric supply resumed, genset will maintain 20-230 seconds, then closes down automatically.
3.Control panel system: Voltmeter, hertzmeter, ampemeter, voltmeter of battery, gauge of water temp, gauge of oil pressure. Control section: Start/stop, key type switch, inductive type self-protection switch, and indicator lamp.
1. Automatic starting control panel this panel includes manual control panel, time relay, indicator testing button, alarm resetting button, over speed inductive switch, alarm buzzer of low voltage of battery, starting malfunction alarm.
2. Automatic changing-over panel. When the electric supply has been stopped, the gensets will start automatically. When the electric supply has resumed, the gensets will halt automatically.
3. Automatic diesel generating sets with intelligence performance and principle.
4. Booster, battery charger, alarm buzzer, attached inductive protection switcher.
5. Trailer-behind movabe power station.Diesel generator set characteristic :- The performance of unit is stable and reliable, trouble-free intervals for up to 6500 hours
- Low fuel consumption ,Low emissions ,Low noise .
- The diesel generator set adopts rotary diesel, oil filter, and dry type air filter.
- Wear-resistant and durable,structure compact, and easy to operate.
- Structure is compact, small volume and light weight.
- Excellent durability and long service life, repair time is 20000 hours
You must also like these diesel generator sets:
Product Packages:
Export wooden case (standard) or Plywood case (optional)
MARINE DIESEL GENERATOR SET |
GENSET MODEL |
CCFJ-75KW |
CCFJ-100KW |
CCFJ-250KW |
Manufacturer |
AVESPEED |
AVESPEED |
AVESPEED |
Rated Speed / Frequency |
1500/50HZ |
1500/50HZ |
1500/50HZ |
Prime Output (KW) |
75 |
100 |
250 |
Prime Output (KVA) |
93.75 |
125 |
312.5 |
Voltage, Phase and Wire |
400V, 3 Phase and 4 Wires |
400V, 3 Phase and 4 Wires |
400V, 3 Phase and 4 Wires |
Power Factor |
0.8 |
0.8 |
0.8 |
Rated Output Current(A) |
135.3 |
180.4 |
451.1 |
DIESEL ENGINE |
ENGINE MODEL |
6135Caf |
6135ACaf |
G128ZLCaf3 |
Diesel brand |
AVESPEED |
AVESPEED |
AVESPEED |
Engine Character |
In line, direct injection,4-stroke,Water-cooled |
In line, direct injection,4-stroke,Water-cooled |
In line, direct injection,4-stroke,Water-cooled |
Aspiration Type |
Natural apirated |
Turbocharged |
Turbo&Inter-cooled |
Rated Output (KW) |
88 |
110 |
276 |
cylinders |
6 |
6 |
6 |
Bore(mm)×Stroke(mm) |
135*140 |
135*150 |
135*160 |
Displacement(L) |
12 |
12.9 |
12.9 |
Compression ratio |
16.5:1 |
17:1 |
17:1 |
Fuel Consumption(g/kw.h) |
206 |
206 |
157 |
Lubricating oil Consumption
(g/kw.h) |
1.0 |
1.0 |
0.7 |
Start Model |
Electrical |
Electrical |
Electrical |
ALTERNATOR |
ALTERNATOR MODEL |
TFW-H-75KW |
TFW-H-100KW |
TFW-H-250KW |
Alternator brand |
AVESPEED |
AVESPEED |
AVESPEED |
Excitation |
Brushless |
Brushless |
Brushless |
Insulation Class |
H |
H |
H |
Protection Class |
IP22 |
IP22 |
IP22 |
Voltage Adjust Range |
≥±10% |
≥±10% |
≥±10% |
Steady State Voltage Regulation |
≤±1% |
≤±1% |
≤±1% |
Including CCS certificate |
Prod Model: |
CCFJ-75KW |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Key Word: |
Marine Diesel Generator |
Genset Model: |
Ccfj-75kw |
Engine Model: |
6135caf |
Alternator Model: |
Tfw-H-75kw |
Prime Output (Kw): |
75 |
Prime Output (kVA): |
93.75 |
Engine Character: |
in Line, Direct Injection,4-Stroke,Water-Cooled |
Aspiration Type: |
Natural Apirated |
Bore X Stroke(Mm): |
135*140 |
Displacement(L): |
12 |
Cooling Method: |
Water Cooling |
Stroke: |
Four Stroke |
Installation Method: |
Fixed |
Type: |
Basic Diesel Generator |
Output Type: |
AC Three Phase |
Beijing Avespeed Commercial & Trading Co., Limited is the leading manufacturer and supplier of diesel engines for marine propulsion, marine Gen-sets, stationery Gen-sets and power plant applications in China. AVESPEED manufactures diesel engines with unit output from 150KW to 4500KW, which can be used as propulsion of merchant vessels and special vessels from 1000 to 30000 tons DWT. AVESPEED manufactures marine auxiliary diesel generators with unit output from 150KW to 4500KW and stationery HFO generators with unit output from 500KW to 8000KW.
AVESPEED designs and builds turn-key power plant with an output up to 100MW as base load power plant, peaking power plant or industrial self-captive power plant in cement, textile, mining or oil and gas industries etc. The power fuel can be diesel oil, bio-diesel, heavy fuel oil (HFO) or bi-fuel. AVESPEED has been set up more than 200 heavy fuel oil (HFO) power plant projects in the world in recent years, especially in Nigeria, we have set up more than 60 HFO power plant projects there.
All of our marine diesel engines have achieved type approvals and work test approvals of, CCS, China Ships Inspection Bureau, and China Fishing Ships Inspection Bureau. Many products are rated as "National Grade New Products" and "Industry Brand Products" and awarded with "National Prize for Progress in Science and Technology", Now AVESPEED diesel engines are widely used for deep sea fishery, inshore fishing ships, ocean shipping, inland water navigation, passenger cargo ship transport, harbor tug, engineering ships, enforcement ships, naval auxiliaries etc.
New energy products developed in recent years including natural gas generator sets, biomass generator sets, tyre oil/vegetable generator sets and dual-fuel generator sets with unit output from 50KW to 1000KW.
AVESPEED also involves in the development and manufacture of the crystal silicon (mono and poly) solar panel/module, photovoltaic system, and other photovoltaic products. We supply solar panels ranging from 45W to 290W. AVESPEED's on-grid and off-grid inverters are the sole in China certified by TUV. The PV inverters range from 1KW to 1000KW.
Our products and manufacturing processes fully comply with product safety requirements, including TUV/IEC61215 & 61730, CSA/UL1703, MCS, CE and UKAS. Additionally, we have implemented best practices to protect the environment and conserve energy.
So far, our customers spread dozens of countries and regions in Europe, Middle East, Africa, South America, Southeast Asia and West Asia. AVESPEED is willing to cooperate with relevant famous enterprises and far-sighted, strong-willed and talented people at home and abroad by supplying our high-quality products and excellent service.
