| TYPE | Output | Current(A) | Pole Number | Sychronous Speed(r.p.m) |
| KVA | KW |
| Single phase 230V 50Hz/1500r/min |
| ST-2 | 2 | 2 | 8.7 | 4 | 1500 |
| ST-3 | 3 | 3 | 13 | 4 | 1500 |
| ST-5 | 5 | 5 | 21.8 | 4 | 1500 |
| ST-7.5 | 7.5 | 7.5 | 32.6 | 4 | 1500 |
| ST-10 | 10 | 10 | 43.3 | 4 | 1500 |
| ST-12 | 12 | 12 | 52.2 | 4 | 1500 |
| ST-15 | 15 | 15 | 65.3 | 4 | 1500 |
| ST-20 | 20 | 20 | 87 | 4 | 1500 |
| Three phase 400V 50Hz/1500r/min |
| STC-3 | 3 | 3.8 | 5.4 | 4 | 1500 |
| STC-5 | 5 | 6.3 | 9 | 4 | 1500 |
| STC-7.5 | 7.5 | 9.4 | 13.5 | 4 | 1500 |
| STC-10 | 10 | 12.5 | 18.1 | 4 | 1500 |
| STC-12 | 12 | 15 | 21.7 | 4 | 1500 |
| STC-15 | 15 | 18.8 | 27.1 | 4 | 1500 |
| STC-20 | 20 | 25 | 36.1 | 4 | 1500 |
| STC-30 | 30 | 37.5 | 54.1 | 4 | 1500 |
| STC-40 | 40 | 50 | 72.2 | 4 | 1500 |
| STC-50 | 50 | 62.5 | 90.2 | 4 | 1500 |

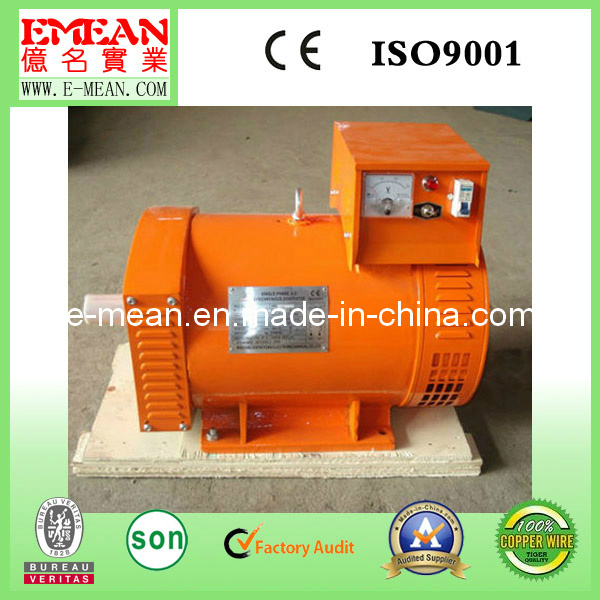

Place of Origin: Fujian, China (Mainland)
Brand Name: AC Alternator 7.5kw
Model Number: ST-7.5
Output Type: AC Single Phase
Speed: 1500/1800RPM
Frequency: 50/60Hz
Rated Power: 7.5KW
Rated Voltage: 400/230V
Rated Current: 32.6A
AC alternator 7.5kw Color: Green
Power factor: 0.8lagging
Insurance Class: B or C
Protection Class: IP21
Fan material: Plastic or Aluminum
Wire winding: 100% copper
OEM Service: Acceptable
Certificate: CE/ISO9001
Warranty: 1500hours or 1year
1. ST series single phase AC electric generators are mainly designed to service as power generating unit of small capacity, which supply electricity for lighting purpose in ships, for house-hold electric devices used in towns or villages.
2. The construction of the AC electric generators is of disproof, salient pole rotating field self excitation and constant voltage type. The alternator interior is used with high quality electric magnetic and electrical material. Stator insulation is class B.
OPERATING CONDITIONS:
Under the following environment conditions, the generator could run normally and continuously:
1. Altitude: Not exceed 1000m.
2. Cooling air temperature: 258~313K (-15 ~40 ).
3. Relative air humidity: Not exceed 90%.
FEATURES:
1. Generator, ST series single phase
2. Excellent in appearance, consolidated in construction
3. Dimensions are adopted IEC standard
4. Overall salient rotor, strong winding, unique ventilation structure
5. Small size, light weight
6. Compound phase compound excitation device, excellent performance especially used under power load
CUSTOMER BENEFITS:
1)Water dust and vermin resistant
2)Quiet operation and Electricity saving
3)Corrosion resistant and Dependable
4)Superior life and Reliable in country, city or factory environments
The ST series generators are mainly designed to serve as power source of small capacity which supply electricity for lighting purpose in ships as well as for household electric devices used in towns or villages. The generators are excellent in appearance, consolidate in construction and easy to maintain. Dimensions adopt IEC standard. They are suitable for Australia, Europe, America and other countries if the end covers are mabel B.
The generator adopt harmonic wave self-excitation constant voltage system and automatic voltage control excitation constant voltage system, both of them have excellent dynamic characteristic performance, convenient and reliable in operation
