| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 5/Piece |
| Pay Type: | L/C,T/T |
|
gasoline generator set Model |
BH2900 DX |
BH5000 DX |
BH7000 DX |
BH7000 DXE |
BH8000 DX |
BH8000 DXE |
BH11000 | BH13000 | BH15000 |
| Engine | |||||||||
| Model | GX160 | GX270 | GX390 | GX620 | GX670 | GX690 | |||
| Type | 4-Stroke OHV 1 cylinder | 4-Stroke OHV 2 cylinders | |||||||
| Displacement | 163 c m³ |
270.1 c m³ |
389.2 c m³ | 614 c m³ | 670 c m³ | 688 c m³ | |||
| Bore x Stroke | 68x45mm | 77x58mm | 88 x 64 mm | 77x66 mm | 77x72 mm | 78x72 mm | |||
| Cooling system | Air cooling | ||||||||
| Starting system | Recoil | Recoil+ Electric | Recoil | Recoil+ Electric | Electric | ||||
| Generator | |||||||||
| Rated voltage | 230V(220V) | 230V | 220V (120V/240V) |
230V 120V/240V |
|||||
| Rated frequency | 50Hz | 50Hz / 60Hz | |||||||
| Rated current | 8.7A (9.1A) | 13.0A (13.6A) | 21.7A(22.73A) | 26A |
38.6A 79.2A/39.6A |
47.7A 95.8A/48.9A |
47.8A 100A/50A |
||
| Rated output | 2.0kVA | 3.0kVA | 5.0kVA | 6.0kVA | 8.5kVA (9.5kVA) | 10.5kVA (11.5kVA) | 11.0kVA (12.0kVA) | ||
| Max. output | 2.2kVA | 3.3kVA | 5.5kVA | 6.2kVA | 9.5kVA (10.5kVA) | 11.5kVA (12.5kVA) | 12.0kVA (13.2kVA) | ||
| Rated power factor | CosΦ = 1 | ||||||||
| Phase | Single | ||||||||
| Other | |||||||||
| Length x width x height(mm) |
615x430 x 430 |
680x510 x 495 |
690x510 x 520 |
870x510 x 520 |
690x510 x520 |
870x510 x520 |
935 x 617x 622 |
||
| Net weight(kg) | 41.5 | 70 | 75.5 | 81 | 77 | 82.5 | 188 | 195 | 195 |

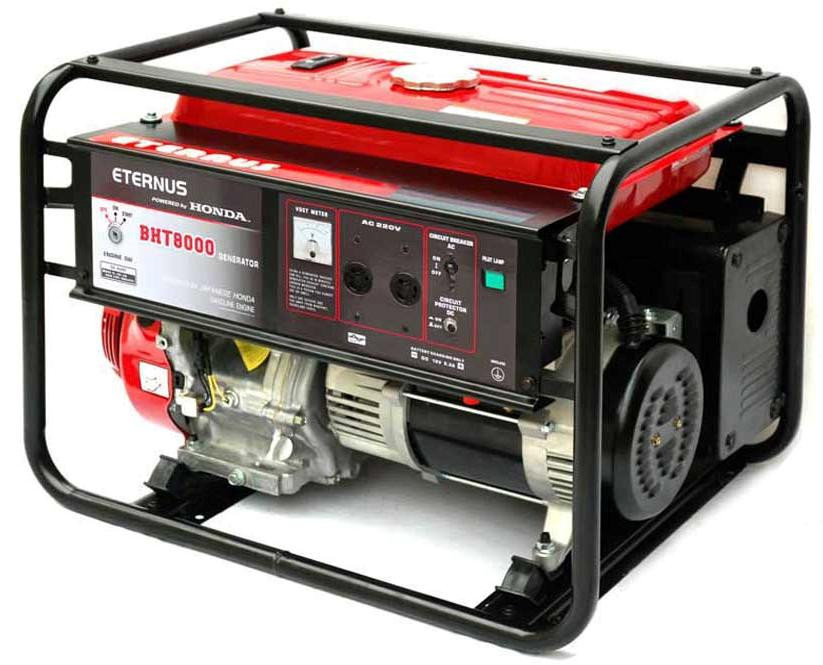

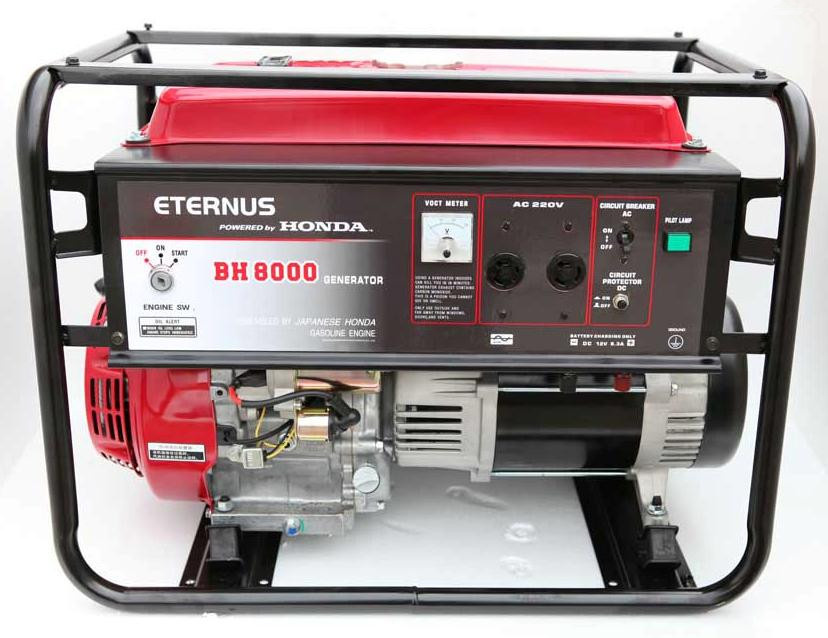

| Prod Model: | BH8000 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine: | Honda |
| Output Type: | AC Single Phase |
