Home Generator Products 6kVA 5kVA Diesel Generator

6kVA 5kVA Diesel Generator

6kVA 5kVA Diesel Generator
Price: US $ 500-700/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
JIUAN Diesel Generator Set Advantage:
·  50hz@1500rpm or 60HZ@1800rpm all are available
· AVR delivers non fluctuating power
· Panel type digital control panel
· 12 Volt / 24 Volt electric starter ensures easy starting
· Low oil pressure shut down system
· Low fuel cut out protection
· Low water cut out engine protection
· Enclosed structure ensures quieter operation
· Alternator (Dynamo) excitation mode brushless self excitation
· Three-phase output meets differing requirements
· Four Cylinder, four stroke, water cooled diesel engine
· 8 hours running @ full load on a single tank of fuel
· Dual access doors for easy maintenance
· Optional automatic or manual transfer switches available
· ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option
· Weatherproof and soundproof, enclosure high grade steel protected by powder coat painting and incorporate internally mounted exhaust silencers
· Noise Level (65-70dBA @ 7m)
· All ratings are at sea level

After-sales Service:
1 year or 1800 running hours subject to the earlier one.
24 hours after-sales contact number: 0086 18520604611

Contact Sales Manager
24 hours after-sales contact number: 0086 15817087202

Our Diesel Generator Set Production Range is as follows:

* Engine (motor) for Choice

1. Cummins (USA ) 20KVA - 2000KVA
2. Deutz (Germany) 20KVA - 150KVA
3. Perkins (UK) 8KVA - 2000KVA
4. ISUZU (Japanese) 20KVA - 40KVA
5. Lovol (China) 20KVA - 150KVA
6. Yangdong (China) 8KVA - 40KVA
7. Weichai (China) 8KVA - 150KVA
8. Shanghai Engine
9. Yuchai Engine
10. KUBOTA Engine 10KVA - 50KVA

* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System

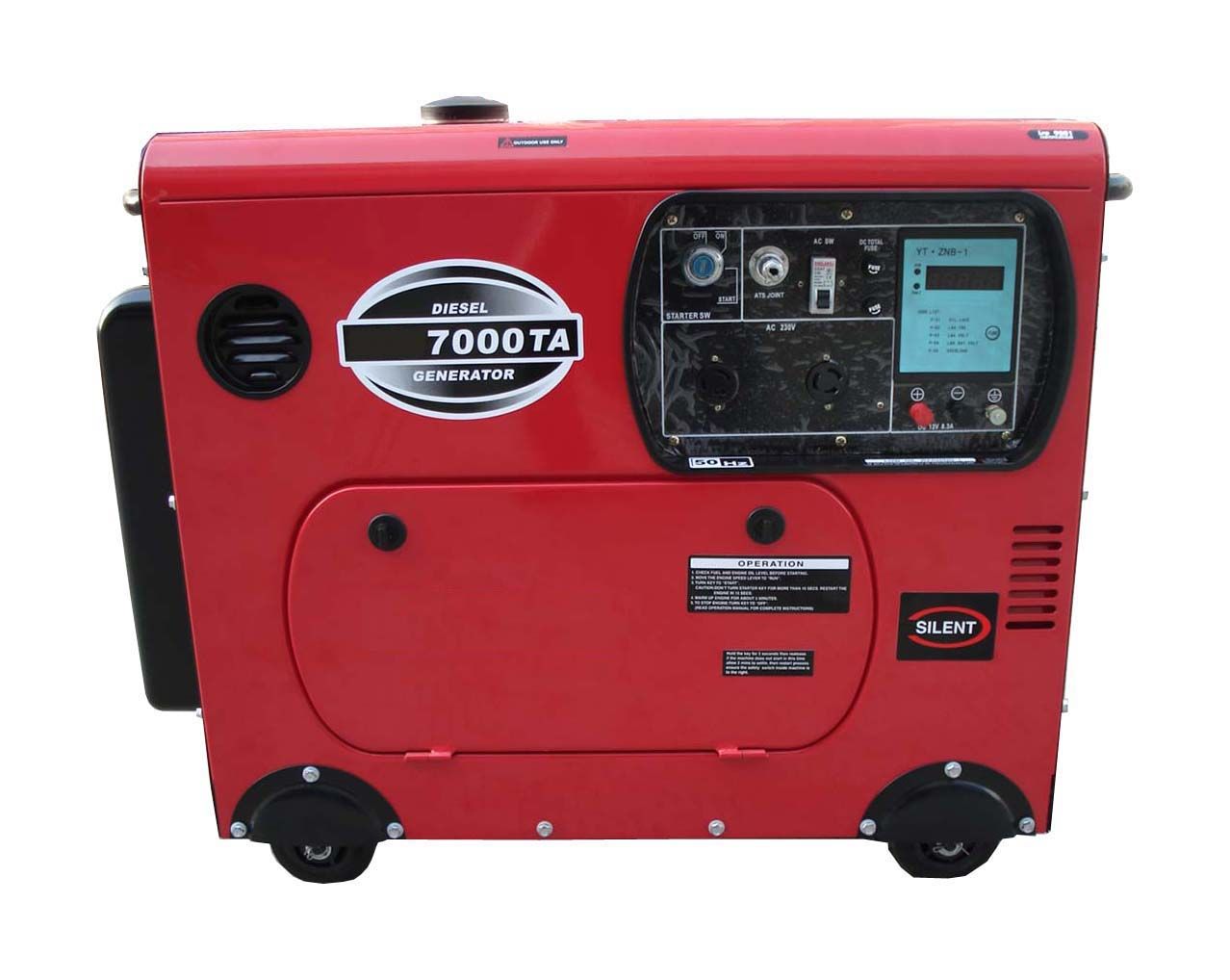

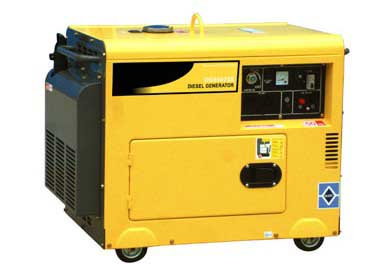

JIUAN 6KVA 5KVA Generator Photos:

JIUAN CERTIFICATE:









Generator Sets

Frequency (HZ)                                 50HZ
Max.output (KW)                                 5.4kw/6.5KVA
Rated output (KW)                               5kw/6kva
Rated AC Voltage (V)                            220v
Power Factor                                         1
DC output                                       12V/8.3A
Phase                                      Single Phase/three phase
Alternator Type                 Self-excited,2-pole, Single phase alternator with brushless
Starting System                                    Electric
Noise Level (Dba/7m)                              68-72Dba
Fuel Tank Capacity (L)                               16L
Continues Running Time (hr)                          7hr

Engine

Engine Model:                                     186FA
Engine Type                    single-cylinder, vertical,4-stroke air-cooled diesel engine
Max output of engine:                    8.5HP/3000rpm      9.2HP/3600rpm
Bore X Stroke (mm)                                 86×72
Displacement Capacity(cc)                            418cc
Fuel Consumption rate(g/kw.h)                        ≤280
Fuel                                     0# or -10#  light diesel oil
Lubrication Oil Volume (L)                            1.65L
Combustion System                              Direct Injection

Standard Features
Voltmeter                                          Yes
AC Output Socket                                    2
AC Circuit Breaker                                  Yes
Oil warning Light                                   Yes
Dimensions LxWxH (mm)                                   980*560*780
20FT                                            72PCS
Prod Model: CDS-6700
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diesel Generator: Portable 6kVA 5kVA
Generator 6kVA 5kVA: Stock Guangzhou
Cooling Method: Air Cooled
Stroke: Four Stroke
Installation Method: Portable
Type: Basic Diesel Generator
Output Type: AC Three Phase
Guangzhou Jiuan Mechanical & Electrical Co., Ltd. is a professional generator manufacturer and exporter with generator capacity from 2kVA to 2000kVA. Generator can be powered by Cummins, Perkins, ISUZU, KUBOTA and Chinese engine. Welcome to chose our products and don' T hesitate to contact us.

Our Diesel Generator Set Production Range is as follows:

* Engine (motor) for Choice

1. Cummins (USA ) 20kVA - 1500kVA

2. Perkins (UK) 8kVA-1000kVA

3. Deutz (Germany) 20kVA - 150kVA

4. ISUZU (Japanese) 20kVA - 40kVA

5. Kubota (Japanese) 7kVA-50kVA

6. Lovol (China) 20kVA - 150kVA

7. Yangdong (China) 8kVA - 40kVA

8. Weichai (China) 8kVA - 150kVA

9. Shanghai Engine

10. Yuchai Engine

* Canopy for Choice

1. Silent type (75- 80 dB(A) at 7 meters)

2. Super Silent type (65-70 dB(A) at 7 meters )

3. Open type

4. Trailer type (mobile)

5. Container Type

6. Parallel System

* Alternator for Choice

1. Stamford

2. Leroy Somer

3. Marathon

* Controller

1. Smartgen

2. Deepsea (UK Brand and imported)
