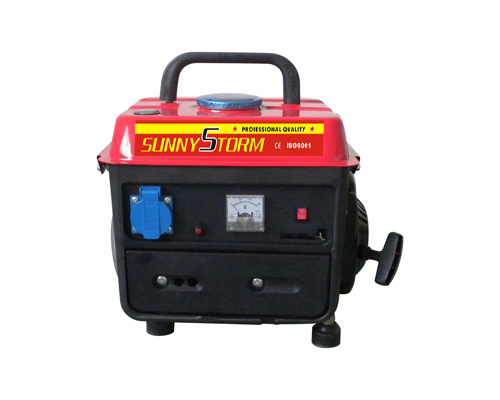

| Engine Mode | XG950 |
| Model | 1E45F |
| Type | Forced air-cooled 4-stroke OHV single cylinder, gasoline engine |
| Displacement(ml) | 63 |
| Max output(HP/rpm) | 2/3600 |
| Ignition System | Non-contact Transistorized Magneto |
| Starting System | handle start |
| Fuel Tank Capacity(l) | 4.2 |
| Fuel Consumption(l/h) | 0.67 |
| Continuous Operating Hours(h) | 6.3 |
| Engine Oil Capacity | 0.4 |
| Operating Noise at 7m(dB) | 57 |
| Generator |
|
| Phase Number | Signle phase |
| Rated Frequency(Hz) | 50/60 |
| Rated Voltage(V) | 220 |
| Power Factor | 1 |
| Rated output(kw) | 0.65 |
| Max AC Output(kw) | 0.8 |
| DC Output in Low Voltage | 12V, 8.3A |
| Dimension LxWxH(mm) | 380*315*330 |
| Packing: Brown carton | Brown carton |
| N. W. /G. W. (kg) | 18.5/20.5 |
| 20GP/40GP | 748/1510 |
High quality and good prices,Strong package,Welcome all over the world customers.
Taizhou Xinggang Mechanical and Electrical Co., Ltd. is an enterprise specializes in power machinery, established in 2001. Nowadays, the main products are gasoline generator, diesel generators, chainsaw and Brush cutter, our products are well accepted by the global market with its favorable prices and High quality.
Our company is consisted of "Press Casting Factory", "Metal Cutting Factory" and " Generator Factory". There are more than 150 employees, including about 20 various engineers and technicians. We could produce and assemble all kinds of gasoline or diesel generator 100, 000sets per year. Our company owns import & export right, 80% of the products are exported, and we have passed the 3C National Compellent Product Certificate, the ISO9001/2000 Quality Management Certificate and CE certificate.
Our company believes that "preciseness, sincerity, Development and Service" is the foundation of us, and we insists the "Quality first, aiming precision, constant improving and customer's satisfaction" as our quality principle. Meanwhile, we take "innovation" as the soul of the company. We would like to cooperate with friends from worldwide to develop our splendid future. Your OEM business is also welcome!
