64kw Open Type Natural Gas Generator

64kw Open Type Natural Gas Generator
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union

60kw natural gas generator
1.
Specifications

Adopt CUMMINS gas engine and Marathon alternator

 Automatic malfunction monitor, automatic shutdown protection.

 Type of fuel: Natural Gas,LPG,Bio Gas,

 12 years' experiences



2.Advantages:

1) Adopting advanced Hall ignition sensor and Highly capable ignition system, the engine ignition will be more reliable, and easier to start.

2) Main control parts are all the most advanced imported ones, to make more stable and reliable running.

3) Several gensets can be parallel connection or parallel  net, which can increase the total power range. In addition,the gensets can take maintenance in different times,which will make little influence to the normal performance of gensets.

4) Low gas pressure is acceptable,  no need to set up specified gas storage tank , which will save the investment and enhance the efficient output power .

5) Self-contained parts of gensets needs few accessories

6) Economical and low-cost running.

7) The fuel of gas reduces the accumulated carbon, which lessen the damage to between cylinder and valve, therefore, it will largely prolong lifetime.

8) The installation of  high-quality control cabinet set enable mutiple protection, which enhance the safety for the running of gensets.

Generator
Generator Model HL64GF
Rate output 64KW (80KVA)
Basic electric parameter 50Hz, 1500rpm, 3Phase 4 wire, 400V
Noise Level in 7M (DB)  ≤90
Fuel Consumption 19.5 m3/h
Gross Weight (KG) 2550
Dimension (MM) 3400x1450x2000
Engine
Engine Four stroke, inline 6-cylinder, Water cooled,dry-type thin-wall cylinder liner, turbo charging with inter-cooling
Make/Model HL6126NG-D (STEYR engine improved)
Rate power 88KW/1600Rpm
Bore and Stroke 126 X 130mm
Compression ratio 11.5:1
Idling speed 700±50 r/min
Firing method Electronic-control ignition
Alternator
Alternator brand Marthon
Model MP-64-4
Output 64KW/80KVA
Voltage 400V
Insulation class H
Type of bearing/Brush Single/Brushless Self excitation
Prod Model: HL64GF
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty Period: 1500 Hours or One Year Which Comes Fir
Optional Function: ATS, CHP
Gas Source: Natural Gas

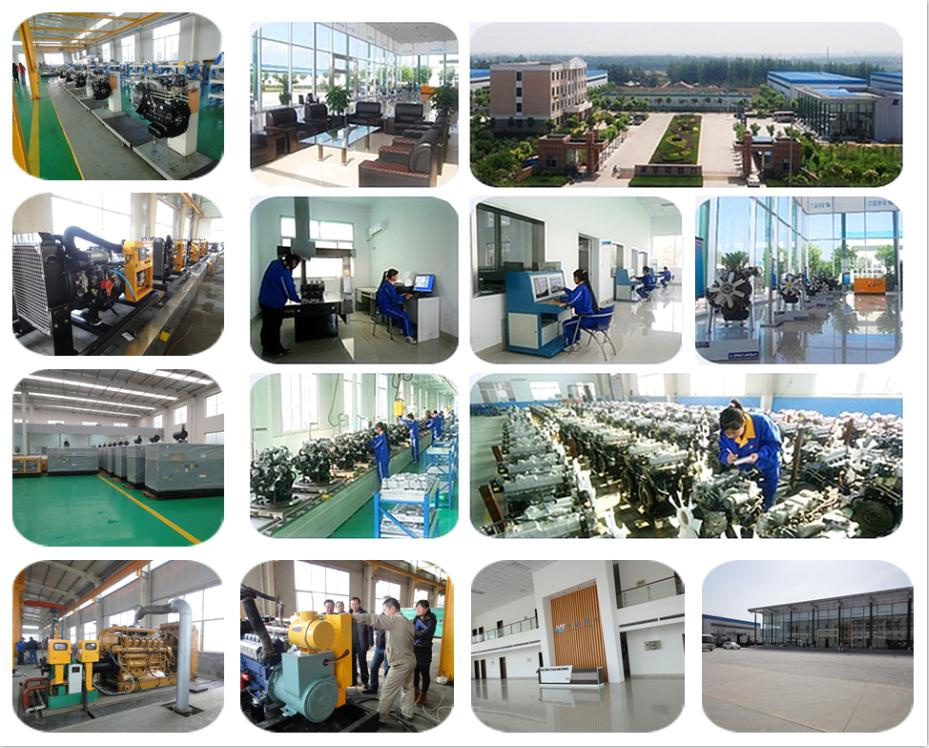

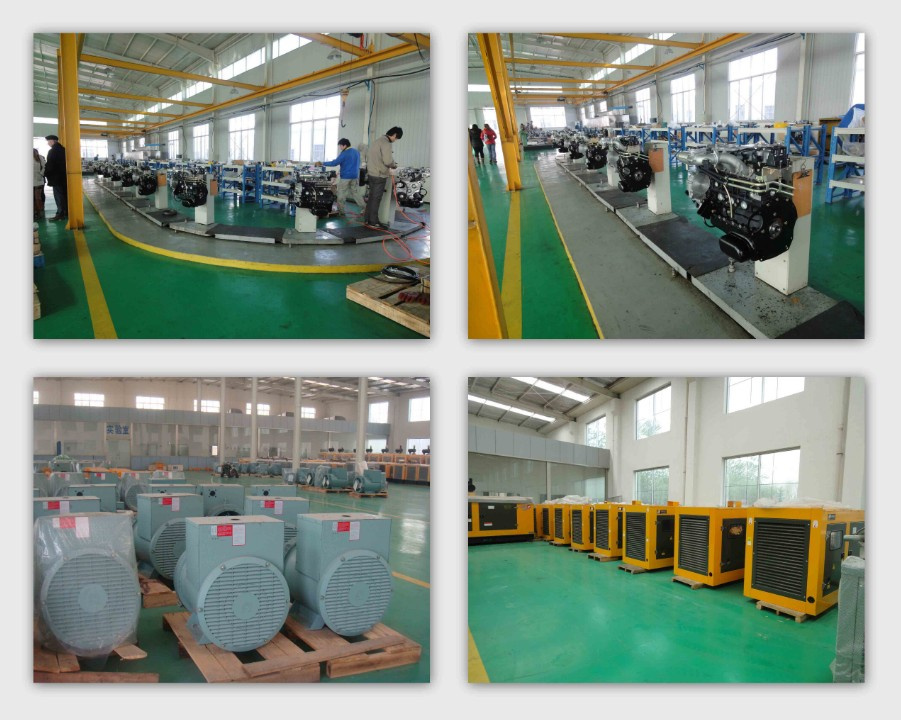

Weifang Hualing POWER CO. Ltd. It is located in the Power city, WEIFANG. With the integration of R&D, Design, Producing, Marketing and whole project construction, specializes in Energy, Electricity power, energy-saving, Environmental protection project.

The company has been identified OEM certificates by 8 World famous Engine group, ISO9001 quality management system certification, China energy-saving product certification. The company invested 2.6 billion RMB in the product line, and now is the first and top diesel engine and gas engine product line.

We produced a series multi-point injection electronic control engine and report to the National Development and reform commission, series of engines on the HL. CNG special report on current trends.

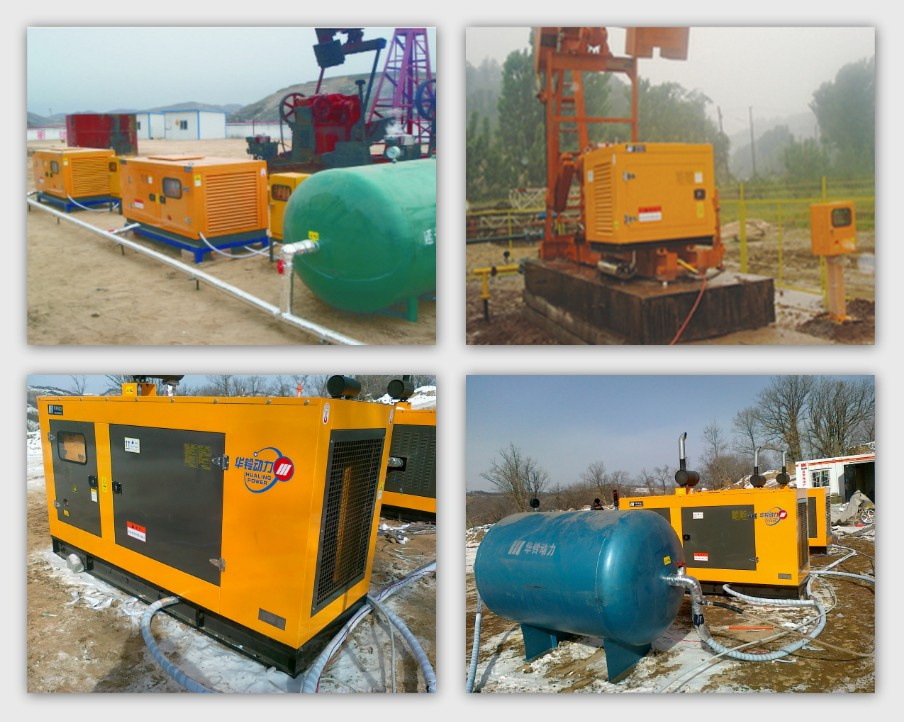

Since 2008, the product of HUALING Power Co., Ltd. Enter to the oil industry, develop and produce wellhead gas generating set, now has been widely used in the CBM oil brand and running in the subsidiaries.
