64kw/80kVA Cummins Super Silent Diesel Generator
Price: |
US $ 3000-50000PCS |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1PCS |
Pay Type: |
L/C,T/T,D/P |
64KW/80kVA Cummins Soundproof Diesel Generator Set (YMC-64)1. 20KVA~2250KVA Generator / Diesel Generator / Silent Generator2. Powered by Cummins Engine3. With Stamford / Leroy Somer / Marathon Alternator4. With CHINT / ABB MCCB & Electronic Components5. Electric Start with Battery6. Base Integrated Fuel Tank7. ATS, Deepsea / ComAp / Smartgen Controller8. Comply with ISO8528/GB2820Cummins series diesel generators power from 20kVA up to 2250kVA, with compacted structure and best configuration.OEM cummins powered diesel generator sets with its high reliability, low use and maintenance cost win the loyalty of many customers in the field of army, transportation engineering system and mine industries. Established in 1919, headquartered in columbus, indiana, (USA) cummins inc. Serves customers in more than 160 countries and territories through its network of 680 company-owned and independent distributor locations and more than 5, 000 dealer locations. As the largest foreign engine investors of China, cummins possess chongqing cummins engine Co., Ltd (produce m, n, k series engine) and dongfeng cummins engine Co., Ltd (produce b, c, l series engine ) and produce cummins engines with globally uniform quality standards.EngineHeavy duty diesel engineFour stroke, water cooled12V and 24V stater and charge alternatorCooling radiator and fanMaintenance free battery including ract and cableFlexible fuel connection hoses and manual oil sump drain valveExhaust silencerAlternatorBrushless, single bearing, flexible discInsulation class: HProtection class: IP23Self-exciting and Self-regulationSoundproof CanopyAll canopy designed with modular principlesAll metal canopy parts painted by electrostatic polyester power paintSoundproof design ensure that the noise level be controlled in small scopeConvenient to lift and moveEasy to maintenance and operateBase FrameBase frame including position for forklift and craneIntegral fuel tankDaily fuel tank continuously supply for 8-24 hoursFuel tank easy to maintain and cleanAnti-vibration pads are flexed between engine and alternator.Control SystemControl, monitor and protect the Generator Set including:High water temperatureLow oil pressureOver and under speedOver currentUnder/Over generator voltageStart and stop failureLow and high battery voltageCharge failEmergency stop
Company
SpecificationCummins Generators 50HZ |
Genset Model | Standby / Prime Power | Engine Model | No. of Cylinder | Displacement (L) | Oil Capacity (L) | Coolant Capacity (L) | Genset Size (mm) | Weight (KG) |
KVA | KW | Cummins | L | W | H |
YMC-20 | 30/25 | 24/20 | 4B3.9-G2 | 4 | 3.9 | 11 | 17 | 1470 | 650 | 1145 | 650 |
YMC-30 | 40/37.5 | 32/30 | 4BT3.9-G2 | 4 | 3.9 | 11 | 17 | 1685 | 650 | 1145 | 700 |
YMC-40 | 62/50 | 50/40 | 4BTA3.9-G2 | 4 | 3.9 | 11 | 18 | 1800 | 670 | 1190 | 830 |
YMC-50 | 70/62.5 | 56/50 | 4BTA3.9-G3 | 4 | 3.9 | 11 | 18 | 1900 | 670 | 1190 | 850 |
YMC-64 | 90/80 | 72/64 | 6BT5.9-G2 | 6 | 5.9 | 16 | 29 | 2100 | 790 | 1320 | 1050 |
YMC-80 | 110/100 | 88/80 | 6BT5.9-G2 | 6 | 5.9 | 16 | 29 | 2100 | 790 | 1400 | 1080 |
YMC-90 | 125/113 | 100/90 | 6BTA5.9-G2 | 6 | 5.9 | 16 | 29 | 2200 | 790 | 1450 | 1150 |
YMC-108 | 150/135 | 120/108 | 6BTAA5.9-G2 | 6 | 5.9 | 16 | 29 | 2400 | 840 | 1450 | 1200 |
YMC-128 | 175/160 | 140/128 | 6CTA8.3-G2 | 6 | 5.9 | 16 | 30 | 2480 | 860 | 1450 | 1400 |
YMC-144 | 200/180 | 160/144 | 6CTA8.3-G2 | 6 | 8.3 | 24 | 35 | 2480 | 860 | 1460 | 1650 |
YMC-160 | 220/200 | 176/160 | 6CTAA8.3-G2 | 6 | 8.3 | 24 | 39 | 2700 | 950 | 1460 | 1650 |
YMC-180 | 250/225 | 200/180 | 6LTAA8.9-G2 | 6 | 8.9 | 24 | 47 | 2700 | 960 | 1500 | 1800 |
YMC-200 | 275/250 | 220/200 | 6LTAA8.9-G2 | 6 | 8.9 | 24 | 47 | 2700 | 960 | 1500 | 1900 |
YMC-220 | 300/275 | 240/220 | 6LTAA8.9-G3 | 6 | 8.9 | 24 | 47 | 2700 | 960 | 1500 | 2050 |
YMC-280 | 375/330 | 300/264 | QSM11-G2 | 6 | 11 | 38 | 62 | 3110 | 1200 | 1745 | 2880 |
YMC-320 | 450/400 | 360/320 | NTAA855-G7A | 6 | 14 | 37 | 65 | 3300 | 1250 | 1720 | 3050 |
YMC-360 | 500/450 | 400/360 | KTA19-G3 | 6 | 19 | 50 | 99 | 3310 | 1290 | 1720 | 3100 |
YMC-420 | 575/525 | 460/420 | KTA19-G4 | 6 | 19 | 50 | 99 | 3600 | 1290 | 1900 | 3750 |
YMC-500 | 688/625 | 550/500 | KTAA19-G6A | 6 | 19 | 50 | 195 | 3800 | 1500 | 1980 | 4500 |
YMC-620 | 850/775 | 680/620 | KTA38-G2 | 12 | 38 | 135 | 265 | 3860 | 1600 | 2195 | 6000 |
YMC-720 | 1000/900 | 800/720 | KTA38-G2A | 12 | 38 | 135 | 303 | 3860 | 1600 | 2195 | 7000 |
YMC-820 | 1125/1025 | 900/820 | KTA38-G5 | 12 | 38 | 135 | 309 | 5300 | 1950 | 2500 | 8500 |
YMC-1020 | 1400/1275 | 1120/1020 | KTA50-G3 | 16 | 50 | 177 | 349 | 5300 | 2150 | 2520 | 9950 |
YMC-1200 | 1675/1500 | 1340/1200 | KTA50-G8 | 16 | 50 | 204 | 349 | 5300 | 2200 | 2550 | 10500 |
Cummins Generators 60HZ |
Genset Model | Standby / Prime Power | Engine Model | No. of Cylinder | Displacement (L) | Oil Capacity (L) | Coolant Capacity (L) | Genset Size (mm) | Weight (KG) |
KVA | KW | Cummins | L | W | H |
YMC-20 | 30/25 | 24/20 | 4B3.9-G2 | 4 | 3.9 | 11 | 17 | 1470 | 650 | 1145 | 650 |
YMC-25 | 36/31 | 29/25 | 4B3.9-G2 | 4 | 3.9 | 11 | 17 | 1550 | 650 | 1145 | 670 |
YMC-36 | 50/45 | 40/36 | 4BT3.9-G2 | 4 | 3.9 | 11 | 17 | 1685 | 650 | 1145 | 700 |
YMC-40 | 62/50 | 50/40 | 4BTA3.9-G2 | 4 | 3.9 | 11 | 18 | 1800 | 670 | 1190 | 830 |
YMC-50 | 70/62.5 | 56/50 | 4BTA3.9-G3 | 4 | 3.9 | 11 | 18 | 1900 | 670 | 1190 | 850 |
YMC-64 | 90/80 | 72/64 | 6BT5.9-G2 | 6 | 5.9 | 16 | 29 | 2100 | 790 | 1320 | 1050 |
YMC-72 | 100/90 | 80/72 | 6BT5.9-G2 | 6 | 5.9 | 16 | 29 | 2100 | 790 | 1400 | 1080 |
YMC-90 | 125/113 | 100/90 | 6BT5.9-G2 | 6 | 5.9 | 16 | 29 | 2200 | 790 | 1450 | 1150 |
YMC-108 | 150/135 | 120/108 | 6BTA5.9-G2 | 6 | 5.9 | 16 | 29 | 2400 | 840 | 1450 | 1200 |
YMC-120 | 165/150 | 132/120 | 6BTAA5.9-G2 | 6 | 5.9 | 16 | 30 | 2480 | 860 | 1450 | 1400 |
YMC-144 | 200/180 | 160/144 | 6CTA8.3-G2 | 6 | 8.3 | 24 | 35 | 2480 | 860 | 1460 | 1650 |
YMC-160 | 220/200 | 176/160 | 6CTA8.3-G2 | 6 | 8.3 | 24 | 39 | 2700 | 950 | 1460 | 1650 |
YMC-180 | 250/225 | 200/180 | 6CTAA8.3-G2 | 6 | 8.3 | 24 | 47 | 2700 | 960 | 1500 | 1800 |
YMC-200 | 275/250 | 220/200 | 6LTAA8.9-G2 | 6 | 8.9 | 24 | 47 | 2700 | 960 | 1500 | 1900 |
YMC-220 | 300/275 | 240/220 | 6LTAA8.9-G3 | 6 | 8.9 | 24 | 47 | 2700 | 960 | 1500 | 2050 |
YMC-280 | 400/350 | 320/280 | NTA855-G2 | 6 | 14 | 39 | 65 | 3110 | 1000 | 1745 | 2880 |
YMC-360 | 500/450 | 400/360 | KTA19-G2 | 6 | 19 | 50 | 99 | 3310 | 1290 | 1720 | 3100 |
YMC-420 | 575/525 | 460/420 | KTA19-G3 | 6 | 19 | 50 | 99 | 3600 | 1290 | 1900 | 3750 |
YMC-500 | 688/625 | 550/500 | KTAA19-G5 | 6 | 19 | 50 | 99 | 3800 | 1500 | 1980 | 4500 |
YMC-620 | 850/775 | 680/620 | KT38-G | 12 | 38 | 135 | 265 | 3860 | 1600 | 2195 | 6000 |
YMC-720 | 1000/900 | 800/720 | KTA38-G2 | 12 | 38 | 135 | 265 | 3860 | 1600 | 2195 | 7000 |
YMC-928 | 1275/1160 | 1020/928 | KTA38-G4 | 12 | 38 | 135 | 265 | 5300 | 1950 | 2500 | 8500 |
Prod Model: |
YMC-64 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Brand: |
Yarmax or OEM |
Pack: |
Iron Bracket / Veneer Case |
Original: |
Changzhou Jiangsu Province |
Color: |
Red/Yellow or Others as Requested |
Noise Level: |
65dB |
Fuel Type: |
Diesel |
Fuel Tank Capacity: |
8 Hours Continue Running |
Phase No.: |
Three Phases or Single Phase as Requested |
Type: |
Self-Starting Diesel Generator |
Installation Method: |
Fixed |
Stroke: |
Four Stroke |
Cooling Method: |
Water Cooling |
Output Type: |
AC Three Phase |
Speed: |
1500rpm/1800rpm |
Excitation Mode: |
Self Exciter |

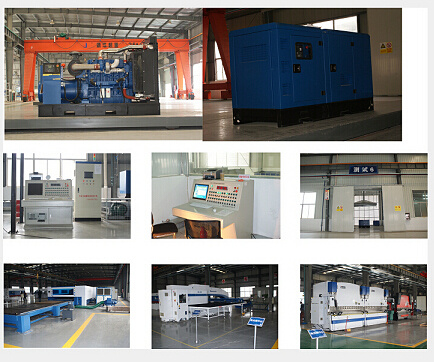

Yarmax Power (Changzhou) Co., Ltd. is one of the leading worldwide suppliers of Air-cooled diesel engines, Gasoline engines, Diesel generators, Gasoline generators, water pumps, Air compressors, High Pressure washers and engine powered construction machines. Our factory is located in Changzhou City, Jiangsu Province, which is easily accessible with a two-hour drive from Shanghai.
As a professional genset manufacturer and facilitator, Yarmax Power keeps improving the quality of products in controlling noise, improving fuel efficiency and lowering emissions for environmental protection. Our company is in compliance with ISO9001: 2000 standards and our products have gained CE approval issued by European Community. We have got the EPA approval from the United States.
To better serve our customers, we provide complete technical support and any other information on our engine and gensets. Additionally, we offer a 12 month or 1000 working-hour warranty. This warranty covers any product deficiency caused by raw materials or any quality problem. The warranty does not cover wearing part problems or damage caused by improper operation or maintenance.
Yarmax Power is also an OEM service provider. If you have any need for engines or generator sets, please don't hesitate to contact us. We would like to establish long-term business relationships with you.
Yarmax Power - your ideal choice
