KUSING GENERATOR SET TECHNICAL DESCRIPTION
1. KUSING diesel generator sets comply with the newest national and international standard.
2. The diesel engines KUSING use are famous brand with high quality, such as CUMMINS, VOLVO, ISUZU, LOVOL, YTO, YANGDONG, SDEC, etc; All of them have a 4-stroke, direct injection system, electric start mode and water-cooling system; They will make the generator sets work more economically, reliably and durably.
3. The alternators KUSING use are also famous brand with high quality, such as MARTHON, LEROY SOMER, STAMFORD, EVO-TEC ENGLA etc; They are brushless, self-excited and 4 single-bearing structure with protection grade IP21-IP23 and insulation class H.

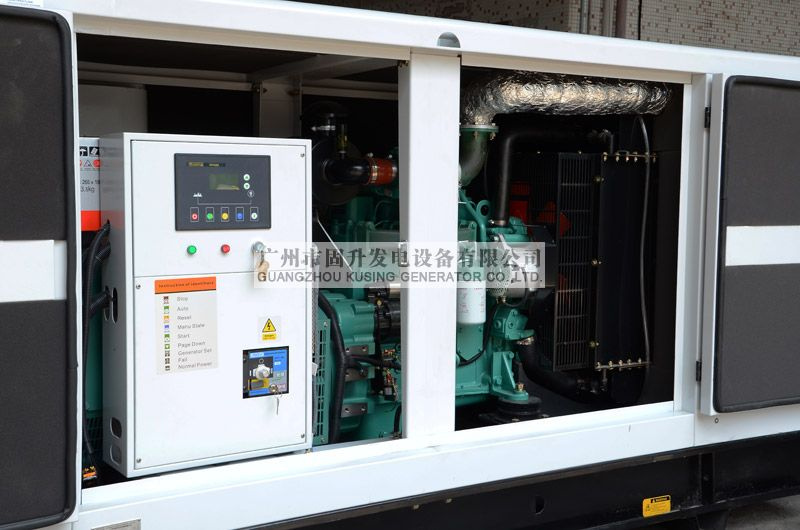

4. KUSING silent type generator sets will be mounted with a canopy; It is designed by us with the advanced soundproof technology, which can greatly reduce the noise level to 60-70dB(A) or even lower.
5. The industrial silencer system of KUSING works highly efficiently.
6. A seperated plastic fuel tank is equiped inside the generator, which can keep the fuel fine and safe.
7. All the KUSING generator sets have a anti-vibrated system.
8. The multi-functional LED controller with MFC make the operation of generator set more easily and safely.
9. If a ATS(Automatic Transfer Switch) is mounted, the generator set can running without operation by hand and charge battery by normal power.
10. The output of KUSING generator sets range from 10KVA to 2000KVA.
| Model | CK30500 |
| Phase | 3 Phase |
| Power Factor | 0.8cosØ |
| Frequency | 50HZ | 60HZ |
| Speed | RPM | 1500 | 1800 |
| Max. Power | KVA | 68.8 | 82.5 |
| KW | 55.0 | 66.0 |
| Rated Power | KVA | 62.5 | 75.0 |
| KW | 50.0 | 60.0 |
| Rated Voltage | V | 400 | 400 |
| Rated Current | A | 90 | 108 |
| Fuel Consumption | G/KW.H | ≤216 |
| Generator Controller | Auto Multi-function |
| Engine Model. | 4BTA3.9-G2 |
| Alternator | TCU228C |
| Clinder No. | 4/L |
| Starting System | Electric Start |
| Cooling Method | Water-cooling |
| Protection Grade | IP21-IP23 |
| Insulation Class | H |
| Size (MM) | Silent Type | 2600*1100*1600 |
| Open Type | 1850*850*1280 |
| Optional | ATS (auto transfer switch) |
Cummins series
| Model | Speed | Max. Power | Rated Power | Rated Voltage | Rated Current | Fuel Consumption | Generator Controller | Engine Model | Alternator | Clinder No. | Size (MM) |
| RPM | KVA | KW | KVA | KW | V | A | G/KW.H | Silent Type | Open Type |
| CK30240 | 1500 | 33.0 | 26.4 | 30.0 | 24.0 | 400 | 43 | ≤229 | Auto Multi-function | 4B3.9-G2 | TCU188C | 4/L | 2300*1100*1250 | 1630*850*1080 |
| CK30360 | 1500 | 49.5 | 39.6 | 45.0 | 36.0 | 400 | 65 | ≤214 | Auto Multi-function | 4BT3.9-G2 | TCU228A | 4/L | 2300*1100*1250 | 1700*850*1080 |
| CK30500 | 1500 | 68.8 | 55.0 | 62.5 | 50.0 | 400 | 90 | ≤216 | Auto Multi-function | 4BTA3.9-G2 | TCU228C | 4/L | 2600*1100*1600 | 1850*850*1280 |
| CK30900 | 1500 | 123.8 | 99.0 | 112.5 | 90.0 | 400 | 162 | ≤214 | Auto Multi-function | 6BT5.9-G2 | TCU228H | 6/L | 3200*1100*1800 | 2280*850*1380 |
| CK31000 | 1500 | 137.5 | 110.0 | 125.0 | 100.0 | 400 | 180 | ≤214 | Auto Multi-function | 6BTA5.9-G2 | TCU228I | 6/L | 3400*1100*1800 | 2280*850*1380 |
| CK31200 | 1500 | 165.0 | 132.0 | 150.0 | 120.0 | 400 | 217 | ≤211 | Auto Multi-function | 6BTAA5.9-G2 | TCU228K | 6/L | 3400*1100*1800 | 2380*850*1380 |
| CK31600 | 1500 | 220.0 | 176.0 | 200.0 | 160.0 | 400 | 289 | ≤212 | Auto Multi-function | 6CTA8.3-G2 | TCU288C | 6/L | 3600*1200*1800 | 2540*980*1400 |
| CK31800 | 1500 | 247.5 | 198.0 | 225.0 | 180.0 | 400 | 325 | ≤208 | Auto Multi-function | 6CTAA8.3-G2 | TCU288D | 6/L | 3600*1200*1900 | 2540*1050*1400 |
| CK32000 | 1500 | 275.0 | 220.0 | 250.0 | 200.0 | 400 | 361 | ≤197 | Auto Multi-function | 6LTAA8.9-G2 | TCU288E | 6/L | 3800*1200*1900 | 2650*1050*1540 |
| CK32500 | 1500 | 343.8 | 275.0 | 312.5 | 250.0 | 400 | 451 | ≤208 | Auto Multi-function | QSM11-G2 | TCU288H | 6/L | 3800*1200*1900 | 2850*1050*1580 |
| CK32800 | 1500 | 385.0 | 308.0 | 350.0 | 280.0 | 400 | 505 | ≤208 | Auto Multi-function | QSM11-G2 | TCU318A | 6/L | 4400*1400*2200 | 3000*1100*1890 |
| CK33000 | 1500 | 412.5 | 330.0 | 375.0 | 300.0 | 400 | 541 | ≤208 | Auto Multi-function | NTA855-G2A | TCU318B | 6/L | 4400*1400*2200 | 3000*1100*1890 |
| CK33600 | 1500 | 495.0 | 396.0 | 450.0 | 360.0 | 400 | 650 | ≤208 | Auto Multi-function | NTAA855-G7A | TCU318D | 6/L | 4800*1700*2250 | 3300*1380*1950 |
| CK34000 | 1500 | 550.0 | 440.0 | 500.0 | 400.0 | 400 | 722 | ≤202 | Auto Multi-function | QZS13-G3 | TCU318E | 6/L | 4800*1700*2250 | 3320*1280*1950 |
| CK34500 | 1500 | 618.8 | 495.0 | 562.5 | 450.0 | 400 | 812 | ≤202 | Auto Multi-function | KTAA19-G5 | TCU368A | 6/L | 5030*1860*2550 | 3650*1500*2050 |
| CK35000 | 1500 | 687.5 | 550.0 | 625.0 | 500.0 | 400 | 902 | ≤202 | Auto Multi-function | KTAA19-G6A | TCU36BB | 6/L | 5030*1860*2550 | 3650*1500*2050 |
| CK36000 | 1500 | 825.0 | 660.0 | 750.0 | 600.0 | 400 | 1083 | ≤198 | Auto Multi-function | KTA38-G2 | TCU368D | 12/V | 20FT container | 4400*2010*2450 |
| CK37200 | 1500 | 990.0 | 792.0 | 900.0 | 720.0 | 400 | 1299 | ≤198 | Auto Multi-function | KTA38-G2A | TCU428B | 12/V | 20'FT container | 4400*2010*2450 |
| CK38000 | 1500 | 1100.0 | 880.0 | 1000.0 | 800.0 | 400 | 1443 | ≤198 | Auto Multi-function | KTA38-G5 | TCU428C | 12/V | 40'FT container | 4600*2010*2450 |
| CK39000 | 1500 | 1237.5 | 990.0 | 1125.0 | 900.0 | 400 | 1624 | ≤198 | Auto Multi-function | KTA38-G9 | TCU428D | 12/V | 40'HQ container | 5100*2030*2450 |
| CK310000 | 1500 | 1375.0 | 1100.0 | 1250.0 | 1000.0 | 400 | 1804 | ≤201 | Auto Multi-function | KTA50-G3 | TCU428E | 16/V | 40'HQ container | 5100*2030*2650 |
| CK310000 | 1500 | 1375.0 | 1100.0 | 1250.0 | 1000.0 | 400 | 1804 | ≤203 | Auto Multi-function | QSK38-G5 | TCU428E | 12/V | 40'HQ container | 4950*1900*2250 |
| CK311000 | 1500 | 1512.5 | 1210.0 | 1375.0 | 1100.0 | 400 | 1985 | ≤202 | Auto Multi-function | KTA50-G8 | TCU468A | 16/V | 40'HQ container | 5800*2030*2650 |
| CK312000 | 1500 | 1650.0 | 1320.0 | 1500.0 | 1200.0 | 400 | 2165 | ≤202 | Auto Multi-function | KTA50-GS8 | TCU468A | 16/V | 40'HQ container | 5800*2030*2650 |
| CK314000 | 1500 | 1925.0 | 1540.0 | 1750.0 | 1400.0 | 400 | 2526 | ≤195 | Auto Multi-function | QSK60-G3 | TCU468C | 16/V | 40HQ container | 6150*2300*2550 |
| CK316000 | 1500 | 2200.0 | 1760.0 | 2000.0 | 1600.0 | 400 | 2887 | ≤193 | Auto Multi-function | QSK60-G4 | TCU528A | 16/V | 40'HQ container | 6150*2300*2550 |
| CK318000 | 1500 | 2475.0 | 1980.0 | 2250.0 | 1800.0 | 400 | 3248 | ≤199 | Auto Multi-function | QSK60-G8 | TCU528B | 16V | 40HQ container | 6180*2350*2650 |
Guangzhou Kusing Generator Co., Ltd is a professional manufacturer of generator sets, which produces diesel generator sets range from 10kVA to 2000kVA. Kusing has a modern facory covering more than 6000m2, located in Guangzhou(Canton), Guangdong province, China. The products of Kusing are winning more and more customers' approval and favor, and are widely applied to hotel, highway construction, mining, oil exploration, disaster relief etc. all over the world.
'Humanity, innovation, efficiency, perfection' is the belief of Kusing. We have a distinguished R&D team, which is made up of designers, engineers and technicians. To ensure the quality of products, we manufacture all the generating sets according to the International Quality of Certification: ISO9001: 2000. Our production have been with SON-CAP Certification & SASO Certification. For each new order we recieve, we will strictly apply the manufacturing steps as follows: 1st, making a production plan; 2ND, technology designing, 3rd, supporting the procurement, 4th, manufacturing, 5th, performance controlling, 6th, testing, 7th, packing and warehousing. With convincing quality, Kusing products endue generators 'Made in China' with a new implication-'European quality with competitive price'.
Kusing has steady and long-term cooperation with famous companies, such as engine: CUMMINS, PERKINS, LOVOL, Volvo, YTO, SDEC, YANGDONG, WUDONG, KOFO etc., alternator: STAMFORD, MARTHON\LEROY SOMER, EVO-TEC, ENGGA, etc. The above engines give the diesel generator sets we made a strong and stable heart. And the high quality brushless alternators ensure the generators to supply electricty safely and stably for a long time. Nowadays, with great enthusiasm and persistence efforts, all Kusing members are working toward the goal of being one of leading enterprise in the international lines. Warmly welcome people from all over the world to visit our company and cooperate with us!
