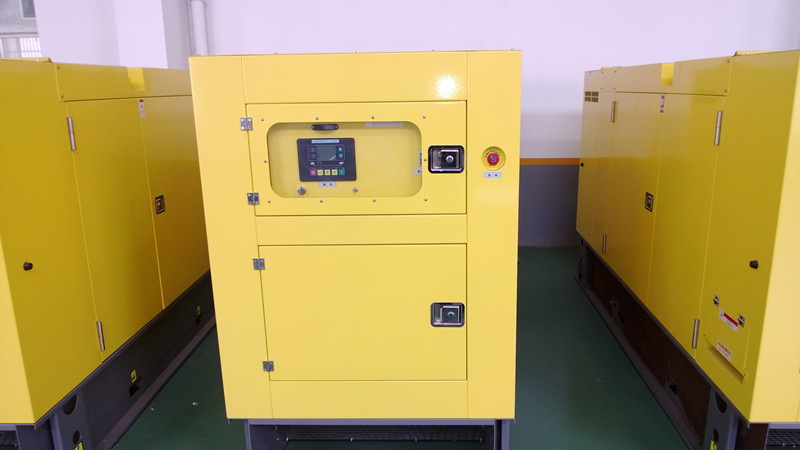

60kw generator Lovol
Self-excitation system, high quality diesel engines, Low fuel consumption, super silent, strong maitainance, easy operation, ATS & paralleling system.
Engine Specifications:
1. Engine model: LOVOL
2. Engine type: Water-cooled, in line 4-stoke, dry cylinder liner, direct injection
Alternator Specifications:
1. Alternator Model: Brushless and "H" class insulation
2. Alternator Model: Brushless alternator.
Genset Specifications:
1. Output range: 20-150KW
2. General datas: 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires
3. Model of coolent: Water-cooled
4. Operation time: 9.5hrs operation base tank
5. Start way: Key start & auto start system
6. Control system:
A) Automatic alarm system: The unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current.
B) Operation display:
1) Unit voltage, tri-phase load current and frequency display
2) Water temperature, oil pressure display
3) Fuel level, fuel temperature display
4) Audible and visual alarm lamps and buzzers
7. Starting system: DC alternator to start engine
8. Short circuit protection: MCCB air switch
9. Cooling system: Combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40C
10. Filter system: Oil, fuel and air filter
11. Accessories: Exhaust elbow, bellow, muffler.
12. Supply standard collocation:
A) Diesel engine with all accessories, 3 filter, electric systems
B) Alternator
C) Steel structure
D) Fan and water tank cooling system
E) Flange connector
F) 12V / 24V starting motor and charge engine
G) Air cleaner, fuel cleaner, oil cleaner
H) On-board control panel
I) MCCB air conservation switch
J) 12 / 24V starting accumulator and Battery line
K) Set shock absorber
L) High-efficient silencer
M) ATS & paralleling system.
13. Optional Accessory: Engine coolant and oil heater, Alternator space heater, Cooling for heat exchanger, Control system communication interface, Battery charger by main supply, Fuel-water separator, Daily fuel tank, ATS & paralleling system, Soundproof Canopy and Moving Trailer.
14. Packing: Firm wooden case/Plywood case.
ATES Power. Registered in fujian province in 2003 is a professional manufacturer & exporter in diesel/gas generator, alternator, water pump and healthcare products. With a new industrial park covering 3400 square meters, headquarter is located in yangquan industrial area, ATES has achieved rapid development in the past decade and now we has set up some subsidiaries, national wide sales service system in China and have many customers from some countries of Asia, Africa, Middle East, east Europe and south America so far. Rely on the provision of professional generating services as a starting point, ATES was a provincial new and high-tech enterprise with integration of R&D, design, producing, sales and whole project construction through a short span of 10 years development, covering four areas of energy saving, environmental protection, electricity power and energy.
During the foundation, ATES always carried the science and technology developing model of introduction, digestion and absorption, to build a well-known ie generator brand through cooperating with the international leading technology companies such as cummins. At the same time, individual value-added services not only maximize the value of the customers and ourselves, but also expand the influence of ATES brand, which create the amazing performance in rapidly growth. Rely on scientific and technological progress and develop independent brands, are the magic weapon of ie to sustain in the fierce generating market competition.
