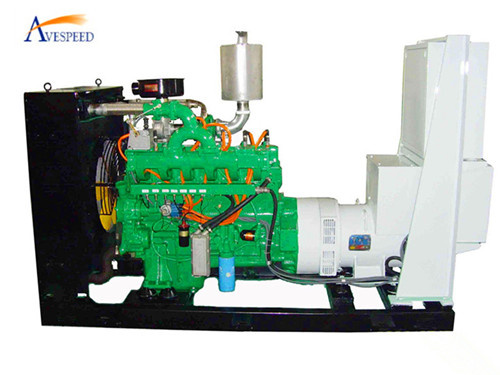

60kw flexible system operation natural gas generator set
The Reasons For Choosing AVESPEED Gensets:
1. Flexible installation capacity
Customers can install appropriate number of units of generators according to specific load requirement. The unit capacity of AVESPEED generator ranges from 30kw to 600kw. The capacity of the engine can be increased easily to meet the requirement of increasing load thereby reducing shortage of power supply or avoiding excessive installation capacity.
2. Flexible system operation
With the features of quick starting, synchronization and quick on-load, when power supply is needed, customer can start generator according to specific load. No matter how long the generator operates per year, AVESPEED generator will provide power supply with consistent efficiency.
3. Flexible installation site
The installation of generator could be centralized or in distribution. If the location of the system load is frequently changed, containerized generator is an option.
4. Flexible fuel quality
AVESPEED has a generator for each of the different types/quality of gas, such as piped natural gas, associated gas, coal-bed methane and biogas. Briefly, gas with calorific value above 3.5 MJ can be used.
5. Flexible maintenance plan
Flexible maintenance plan can be made for generator in parallel operation. The customer can opt to maintain the generator by rotation, so the power supply of the system will not be interrupted during maintenance. Maintenance of one generator will not affect the normal power supply of other generators.
|
Natural gas Generator Set |
|
Generator Set |
Type |
30GF-PT |
40GF-1PT |
50GF-PT |
60GF-PT |
|
ekW |
30 |
40 |
50 |
60 |
|
LxWxH (mm) |
2295x860x1540 |
2295x860x1540 |
2200x900x1650 |
2300x860x1540 |
|
Weight (kg) |
1150 |
1200 |
2120 |
1250 |
Engine |
Type |
T6105 |
T6105A |
T4135 |
T6105ZL |
|
Bore x Stoke (mm) |
105x125 |
105x135 |
135x150 |
105x125 |
|
Displacement (L) |
6.49 |
7.10 |
8.60 |
6.49 |
|
Speed(rpm) |
1500(50Hz) |
|
Speed(rpm) |
1800(60Hz) |
|
Starting Mode |
24VDC Electric starting system |
|
Cooling type |
Closed water cooling |
|
Governing Method |
Electronic governor |
Generator |
Type |
DL2C 32GF |
DL2D 40GF |
DL2F 56GF |
DL2G 64GF |
|
Rated Voltage (V) |
400 |
400 |
400 |
400 |
|
Current (A) |
54 |
72 |
90 |
108 |
|
Power factor |
0.8(Lagging) |
|
Phase and connection |
3 phases 4 wire,Y-connection |
|
Excitation |
Brushless |
|
V-regulator |
Automatic |
Control Panel |
Feature |
Power by 24 volts DC,Degree of protection IP54,Lockable hinged door,start/stop control switch, Voltage adjustment. |
Data Views |
RPM,Operating hours, The total generating capacity,Oil pressure, Coolant temperature,DC voltage,Hz,ekW,Frequency,Voltage, pf,Exhaust temperature, Engine cylinder temperature, Speed. |
Protection Functions |
Low oil pressure; High coolant temperature; High oil temperature, Over speed,Emergency stop,Under/Over voltage,Under/Over frequency, Over current Reverse power, |
|
Spare |
Spare indicator LEDs ,Spare alarm/shutdown inputs |
