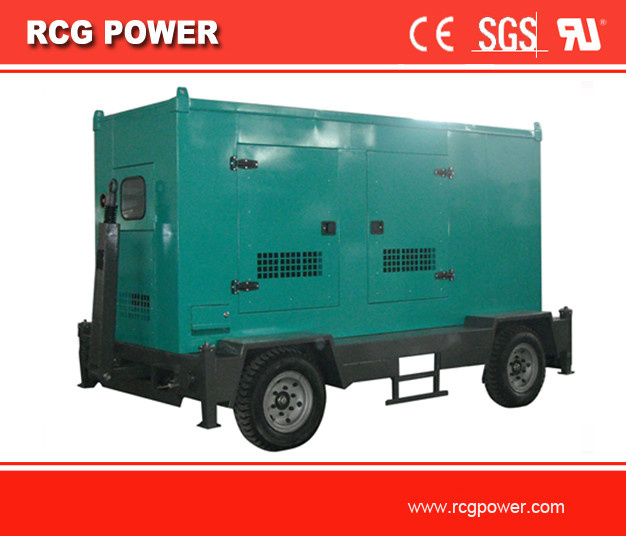

Generating Set Specification
| MODEL |
R-C60S |
PRIME POWER (KVA/KW) | 60/48 |
| STANDBY POWER(KVA/KW) | 66/53 |
| Rated voltage(V) | 400/230 |
| Rated speed(rpm) | 1500 |
| Rated frequency(Hz) | 50 |
| Power factor | 0.8 |
| Ambient temperature(ºC) | 40 |
| Altitude(m) | 1000 |
| Connection type | 3 phase 4 wires |
| ENGINE MANUFACTURER |
CUMMINS |
Model | S3.8G7 |
| No. of cylinders & configuration | In-Line 4 cylinders |
| Method of operation | 4-stroke |
| Speed regulation | Electric governor |
| Starting system | DC 12V Electronic start |
| Cooling method | Closed-circuit cooling system |
| ALTERNATOR MANUFACTURER | STAMFORD |
| Number of Phase | 3 |
| Connection Type | 3Phase and 4Wires |
| Number of Bearing | 1 |
| Power Factor | 0.8 |
| Winding/ Pitch | 100% Copper 2/3 Pitch |
| Cooling Fan | Cast alloy aluminum |
| Exciter Type | Brushless, Self-Exciting |
| Insulation Class, Temperature Rise | H/H |
| Telephone Influence Factor( TIF) | TIF <50 / THF<2% |
| Total Harmonic TGH/THC | <1.5% at no load / <5% at load |
| Voltage Regulation, Steady State | ≤±1% |
| Sustained Short-Circuit Current | 300%(3 in):10s |
| CONTROL SYSTEM | DSE SERIES |
Engines and alternators
Cummins engines and Stamford alternators featured with high power and torque, quick start ,easy maintenance and operation
Compact structure
Compact structure ,small size ,and longer service life.
High quality steel and paint craftwork
The canopies are made by high quality steel and powder spray procession, which is highly endurable against erosion and scratch, with over 5 years rustproof guarantee.
Advanced waterproof and dustproof design
The control panel, service doors, and canopy board adopts waterproof, and effectively stops rain and dust intrusion
Excellent anti-vibration devices
Anti-vibration mountings between the engines, alternators and the base significantly reduce the vibrations during operation, ensuring stable operation .
All movable devices are fixed firmly, and therefore help reduce vibration.
