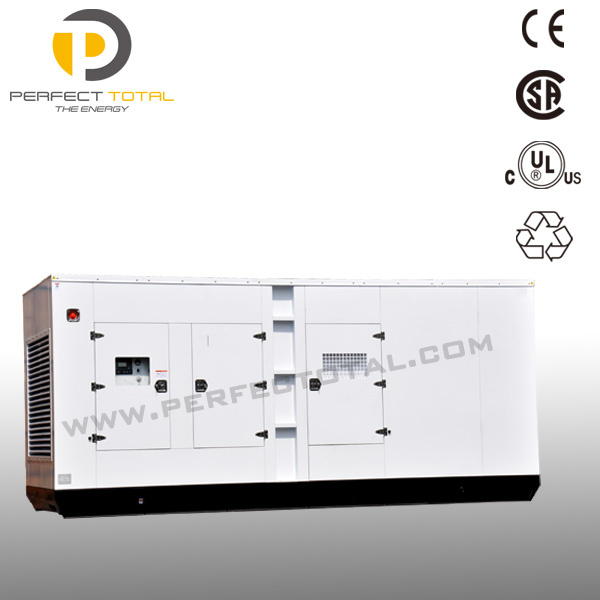

60kVA~1000kVA Genuine Silent Diesel Engine Generator with CE/Soncap/CIQ Approval
| Price: |
US $ 129711/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
60kVA~1000kVA Genuine Silent Diesel Engine Generator with CE/Soncap/CIQ Approval
Quick Details
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: perfectotal
- Model Number: 800EPTC
- Output Type: AC Three Phase
- Speed: 1500
- Frequency: 50hz
- Rated Power: 800kw/1000kva
- Rated Voltage: 220v/380v
- Rated Current: 1519A
- Product Name:: 800kw/1000kva backup diesel generator
- Engine brand:: cummins KTA38-G2A
- Alternator Brand:: Stamford/ Leory Somer/ MECC
- Noisy Level:: 65dba
- Fuel tank Capacity:: 510 liters
- Bottom Forklift:: Yes
- ATS:: Yes
- Frequency:: 50Hz or 60Hz
- Steel:: Galvanized then powder coating
- Controller:: DEEPSEA
Specifications
800kw/1000kva backup diesel generator
cummins engine/stamford alternator
50hz,220v/380v,3 phase
65 dba
Rated power(Kw/kva) | 800/1000 |
Frequency(Hz) | 50 |
Pahse | 3 |
Voltage(V) | 220/380 |
Current(A) | 1519 |
Fuel capacity(L) | 510 |
Fuel consumption(L/Hour) | 209 |
Dimension (mm) | L | 6060 |
| W | 2400 |
| H | 2450 |
Weight(kg) | 13000 |
Noice level for silent type(Db/7m) | 65 |
Engine
Model | KTA38-G2A |
Prime power(kw/kva) | 800kw/1000kva |
Cylinders | 6 |
Bore×stroke(mm) | 159x159 |
Intake Method | Natural intake |
Displacement(L) | 14 |
Speed governing | Mechanical governor |
Cooling starting method | Water cooling |
Alternator
| Model | LV634EPTC |
| Rate power(kw/kva) | 800kw/1000kva |
| Insulation | H |
| Alternator | IP23 |
| Prod Model: |
800EPTC |
| Markets: |
North America,South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Cummins Engine: |
Silent Diesel Generator |
| Type: |
Basic Diesel Generator |
| Installation Method: |
Portable |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
HANGZHOU PERFECT TOTAL MACHINERY Co., Ltd. Built at 2014 Year and we have 14 years experience of doing Diesel Generator, Light Tower. We are Specialized in production and sales of diesel generators, super-silent generator, REEFER CONTAINER generator, mobile light tower, plant oil generator, message signs, construction machine, and the development of new products. We have much experience in manufacture and have strong technical strength. All products are of good quality and we are able to offer the efficient service, therefore the products are popular in our clients and enjoy and excellent reputation. We have big market in Dubai, Australia, Canada, USA, Malaysia, ...etc market. Offering OCEA power system equipment and high-quality service to over 200contries. We can do Generator power ranges from 5kVA to2200kVA. According to the functions, we offer common type (standard), automation, trailers, Van, low noise, and other series. We can design and manufacture the special specification and models in accordance with the customers' requirements. We would like to invite reliable partner join us!
