Home Generator Products 60Hz Small Soundproof Perkins Generator (C16P6S)

60Hz Small Soundproof Perkins Generator (C16P6S)

60Hz Small Soundproof Perkins Generator (C16P6S)
Price: US $ 4830/Piece
Trade Terms: FOB
Min Order: 1/Set
Pay Type: L/C,T/T

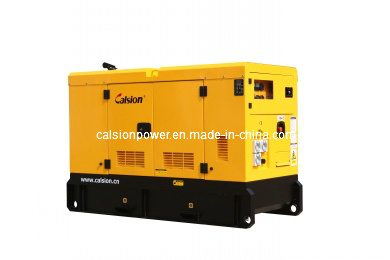

60Hz Small soundproof Perkins generator

Engine: 403D-15G (Perkins)
Prime power: 16kVA/13Kw

1) OEM Top Quality
2) ATS, AMF, Synchronization Optional
3) CE / ISO Certificate
4) Competitive Price with High Quality

1, Various Voltage available but coupled alternator model may be changed. For detailed inquiry, pls contact Calsion sales.
2, Leroy Somer Brushless Alternator, Single Bearing, Flange Connection, IP23, Insulation Class H, AVR Fitted. (Stamford, Engga and Marathon for Option)
3, with 8 Working Hours Base Fuel Tank(for the both of open & silent genset ≤ 650kVA prime, only Base Frame for other models), AVM Suspension System, Set-mounted Exhaust System, Battery, Battery Charger and Lead supplied
4, with Delixi Breaker, ABB Breaker for Option
5, Complete Operation/Maintenance Manuals for Genset/Engine/Alternator, Genset testing report
6, Warranty: One year or 1000 Working Hours from the shipment date, whichever comes first.
Genset Model           Power Output  60HZ/220V/3P4W Engine Model    ( Perkins )      Alternator
Model   (Leory Somer)
KW KVA A
C11P6S  9 11 30 403D-11G  LSAP40C
C16P6S 13 16 43 403D-15G  LSAP40D
C23P6S 18 23 59 404D-22G  LSAP40G
C33P6S 26 33 85 404D-22TG LSAP42D
C63P6S 50 63 164 1104D-44TG1  LSAP43E
C78P6S  62 78 203 1104A-44TG1 LSAP43F
C94P6S 75 94 246 1104A-44TG2 LSAP43F
C110P6S  88 110 289 1104C-44TAG2 LSAP44C
C150P6S 120 150 394 1006A-70TAG1 LSAP44F
C170P6S  136 170 446 1106A-70TAG2 LSAP44G
C200P6S 160 200 525 1106A-70TAG3 LSAP44H
C35P6S  28 35 92 1103A-33G  LSAP42D
C54P6S 43 54 141 1103A-33TG1  LSAP43D
C69P6S  55 69 180 1103A-33TG2  LSAP43E
C75P6S  60 75 197 1104D-E44TG1 LSAP43E
C94P6S 75 94 246 1104D-E44TG1 LSAP43F
C110P6S  88 110 289 1006TG1A  LSAP44C
C125P6S  100 125 328 1006TG2A  LSAP44D
C150P6S  120 150 394 1006TAG  LSAP44F
C160P6S  128 160 420 1006D-E66TAG 2 LSAP44F
C169P6S  135 169 443 1006C-E66TAG3 LSAP44G
C206P6S  165 206 541 1006C-E66TAG4 LSA46.2 M3
C231P6S  185 231 607 1306C-E87TAG3 LSA46.2 M5
C250P6S  200 250 656 1306C-E87TAG4 LSA46.2 L6
C406P6S 325 406 1066 2206A-E13TAG5 LSA47.2VS2
C450P6S 360 450 1181 2206A-E13TAG6 LSA47.2VS2
C525P6S 420 525 1378 2506A-E15TAG3 LSA47.2S5
C585P6S 468 585 1535 2506A-E15TAG4 LSA47.2M7
C625P6S 500 625 1653 2806A-E18TAG1A LSA47.2M8
C688P6S 550 688 1804 2806A-E18TAG3 LSA47.2L9
C750P6S 600 750 1968 4006-23TAG2A LSA49.1M6
C848P6S 678 848 2165 4006-23TAG3A LSA49.1M6
C880P6S 704 880 2309 4008TAG1 LSA49.1M75
C1000P6S 800 1000 2624 4008TAG2 LSA47.1L11

Prod Model: C16P6S
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency: 60Hz
Rated Voltage: 220V
Rated Current: 43A
Engine Brand: Perkins
Alternator Brand: Leroy Somer(Other Brand Optional)
Controller: Dse3110
Option: Ats, Synchronization, etc
Color: Blue, Yellow, White, as Per Requirement
Quality Standard: CE, ISO9001
Noise: 75 dB(a) @ 7m
Output Type: AC Three Phase
Cooling Method: Water Cooling
Stroke: Four Stroke
Installation Method: Fixed
Type: Micro-Computer Control Automatic Diesel Generator
Calsion Power System Co Ltd established in 1996, specialized in generator development, manufacture, marketing and services. The company which covers 20 000 square meters is located in Economic and Technological Development Zone in Hefei, has a professional R&D center, a modern production base and excellent test system, with an annual capacity of 10, 000 units.

Calsion insist 'to the market demand-oriented, technology innovation as the driving force'. Calsion can provide every kind of emergency power system or used to meet various types of power solutions and systems integration building. Products include diesel generators, gasoline generators, gas generators, cooling systems, control systems, distribution systems and other series, including generator sets, including open type, silent type, truck, trailer, mobile generator and other types of stand-alone power Cover 1.5kW-3200kW. Providing users with sales and service through the worldwide network, meanwhile, the products are exported to Southeast Asia, the Middle East, Africa, and Europe, America and other countries and regions. Calsion's products are first-class reliability and durability, which can meet all kinds of harsh environments and high-altitude areas of need. Widely used in national defense, energy, electricity, transportation, communications, finance, medical, tourism, real estate, mines, factories and other fields. Each customer, each project has different needs, from the beginning, we provide the technical support system, find the best solution.

Calsion has a strict quality management system and obtained ISO9001/14001/OHSAS18001 certificate. With strict testing, excellent performance, brilliant quality and world-level technology, we got TER and CE certificate.
