Oxygen flow capacity(L/min) 5 10 15
Ozone concentration(mg/L) 108 88 68
Ozone output(g/H) 32.4 52.8 61.2
Oxygen purity: >92% Dew point of oxygen source: : -40~-60C Outlet pressure: ≤ 0.05Mpa
Air resource flow capacity(L/min) 100
Ozone concentration(mg/L) 2.8 Air Source humidity: <10% air-source temperature: ≤ 10 C
Ozone output(g/H) 16.8

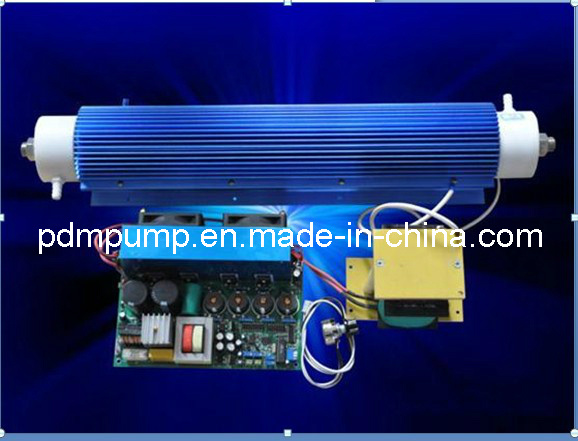

Item: PDMCT60
Ozone output: 60g/hr (oxygen resource)
Generator tube size: 600*100*100MM
Generator Power size: 200*150*100MM
Voltage: AC 110-250V/45-60Hz
Frequency: 45-60Hz
Rate: 50-800W (regulable)
Output voltage: 3.5KV-4KV
Output frequency: 3-6kHz
Power features:
1, IGBT drive, bandwidth auto / manual,
2, start slow start (to limit inrush current)
3, the power supply over-voltage protection.
4, the power converter over temperature protection, output short circuit protection.
5, circuit interference, moisture, corrosion design.
Changsha PDM Machinery (Group) Co., Ltd, established in 1982 year, 1992 year, 199 year and 2002 year, with own 4 factories, one for oil pump manufacture, one for split case pump manufacture, one for turbine pump, boiler &multistage pumps manufacture, one for other types of pump manufacturer. We own our cast factory.
With its production bases for industrial water pump and mechanical products, ranging from pump series, variable frequency control series, soft start cabinet, valve, motor and diesel set, electric machine and the series of complete set of water supply equipment. The products are widely used in the filed of city planning, water conservancy, architecture, fire protection, electric power, environment protection, petroleum, chemical industry, mining and medicine.
