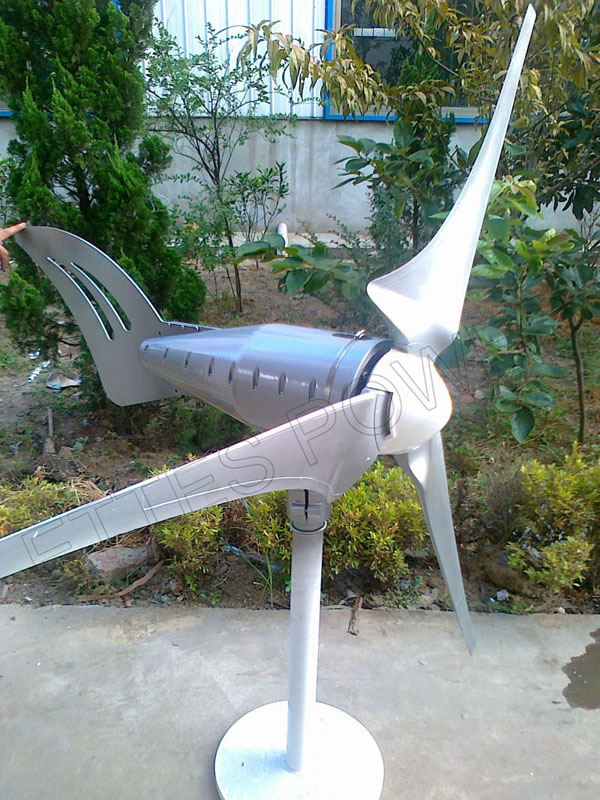

(1). Blades made from carbon fiber, molding, and the weight less than 500g.
(2). The whole structure made of aluminum alloy except stator and rotor of motor.
(3). Anti-vibration measures applied to the rear of windmill, runs smoothly.
(4). Connected to the pole with clamp, simple and reliable, do not need to match the flange.
(5). Easy installation, only one screw be used for 3 blades installation.
(6). Packing size(mm): 1000 x 550 x 220
Size of generator package: 1000mm x 550mm x 220mm
Size of controller: 150mm x 145mm x 85mm
Height of guy cable tower: 6m
Tower Diameter: 60mm
Wall thickness: 2.5mm
|
HQ-400 |
HQ-600 |
HQ-1000 |
Rated Power(W) |
400 |
600 |
1000 |
Rated Voltage(DCV) |
24 |
24 |
24/48 |
Rated Current(DCA) |
16 |
25 |
41/20 |
Rotor Diameter(m) |
1.5 |
1.6 |
1.8 |
Materials of blades |
Carbon fiber composite |
Carbon fiber composite |
Carbon fiber composite |
Rotation Direction (down wind) |
Clockwise |
Clockwise |
Clockwise |
Start-up wind speed (m/s) |
2 |
2 |
2 |
Rated wind speed (m/s) |
9.6 |
10.5 |
13 |
Sruvival wind speed (m/s) |
45 |
45 |
45 |
Each blade weight(kg) |
0.35 |
0.35 |
0.5 |
Gnerator weight(kg) |
18 |
18.6 |
19.5 |
Type of Gnerator |
Permanent Magnet Synchronous Generator |
Permanent Magnet Synchronous Generator |
Permanent Magnet Synchronous Generator |
No. Of blades |
3 |
3 |
3 |
Wind turbine type |
Upwind |
Upwind |
Upwind |
HULK ENERGY has for over 10 years been specializing designing and distributing wind and solar power products. We service everything we sell. We have seen scores of companies come and go, but we have consistently been here to take care of our customers. We supply good quality, low-priced renewable energy systems - proving that renewable power need not cost the earth. We've provided you very comprehensive alternative energy products, including complete systems, solar panels, wind power generators, solar light system, solar mounting systems, electric, inverters, controllers and batteries. Our mission is to demonstrate that green energy is genuinely viable, whether you are living on or off grid - and that renewable energy can be a sound financial investment, as well as a sound investment in our future.
We believe that Alternative Energy products should not only be utilitarian, but also be aesthetically pleasing to look at. Our experience means that we will execute our services as efficiently as humanly possible. And lastly, we believe in innovation and creativity, finding new ways to serve our customers better.
