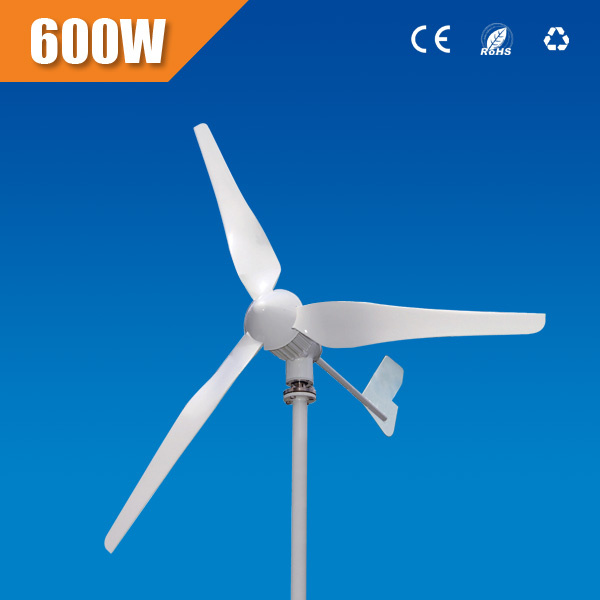

Home Generator Products 600W 24V/48V DC 3 Blades Wind Generator (PWT600/11-H)

600W 24V/48V DC 3 Blades Wind Generator (PWT600/11-H)

600W 24V/48V DC 3 Blades Wind Generator (PWT600/11-H)
Price: US $ 370-470/Piece
Trade Terms: others
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union
Main info

Item No: PWT600/11-H
Rotating Shaft: Horizontal
Blade no: 3 blades
Warranty: 3 years
Long life time: Up to 15 years.
Yawing Type: Mechanical yawing
Protection: Electromagnetic Brake
Export Markets: Global

Another Info.
Packing: Foam And Carton
Origin: Guangzhou, China
Production Capaity: 1000 PCS Per Month

Product Description:
Guangzhou Poem of Light Energy Technology Co., Ltd is specialized in R&D and manufacturing wind turbines, solar home systems, wind-solar hybrid street lights as well as a wind/solar energy solution provider in Guangzhou.

Wind turbines features:
High Efficiency, High reliability
Start Up in Gentle Breeze
Maintenance- free
Light Weight, Easy to Install
Heavy Wind Resistance, Low Noise
Anti-Rust, Anti-Corrosion
Damp-Proof, Water-Proof, Sand-Proof
Use Magnetic circuit which is made by permanent magnet, high-quality tombarthite with optimal design lead to high electricity transform efficiently
The PWT600/11-H wind turbine uses natural wind energy to drive rotor and generator for generating electric, and then stores it in the battery by controller. The battery will discharge electric energy to lighting or other DC appliances when they are using. It's also can convert to AC 220V/50Hz (or 110V/60Hz) by inverter for AC appliances.

Application:
POL series wind generator is a new type of green energy specially applies for roadway illumination\park landscape illumination\home appliances, as well as some places lack of electricity or no electricity, such as rural area\mountain area\pastoral area\border post\weather station\radar station\ relay station and outdoor exploration, the small and medium power generation is an ideal investment and lifetime benefit device.

Picture of reference:



Wind turbine workshop:



Certificate:
              Technical Parameters

Rated Power 600W
 Maximum output  800 W
Start-up wind speed 2m/s
Cut-in wind speed 2.5m/s
Rated wind speed 10m/s
Survival wind speed 50m/s
Rated DC output 24V/48V
  Low Noise   LAeq 35dB@5m/s@5m behind rotor
Over speed protection Electromagnetic braking by adaptive controller
  Working Temp. range ° C

   from -40° C to 60° C .
special low temp. blade is very suitable for low temp areas . the blades is tested on the low temp during long years ,they are still working.  On High temp areas (like middle east ). they have been running for many years.
Height of pole 6m-10m
Generator Type   Brushless 3-phase PMA with high performance Neodymium Magnets. every magnets is smart,  whole wind turbine is convenient.
  Hub  and main frame    made of aluminium alloy which higly  resistant to corrosion  , reduce whole wind turbine weight , more easly to install and transport

    Appearance
Color white
Diameter of rotor 1.7m
Blade material FRP  (Fiber Reinforced Plastic )
Gross weight 29kg
Packing dimension 1295*470*255 mm

Prod Model: PWT600/11-H
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Power: 600W
Rotating Shaft: Horizontal
Stress Way Of Blade: Resistance
Number Of Blade: 3 Blades
GUANGZHOU POEM OF LIGHT ENERGY TECHNOLOGY Co., Ltd(POL) is a high-tech company specilized in R&D, production and sales of wind turbines, solar home systems and this kind of new energy products. POL pools a group of advanced technical personnel in the field of new energy generation. Among them are 5 overseas returnee doctors and masters with many years working experience in this field abroad.

POL has independent R&D centre, regarding independent innovation as lifeline of the enterprise. The company has built the new energy generation solution technical plarform with filtering by high-lights, generation by dim-lights and breeze, energy management and intelligent control as core technology with several technology advanced in the world and proceded in China.

On the basis of the independent R&D, the company promote international co-operation positively; And trace and synchronize international technology development in new energy field through the co-operation to make sure that the company's strategic development direction is right.

The main products of POL include high-efficient Wind turbine, new energy street lamps, home power system and other application products. With our advanced technology platform, POL can provide a lot of new energy power generation solutions for our custommers.
