1. Company Introduction
- Since 2008
- Factory area over 40000m2
- Starff over 260 employees
- Technicians over 100 people
- website www.lvhuandongli.com
2. Advantage
- Strong structure & Strengthen accessories
- Easy Start & ATS system
- Auto voltage regulation & Stable working condition
- Imported and easy-operation control system
- Imported and accurate gas control system
- Standard parts for easy maintain
- long life operation and low-operation cost
3.Requirements For Natural Gas Genset Working Condition
Within 1m from pressure regulating valve of gas intake
- The ratio of CH4 in natural gas ≥70%
- Pressure of natural gas: 80-200kpa, rate of pressure change ≤ 1kpa/min
- H2S ≤ 20mg/Nm3
- Impurity particle size ≤ 5μm, impurity content ≤ 30mg/Nm3
- Moisture content ≤ 40g/Nm3
4. Visitors

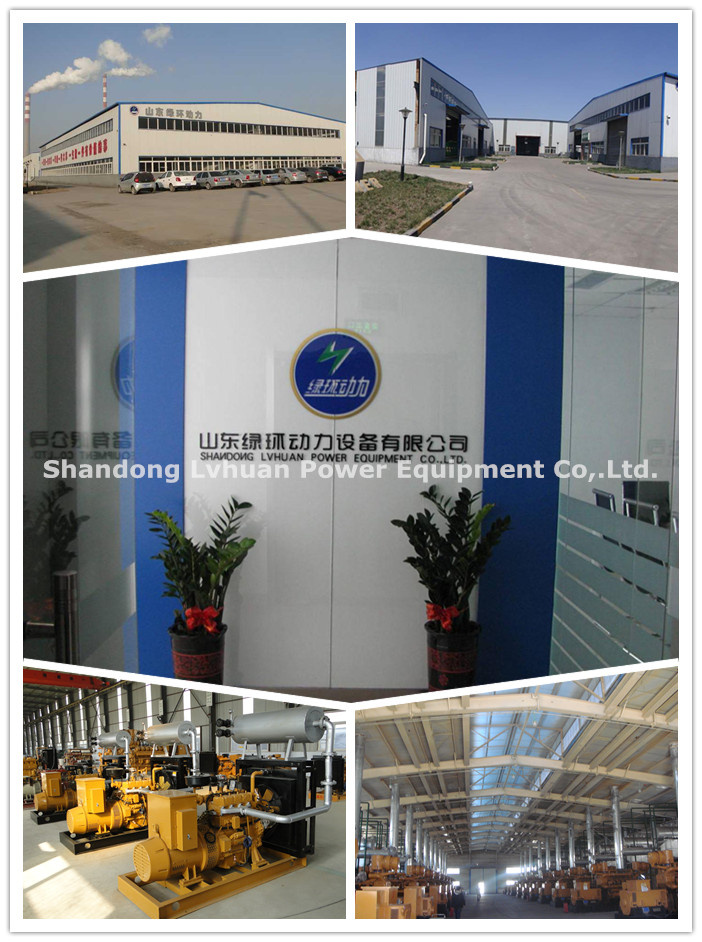

5. Our factory and workshop

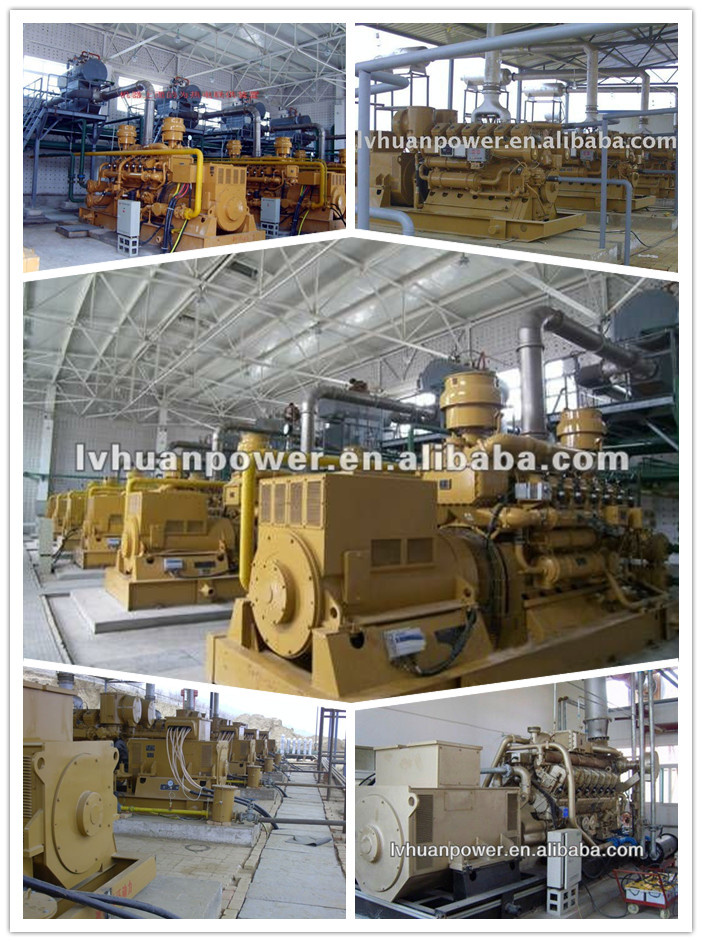

6. Project Cases
7. Service
1.pre-sale service:
(1)We will send our engineer to prospect the site of power station free to charge.
(2)According to the situation of site we can supply you many drawings:like power station floor plan,
engineering flow sheet of circle cooling system,genset installation,genset foundation,electrical connection and some other techincal support etc.
2.Sale service:
(1)we will send our engineer to the site to guide you the installation of generator set, subsystem and relative equipment.
(2)We will debug the generator set till it can generate power successfully.
(3)We will also supply a technical training to the operators.Orcan send your staff to our company.We can train you till you can operate the generator set.
3.After-sale service:
(1)Our every engineers are in charge of different area,we will response periodically and support you
technical service free of charge,
(2)For the quality problem, we will service for you free of charge during the guarantee period.
(3)One year guarantee period and lifetime service.
(4)we solve quality problem in time when genset doesn't work,We insure to help our clients to gain the biggest economic profit.
12. Accessories
1.Application scope of the Accessories,such as 12v190,8v190,6190,6135 and other engine types.
2.All parts were from original factories or professional factories,complete in specification,keep good quality.
Sincerely welcome to visit our factory and build future cooperation relationship. Helping our customer generating electricity is our purpose.

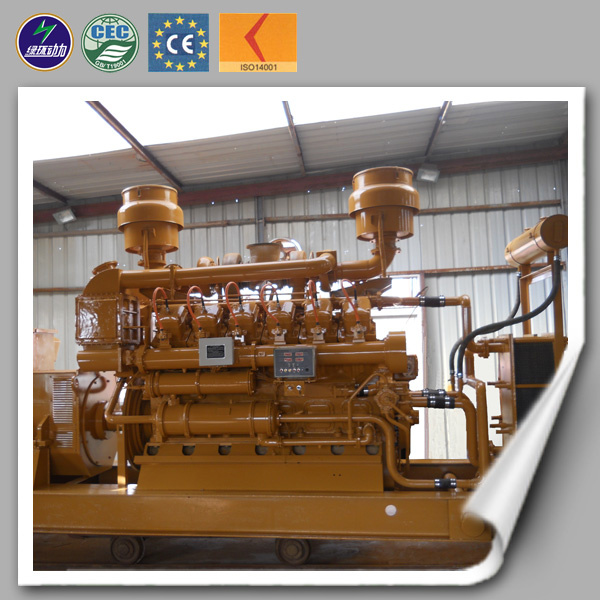

Parameter of 600kw Natural gas generator set |
Model |
LHNG600 |
|
|
Standard |
JB/T9583.1-99 |
|
|
Engine model |
LH12V190ZLDT |
|
|
Alternator model |
Brushless /IP23/3PH 4Wire) |
|
|
Machine power |
550KW/600KVA |
|
|
Rate voltage |
400V / 220V (adjustable) |
|
|
Rate frequency |
50/60Hz |
|
|
Rate power factor |
0.8 |
|
|
Rate speed |
1000r/min |
|
|
Speed regulation mode |
Automatic |
|
|
Voltage regulation mode |
Automatic |
|
|
Operation model |
Auto/Manual |
|
|
Cooling mode |
Open/close water cooling |
|
|
Start mode |
24V DC electric motor |
|
|
|
|
|
|
Parameter of 600kw Natural gas engine |
Engine mode |
LH12V190 |
Sparking mode |
Sparking pl |
Gas mixing type |
IMPCO |
Heat Consumption |
≤10MJ/kW.h |
Cylinder number&type |
12/Vee60° |
EGT |
≤650 degree |
Cylinder diameter |
190mm |
Stroke |
210mm |
Displacement |
71.45L |
Lubrication |
Pressure and splash |
Rate speed |
1000r/min |
Cooling model |
Open/closed water cooling |
Emissions targets |
EU III |
Noise |
≤105dB |
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
