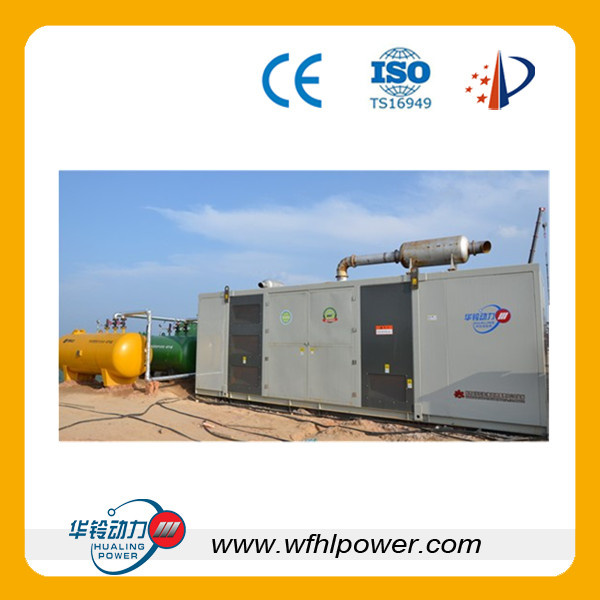

600KW natural gas generator set
1. OEM factory
2. CE&ISO16949
3.12 year manufacture experience
4. World wide generator service
Model |
HL600 |
Gas Engine Model |
G12V190ZLDT |
Rated power |
600kW |
Alternator Model |
Marathon Stamford |
Rated voltage |
400/230 V |
Control panel model |
LT600A |
Rated speed |
1500rpm |
Starting method |
24V DC electric start |
Rated frequency |
50Hz |
Coupling method |
Elastic coupling |
Rated current |
1082A |
Voltage regulation |
Automatic |
Power factor |
0.8 Lagging |
Cooling Mode |
Opened |
Control mode |
Remote electric control,
Hand control |
Dimension (mm) |
4700´1970´2778 |
Net Mass(kg) |
11800 |
MAIN ELECTRICAL PERFORMANCE OF THE GAS GENERATOR
Voltage |
Frequency |
Stabilized regulation |
Instantaneous regulation |
Recovery time |
Fluctuation |
Stabilized regulation |
Instantaneous regulation |
Recovery time |
Fluctuation |
±2.5% |
+20% -15% |
1.5 S |
0.5% |
0-15% adjustable |
±10% |
< 7 S |
0.5% |
CONTROL PANEL
Control panel is panel type, vertical structure.
Control panel is equipped with meters showing various parameters of operating status, automatic air switch and timer. |
MAIN SPECIFICATIONS OF GAS ENGINE
Model |
G12V190ZLDT |
Rated power |
800kW |
Number and layout of cylinders |
12-cylinder, V-type, 60° included angle |
Type |
Four stroke, Water cooled, Turbo-charged, air after-cooled, Electronic control timing air intake |
Fuel |
Natural gas |
Ignition type |
Spark plug ignition |
Intake gas pressure required |
≥ 1 psi |
Bore´Stoke |
190´210 mm |
Total Displacement |
71.4 L |
Heat consumption |
≤11386kJ/kW@h |
Gas consumption |
≤0.32m3/kW@h |
Oil consumption |
≤1.63 g/kW@h |
Idle speed |
700 rpm |
Exhaust temperature (before turbine) |
≤650 °C |
Net mass |
5300 kg |
Heavy overhauling period |
40000 h |
Manufacturer |
Jinan Diesel Engine Company, Ltd. |
MAIN SPECIFICATIONS OF ALTERNATOR
Alternator model |
Exciting model |
Insulation class |
Connection |
Cooling |
Structure type |
MX-600-4
(MARATHON) |
Brushless |
Class H |
3-pahse, 4-wire |
Air cooled |
AVR and reactive droop regulator assembled in alternator |
LVI 634B
(STAMFORD) |
Brushless |
Class H |
3-pahse, 4-wire |
Air cooled |
AVR and reactive droop regulator assembled in alternator |
MWL 42C
(MAGATON) |
Brushless |
Class H |
3-pahse, 4-wire |
Air cooled |
AVR and reactive droop regulator assembled in alternator |
Weifang Hualing POWER CO. Ltd. It is located in the Power city, WEIFANG. With the integration of R&D, Design, Producing, Marketing and whole project construction, specializes in Energy, Electricity power, energy-saving, Environmental protection project.
The company has been identified OEM certificates by 8 World famous Engine group, ISO9001 quality management system certification, China energy-saving product certification. The company invested 2.6 billion RMB in the product line, and now is the first and top diesel engine and gas engine product line.
We produced a series multi-point injection electronic control engine and report to the National Development and reform commission, series of engines on the HL. CNG special report on current trends.
Since 2008, the product of HUALING Power Co., Ltd. Enter to the oil industry, develop and produce wellhead gas generating set, now has been widely used in the CBM oil brand and running in the subsidiaries.
