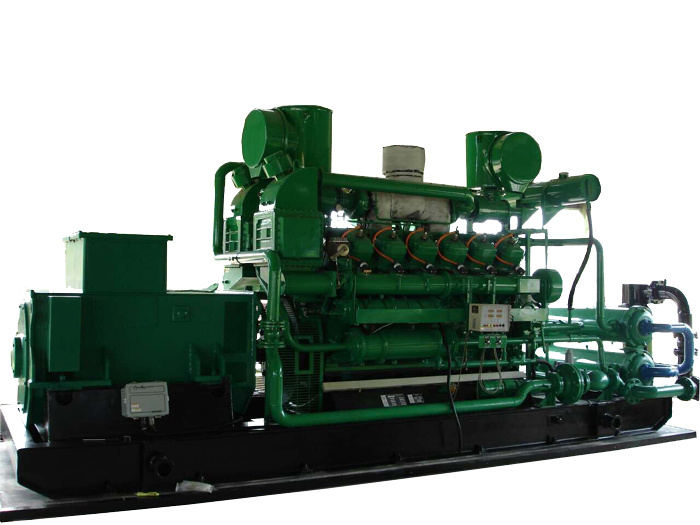

600KW CHP Natural Gas Generators for Electricty Power Plant

Shandong Chaiwei Power Equipment Co., Ltd is a professional gas genset and diesel genset manufacturer with more than 15 years export experience. mainly rate power from 20kw to 1000kw with CE and ISO9001:2008 certificate, OEM and ODM are available.

Natural Gas Generator Set
Natural gas can be used by home application, Electricity generation, industrial chemical and industrial fuel and so on. It is a good substitute of coal and petroleum. It can instead of civil coal gas, it can be used as nitrogenous fertilizer instead of coal and petroleum, it can be used as ethylene of naphtha, it also can be used as the car engine fuel instead of petroleum.

Requirements for Natural Gas Gen-set
Within 1m from pressure valve of gas intake
1. Pressure 80~200Kpa, pressure changing rate≤1kpa/min
2. H2S≤200mg/Nm3
3. CH4 content≥70%, changing rate≤2%min
4. Impurity particle size ≤5μm, Impurity particle content ≤30mg/Nm3
5. Moisture content ≤40g/Nm3

Noted: If fuel gas contains higher quantity of sulfur and ammonia, it not only corrodes the pole of sparking plug seriously, but also increases the acid value, which corrodes internal parts of genset and corrodes the genset with precipitates.

Main Specification

Genset modelCW-600GFT
Engine No.12V190ZLT
Gas mix typeoutside
Rated power600kw
Continuous power500kw
Rated voltage400v/230v
Phase3phase4wire
Rated frequency50Hz
Rated rotation1000r/min
Rated power factor0.8
Rated current1020A
Frequency volatility rate≤0.5%
Voltage regulating rage95-105%
Heat consumption≤11.5mj/kw.h
Lubricant consumption≤1.5g/kw.h
Gas pressure80-200kpa
Cylinder number12 v
Cylinder diameter190mm
Stroke210mm
Compression ratio8:1
Starting mode24V motor
Overhaul time≥25000h
Noise≤105DbB(A)
Intake modesupercharging ,inter cooed
Sparking modesparking plug
Voltage regulation modeautomatic
Speed regulation modeelectric speed regulate
Lubrication modepressure and splash
Cooling modecirculating water cooled
Exhaust temperature≤650ºC
Displacement71.45L
Genset size6000*1970*2735mm

Your Advantages:
1)   High Performance Gas Engine.
2)   Siemens Liuzhou Brushless Alternator.
3)   Steel Base Frame with Shock Absorber
4)   High performance Gas Pressure Regulator FISHER American Brand
5)   Advanced Ignition System Sparking plug STITT American Brand
6)   IMPCO Air-Fuel Mixer Made in USA.
7)   Stable Electronic Speed Governor.
8)   High Performance Flame Arrester.
9)   Safely Explosion-Proof System.
10) MCCB, Radiator Fan, Muffler, Air Filter.
11) Installation Accessories, Tool Kit & Manual Books.
12) Supply silent canopy, Trailer & Container for your option
13) Several gensets can be parallel connection, which can increase the total power range.

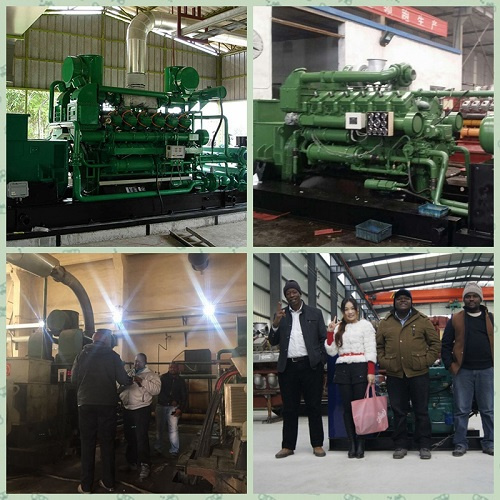

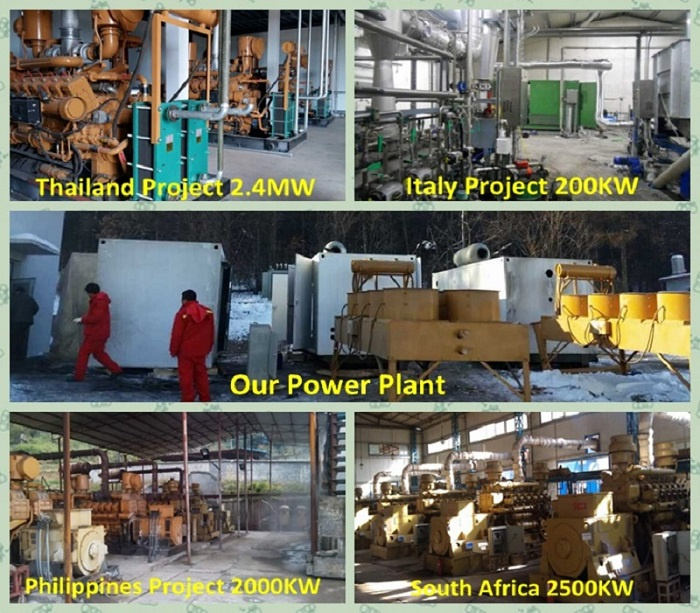

Successful Cases:


OUR SERVICE
We can send our technician to the site to guide you the installation of generator set, subsystem and relative equipment if you need. We will debug the generator set till it can generate power successfully. We will also supply a technical training to the operators. You also can send your staff to our company. We can teach you till you can operate the generator set and during this time we can offer you board and lodging free of charge.

AFTER-SALE SERVICE
1. In our company, different area will be in charged by different people, we will feedback periodically and support you technical service free of charge, include equipment debugging, fault eliminate, technical advice, maintenance assistant, etc.
2. For the quality problem, we will service for you free of charge during the guarantee period.
3. With one year guarantee period, we can service for you all the time.
4. We will give you an effective answer within 4 hours after received your service information and our service staff will come to your site within 4 hours.
5. When fault happens to the generator set, depending on the service principle of solving problem first, trying to recover the generator set as soon as possible then analysis the problem, we handle the quality problem in time. We insure to help our clients to gain the biggest economic profit.
6. We pursue survival with quality, strive for development with reputation. We are willing to build the beautiful future with our customer.



Welcome contact Christina Meng at +86-18261729837

Sincerely welcome to visit our factory and build future cooperation relationship!
Prod Model: CW-600GFT
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Voltage: 230V/400V (Can Be Adjusted)
Output Type: AC Three Phase
Current: 18A to 1080A
Speed: 1500rpm /1200rpm/1000rpm
Frequency: 50Hz/60Hz
Alternator: Leroy Somer, Stamford, Marathon
Control Panel: Deepsea, Smartgen, Harsen
Gas Fuel Type: Biogas/Methane Gas/Natural Gas/CNG/LPG/Biomass Gas
Gas Source: Gas
Certification: BV
Power: 10kw-600kw
Shandong Chaiwei Power Equipment Co., Ltd is a comprehensive high-tech enterprises in China with more than 15 years experiences, focusing on new type of environmental protection generators' development production and sale. We have our own brand "CHARGEWE" generator set, including diesel generator set, biogas generator set, nature gas generator set, biomass generator set, coal gas generator set etc. From 20kw to 1000kw with CE & ISO9001: 2008 certificate, Besides we also offer the diesel engine and spare parts for gas/diesel generator set. Our products have been exported to Middle East, South America, Southeast Asia, Russia, Eastern Europe and have got a high reputation on the domestic and overseas market.

About the products, we have self-developed team to design and improve the generator sets to meet different customers` need. So the OEM and ODM are available. We have completed quality inspection system to make sure each product that customer get is perfect, and the professional after-sale team to guarantee your generator set be correctly installed and running normally. CHARGEWE will bring best products and service with most reasonable price for you. From the foundation of our company, we committed to leading as pioneer of the generator industry and contributing ourselves for China's electricity industry. We believe CHARGEWE will be your best partner in generator area.
