Professional generator OEM factor in guangzhou
. Stock available
. Generator 600kVA
. SGS SONCUP
1. Factory Directly! Professional generator OEM factory Guangzhou
2. Super silent 60dB(A) at 7 meters
3. Certificate: SGS, Soncap approval
4. Super silent brand new Cummins engine/Stamford alternator/auto start
Generator stock 30kVA 15kVA 60kVA 100kVA 150kVA 200kVA Shipping at once.

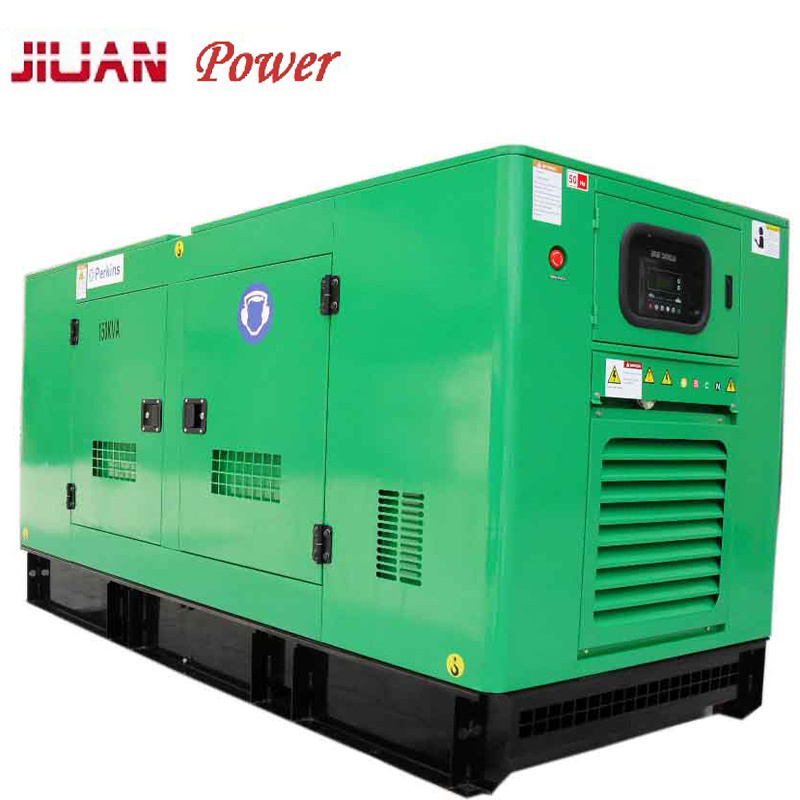

Original Uk Perkins Diesel Generating Set - Model CD-P600KVA
| MODEL | CD-P480KW/600KVA |
| Powered by Original Uk Perkins Engine |
| Prime Power (50HZ) | 480KW/600KVA |
| Standby Power (50HZ) | 528kw/660KVA |
| Power Factor | 0.8 (Lagging) |
| Phase Wires | 3-phases 4-Wires |
| Start Model | Electric |
| Protection | Low oil-pressure, High water temperature,
Over-speed, Over-current |
| Engine Model | Original Uk perkins 2806C-E18TAG1A |
| Cylinders | 6 |
| Cylinder Arrangement | L |
| Bore x Stroke(mm) | 145 x 183 |
| Compression Ratio | 14.5:1 |
| Speed | 1500rpm |
| Cooling Method | Water - cooled |
| Starting Method | 24V DC electrical start |
| Full Load Diesel Consumption (L/H) | 123L |
| Engine Displacement (L) | 18.1L |
| Inspiration (L) | Turbocharged Intercooled |
| Lube Volume (L) | 62L |
| Coolant Volume (L) | 61L |
| Noise (Db) | ≤ 80 |
| Alternator Model | LEADTECH OR STAMFORD 544E |
| Alternator Power | 480kw/600kva |
| Voltage | 220/380 V |
| Protection | IP23 |
| Voltage Regulation | ±4% |
| Insulation Class | H |
| Voltage Control | AVR |
| Net Weigh (KGS) | 4800 |
| Dimensions (L x W x H) mm | 4400*1500*2200MM SILENT |
| Optional | ATS (auto transfer switch) |
| | AUTO Battery Charger |
| | Base Fuel Tank (for open type) |
Features of Gen.set with Perkins Engine
1.12 months world-wide warranty service
2.Short delivery time,as we always have Perkins engine in stock
3.Spare parts are easy to get from worldwide market with much cheaper price
4.Perfect after-sales service network
5.Both 50HZ @1500rpm and 60HZ@1800rpm are available
6.Rigorous test including 50% load,100% load and 110% load
7.High quality;compact design;low noise
8.International brand feel free to use
Standard configuration generator with Perkins engine design:
1.Original UK Perkins engine
2.Alternator coupled with Stamford alternator,Leroy Somer alternator,Marathon alternator,copy Stamford alternator
3.Soundproof canopy, Super silent, open frame, Trailer mounted,Containerized
4.Controller Smartgen 6120 with AMF as standard or Deepsea 6020
5.Circuit breaker CHNT,ABB,Schneider,ASK
6.Base fuel tank 8 hours continuous running for soundproof type, 24 hours continuous running for super silent type.
7.Free-maintenance battery with Auto Battery Charger
8.Industrial silencer each 2 PCS per set with flexible exhaust hose
Alternator Features:
1. World famous brand AC alternator: Stamford, Leroy somer, Marathon, Faraday, copy Stamford
2. Brush less with AVR
3. Brush less 4 poles, rotation magnet
4. AVR Voltage regulation less than ± 1%, AVR self-regulated
5. Protection class IP23
6. Insulation system is class "H"
Control System Features:
Standard Smartgen 6120 or Deepsea DSE6020
Language Display: English; Spanish; Russian; Chinese
Data Display: Power, Voltage, Current, Frequecny, Speed, Oil pressure, Water Temperature, Fuel Level
Protection (auto alarm system): High voltage; Low voltage; High Speed; Low Speed; Over Current; Lose Phase; Low oil pressure; High water temperature
Functions: Auto start; Auto stop; ATS(auto transfer system); AMF(auto mains failure system)
JIUAN Genset testing items:
1. Loading testing: All qualified generator sets are subjected to a comprehensive performance test which includes 0% load, 25% load, 50% load, 100% load and 110% load to check verify that all control systems, alarm and shut-down protection.
2. Parts fault testing.
3. Fuel tank pressure testing.
4. Bolt tightening torque testing.
5. Voltage bearing and insulation testing
6. Noise level testing
3. After-sales Service
1 year or 1800 running hours subject to the earlier one.
24 hours after-sales contact number: 0086 18520604611
4. Terms of Payment
1. T/T
2. Western Union
3. Cash
1. Introduction of Company
Business Type: Manufacturer
Location: Guangzhou, China (Mainland)
Year Established: 2008
Registration No.: 440111000040106
Main Products:
Professional diesel generator OEM factory.
3. Production Line of Product
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 2000kVA
2. Deutz (Germany) 20kVA - 150kVA
3. (UK) 8kVA - 2000kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Lovol (China) 20kVA - 150kVA
6. Yangdong (China) 8kVA - 50kVA
7. Weichai (China) 8kVA - 150kVA
8. Shanghai Engine
9. Yuchai Engine
10. KUBOTA Engine 10kVA - 50kVA
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
* Alternator for Choice (brushless with AVR)
1. Stamford Newage
2. Leroy Somer
3. Marathon
4. Leateck
4. Where Our Generator Used for?
Home, Factory, Hotel, Restaurant, Building site, Super market, Hospital etc
5. Why Choose Us?
Good Reasons Why You Choose JIUAN Generator:
1. Professional Generator OEM factory in Guangzhou.
2.14 years experience in generator and exporting.
3. High quality products at affordable prices.
4. Products lines verified by professional inspectors.
5. Place orders safety.
6. All engines and alternators are brand new and original - Credible.
7. Controller Deepsea or Smartgen -BIG Brand.
8. Air Breaker ABB CHNT Schneider ASK - Safety.
9.1% parts free are available for your order.
6. Welcome to contact us
Www.Jiuan-power.Com
| Diesel Generator Set 600KVA |
Generator
Specifications | Generator Model | CD-P45kva |
| Generator Prime Power | 480kw/600kva |
| Generator Standby Power | 528kw/660kva |
| Generator Engine Model | UK perkins 2806c-e18TAG1A |
| Generator Alternator | Stamford;Marathon;Leroy Somer;Faraday;Stamford copy |
| Canopy for Choice | Super silent;Silent;Open frame;Trailer |
| Controller | Smartgen or Deepsea |
| Dimensions (L*W*H) | 4400*1500*2200MM (S) |
| 20FT/40HQFT Container | 4PCS |
| Generator Warranty | 1800 hours or 1 year subject to the ealier one. |
| Generator MOQ | 1PCS |
| Certificate | SGS;Cummins Authorized Factory;TUV;Soncap |
| Payment | T/T or Cash |
| Please give detail needs in your inquiry, so that we can make power solutions for you. |
Guangzhou Jiuan Mechanical & Electrical Co., Ltd. is a professional generator manufacturer and exporter with generator capacity from 2kVA to 2000kVA. Generator can be powered by Cummins, Perkins, ISUZU, KUBOTA and Chinese engine. Welcome to chose our products and don' T hesitate to contact us.
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 1500kVA
2. Perkins (UK) 8kVA-1000kVA
3. Deutz (Germany) 20kVA - 150kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Kubota (Japanese) 7kVA-50kVA
6. Lovol (China) 20kVA - 150kVA
7. Yangdong (China) 8kVA - 40kVA
8. Weichai (China) 8kVA - 150kVA
9. Shanghai Engine
10. Yuchai Engine
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
* Alternator for Choice
1. Stamford
2. Leroy Somer
3. Marathon
* Controller
1. Smartgen
2. Deepsea (UK Brand and imported)
