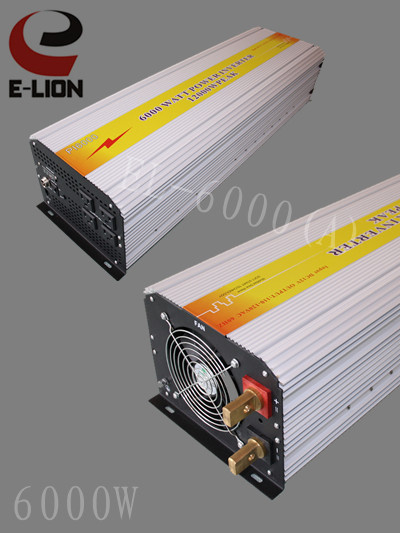

Product name: 6000W power inverter
Continuous Power: 6000W
Max power: 6100W
Peak Power: 12000W
Output Waveform: Modified Sine Wave
Efficiency(full load): 85%
Input Voltage: DC 12V or DC24V
Input Voltage regulation: DC 10-15V or DC 20-30V
No load current: <1 A
Output Voltage: 110-120VAC
Output Frequency: 60Hz ± 2Hz
Fuse(s): 540A of blade fuse(DC12V) or 320A of Blade fuse(DC24V)
Protections Overload shut off: 6100W
Low voltage shut off
( battery low): 9.8-10.0Vdc (DC12V)
(battery low): 20-21Vdc (DC24V)
Over voltage shut off: 15.2-15.6Vdc (DC12V)
30-31Vdc(DC24V)
Output short: Automatically shut off
Over temperature shut off: 65-70 Celsius degree
DC5V USB No
Soft start technology Yes
Installed cooling fan Yes
Output AC receptacle(s) Four 3 prong flat pin sockets
Additional functions with digital indicator of input Voltage and Output Power.
with ON/OFF wire or wireless Remote.
Standard accessories Two sets of red and black cables with brass terminals, cable length: 60CM
A remote control kit
A user manual
Operation temperature -20Celsius degree ~40Celsius degree
Net Weight(incl. Accessories) 14.5kgs(31.97Ibs)
Product Dimension 71X19.5X16CM
Package gift box
FENGHUA E-LION ELETRONICS Co., Ltd is located in Ningbo-the most open-up city in east China. Our company is focusing on manufacturing the modified sine wave and pure sine wave power inverters as well as solar power system. We have the professional engineering groups who have ten years of industry experience.
For Power inverters series, we are now manufacturing a wide range of modified sine wave power inverters range from 70 watts to 6000 watts as the output continuous power. For the small power inverters, we have new compact designs. Most of our small power inverters (power less than 1000W), we add DC5V USB as a bonus. For most items, we are adding the digital indicator of OUTPUT POWER and INPUT DC on inverter endplates. For some higher power inverters of more than 1000W, our customer can choose them with the function of wire or wireless switch remote control.
At present, most of our products have the CE, E-MARK, PAHs and ETL approvals. Now, our clients are worldwide.
Our motto: Customers are not only our buyers but also our partners!
