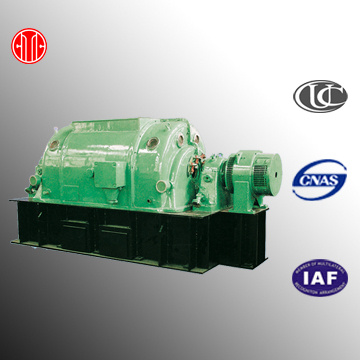

6000kw Generator Sets Generator Turbine Made in China
CITIC HIC Luoyang Generating Equipment Co., Ltd. is a professional steam turbine manufacturer with more than 40 years history. With the output range from 1MW to 60MW, our products includes back pressure turbine, condensing and extraction condensing steam turbine, widely applied in industrial mechanical driving and power generation.
|

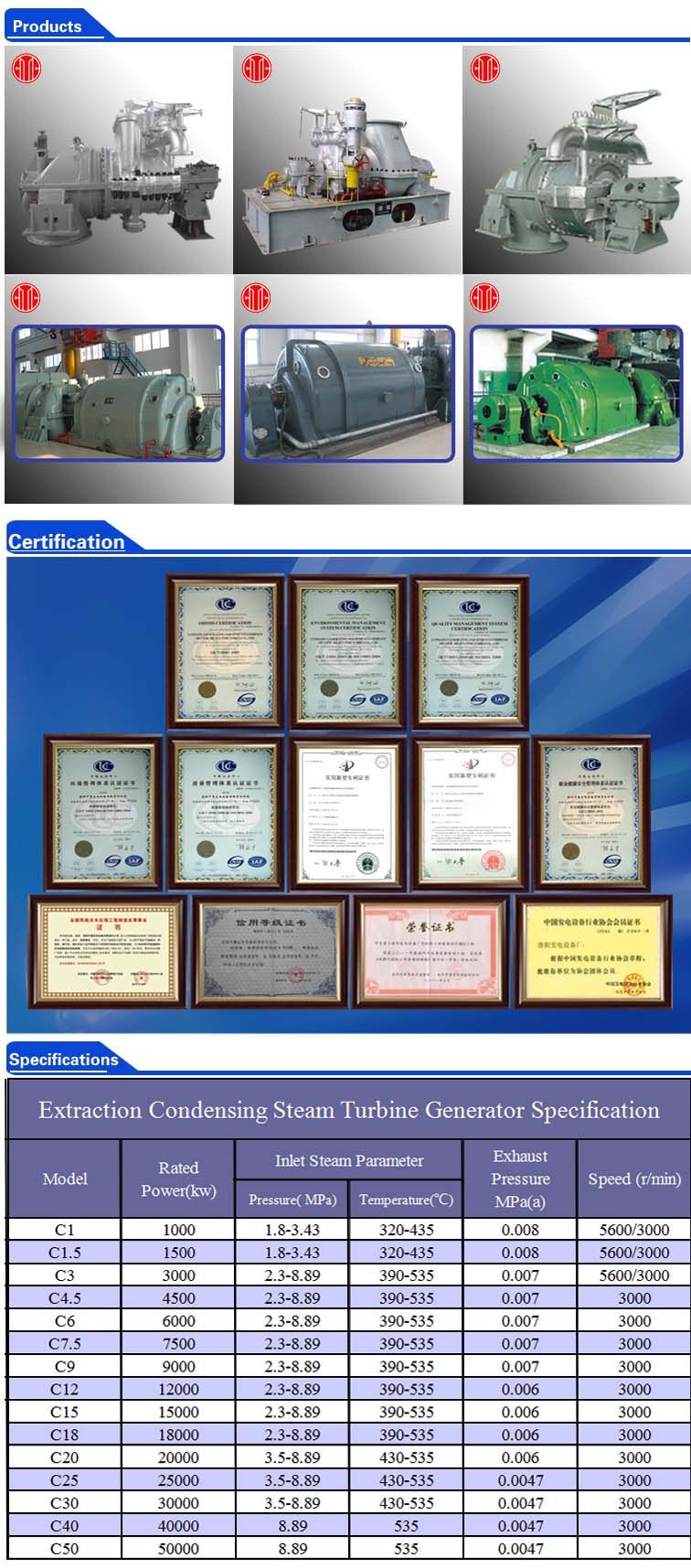

Extraction Condensing Steam Turbine Generator Power |
|
Model |
Rated output KW |
Inlet Steam Parameter |
Exhaust Pressure MPa(a) |
Rated Speed (r/min) |
|
Pressure MPa(a) |
Temperature (degree) |
|
C1 |
1000 |
1.8-3.34 |
320-435 |
0.008 |
5600/3000 |
|
C1.5 |
1500 |
1.8-3.34 |
320-435 |
0.008 |
5600/3000 |
|
C3 |
3000 |
2.3-8.89 |
390-535 |
0.007 |
5600/3000 |
|
C4.5 |
4500 |
2.3-8.89 |
390-535 |
0.007 |
3000 |
|
C6 |
6000 |
2.3-8.89 |
390-535 |
0.007 |
3000 |
|
C7.5 |
7500 |
2.3-8.89 |
390-535 |
0.007 |
3000 |
|
C9 |
9000 |
2.3-8.89 |
390-535 |
0.007 |
3000 |
|
C12 |
12000 |
2.3-8.89 |
390-535 |
0.006 |
3000 |
|
C15 |
15000 |
2.3-8.89 |
390-535 |
0.006 |
3000 |
|
C18 |
18000 |
2.3-8.89 |
390-535 |
0.006 |
3000 |
|
C20 |
20000 |
3.5-8.89 |
430-535 |
0.006 |
3000 |
|
C25 |
25000 |
3.5-8.89 |
430-535 |
0.0047 |
3000 |
|
C30 |
30000 |
3.5-8.89 |
430-535 |
0.0047 |
3000 |
|
C40 |
40000 |
8.89 |
535 |
0.0047 |
3000 |
|
C50 |
50000 |
8.89 |
535 |
0.0047 |
3000 |

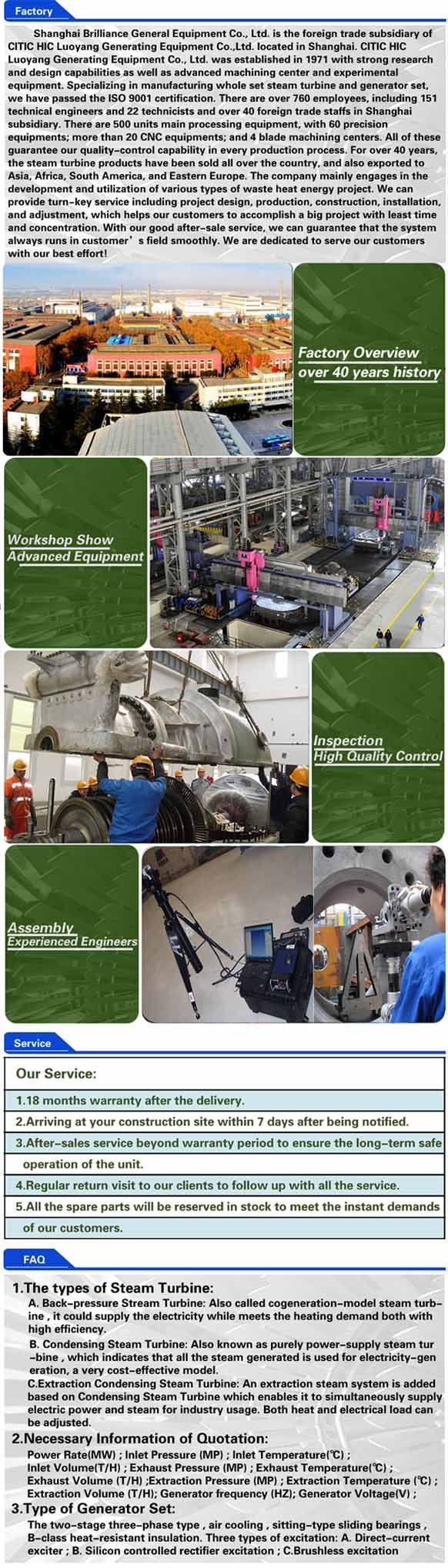

Shanghai Brilliance General Equipment Co., Ltd. is the foreign trade subsidiary of CITIC HIC Luoyang Generating Equipment Co., Ltd...CITIC HIC Luoyang Generating Equipment Co., Ltd. Was established in 1971 with strong research and design capabilities as well as advanced machining center and experimental equipment. Specializing in manufacturing the whole set steam turbine and generator set, we have passed the ISO 9001 certification.
There are over 760 employees, including 151 technical engineers and 22 technicians combined with over 40 foreign trade staffs in Shanghai subsidiary. There are 500 units main processing equipment, with 60 precision equipments; More than 20 CNC equipments; And 4 blade machining centers. All of these guarantee our quality-control capability in every production process.
For over 40 years, our steam turbines have been sold all over the country, and exported to Asia, Africa, South America, and Eastern Europe.

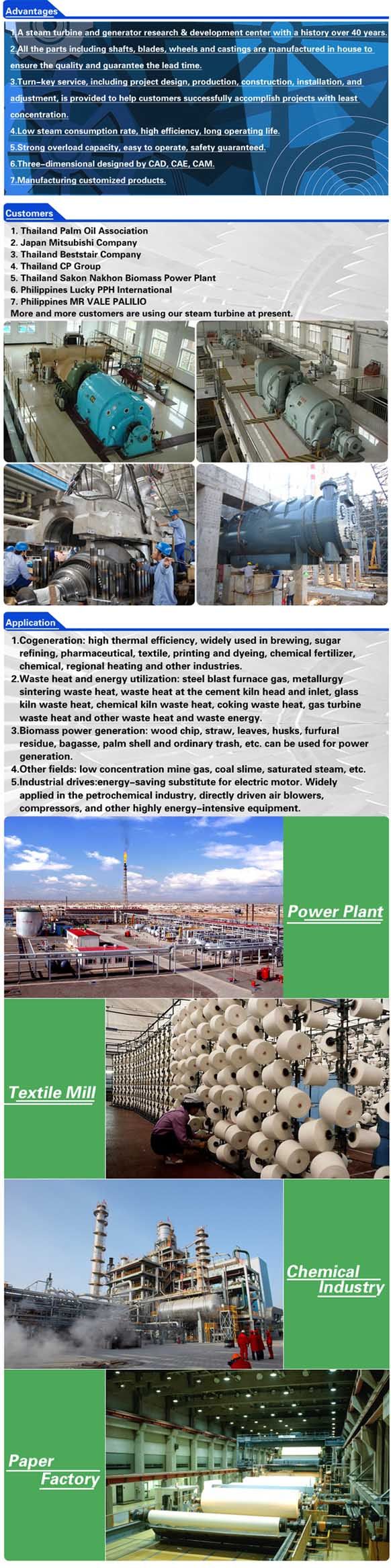

Now, we specialize in the researching and manufacturing power generation steam turbine and dragging-type steam turbine ranges 1-60 MW, including Condensing, Back Pressure, Extraction Condensing types, serving for many different industries like Textile, Chemical, Paper making, Food & Sugar, ects. The company mainly engages in the development of various types of waste heat energy project.
We can provide turnkey service including project design, production, construction, installation, and adjustment, which helps our customers accomplish the whole project with least time and concentration. 18months warranty is guaranteed with in-time after service.
We are dedicated to serving our customers with our best effort!
